Edwards EXC 100L - REBUILT

Call for Price

In stock
Height 210 mm
Width 132 mm
Length 380 mm
Weight 20 lbs

Edwards EXC 100L Turbomolecular Vacuum Pump Frequency Converter

View our inventory of Edwards turbo pumps.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Ambient operating temperature range

0 to 40 °C

Ambient storage temperature range

-20 to 70 °C

Maximum ambient operating humidity

10 to 95% RH (non-condensing to DIN 40040)

Maximum operating altitude

3000 m


Natural convection

Electrical supply



90 to 264 V a.c., single-phase


47 to 63 Hz

Maximum input power

220 VA

Peak inrush current

11 A at 110 V a.c.

40 A at 240 V a.c.

Fuse rating

2 A, type T 20 mm

Over-voltage transients

IEC664, category 2

Radiated electromagnetic emission


Electromagnetic immunity


Compatible EXT pumps

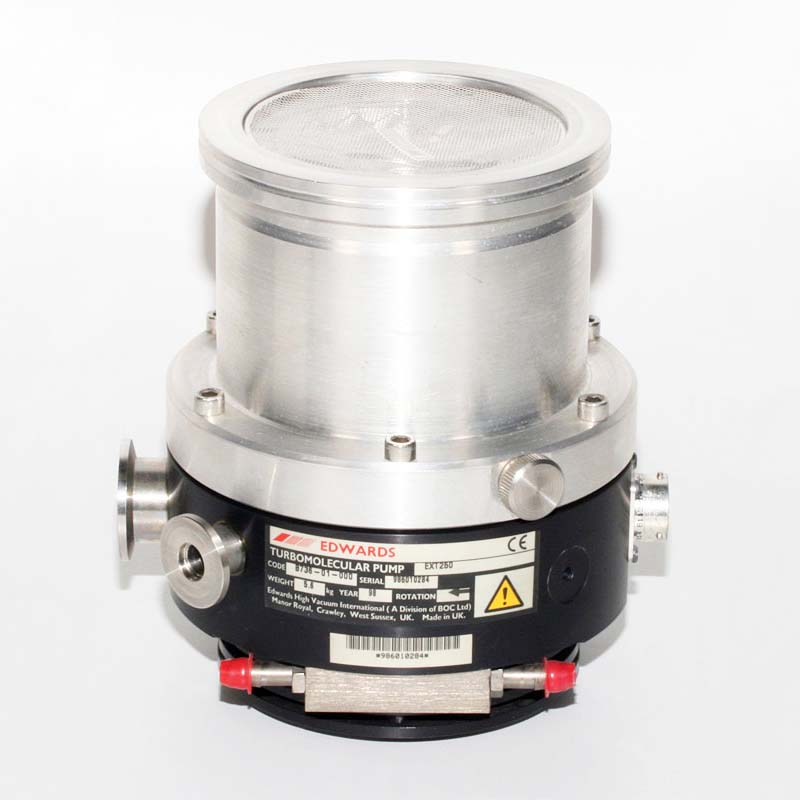

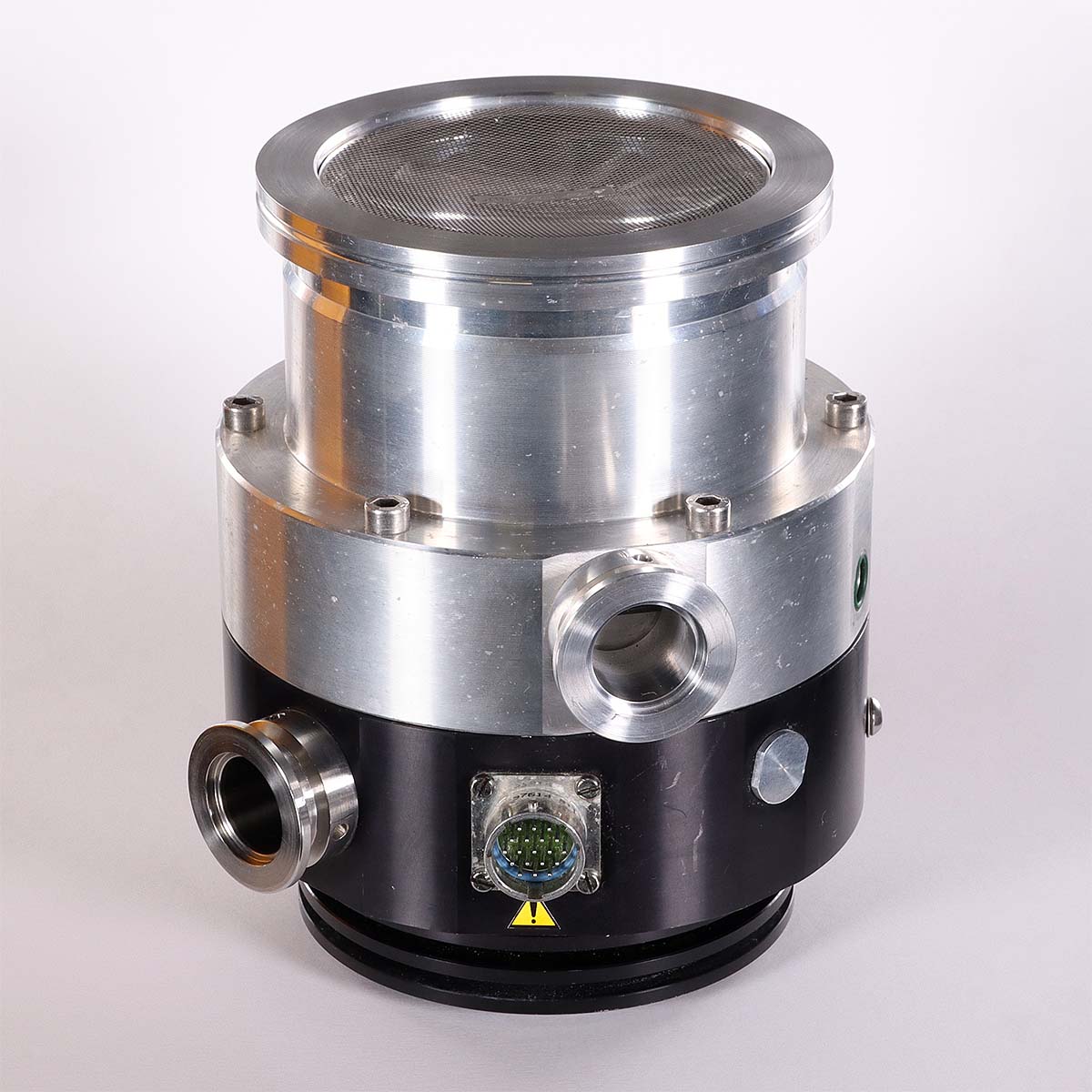

EXT70, EXT250, EXT351

Maximum continuous output power

80 W

Maximum output voltage

53 V a.c. r.m.s.

Switching frequency

32 kHz

Nominal output frequency

600 Hz to 1.5 kHz

Maximum output frequency

1.07 x nominal

Standby frequency

70% of nominal

Normal speed


Internal Timer

8 min, enabled

Analogue output

Speed output

Type Label Description Download
BOC Edwards EXC100E & EXC100L - REBUILT Instruction Manual Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards EXC 100L Turbomolecular Vacuum Pump Frequency Converter
