Agilent IDP-15 - NEW
| Weight | 118 lbs |
|---|---|
| Pumping Speed | 7.5 cfm |
| Ultimate Pressure | 1.3 x 10-2 mbar |
Agilent IDP-15 Dry Scroll Vacuum Pump - NEW
The Agilent IDP-15 dry scroll pump is a high performance dry primary vacuum pump, providing rapid pump-down at 15.4 m3/hour (60 Hz). With a single-sided scroll design it offers fast, easy yearly maintenance and low cost of ownership. It is hermetic, with the motor and all bearings completely isolated from the vacuum path and protected from process gases for extended life.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Peak pumping speed | 60 Hz: 256 L/min (15.4 m3/h) 50 Hz: 214 L/min (12.8 m3/h) |
| Media | No corrosive, explosive or particulate forming gases |
| Ultimate pressure | 1.3 x 10-2 mbar (1 x 10-2 Torr) |
| Max. inlet pressure | 1.0 atmosphere (0 psig) |
| Max. recommended continuous inlet pressure | 200 mbar (150 Torr) |
| Max. outlet pressure at nom voltage | 1.4 atmosphere (6.5 psig) |
| Inlet connection | NW25 |
| Exhaust connection | Female 0.25 inch, national pipe thread, (NW16 adapter provided) |
| Gas ballast | Female 0.25 inch, national pipe thread, (two positions) |
| Water vapor handling per Pneurop 6602 |
Gas ballast position 1: 20.7 grams/hr Gas ballast position 2: 235 grams/hr |
| Ambient operating temperature | 5 to 45°C (41 to 113°F) |
| Storage temperature | –20 to 60°C (–4 to 140°F) |
| Motor rating | 0.75 hp (560 W) |
| Operating voltages |
100 VAC, 50/60 Hz 115 VAC, 60 Hz 220-230 VAC, 50/60 Hz |
| Motor thermal protection | Automatic thermal protection |
| Operating speed | 60 Hz: 1,725 rpm; 50 Hz: 1,450 rpm |
| Cooling system | Air-cooled |
| Weight | Pump only: 34 kg (75 lbs), 54 kg (118 lbs) |

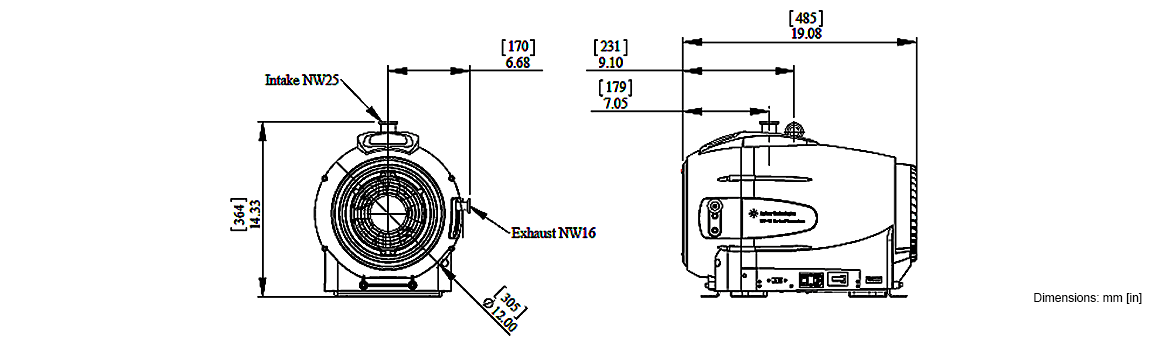

| Dimensions (H x W x L mm) | 364 x 333 x 485 |
| Leak rate (with exhaust sealed) | < 1 x 10-6 sccs (1 x 10-6 mbar.l/s) |
| Noise level | 50 +/- 2 dB (A) |
| Vibration level at inlet | < 9 mms-1 rms |
| Hour meter | Integral hour meter provided |
| Emissions and immunity | EN 61236-1:2013 as a Class A device |
| Safety | EN/IEC 61010 3rd Edition certified |
| Type | Label | Description | Download |
|---|---|---|---|
|
Agilent IDP-15 - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent IDP-15 Dry Scroll Vacuum Pump - NEW X3815-64000 Std X3815-64010 Std w/ inlet valve
