Agilent IDP-7 - REBUILT
Call for Price
Out of stock
SKU
REBUILT_IDP7
Weight | 62 lbs |
---|---|
Motor Power | 0.38 hp |
Pumping Speed | 9.1 m3/h |
Ultimate Pressure | 2.6 x 10-2 mbar |

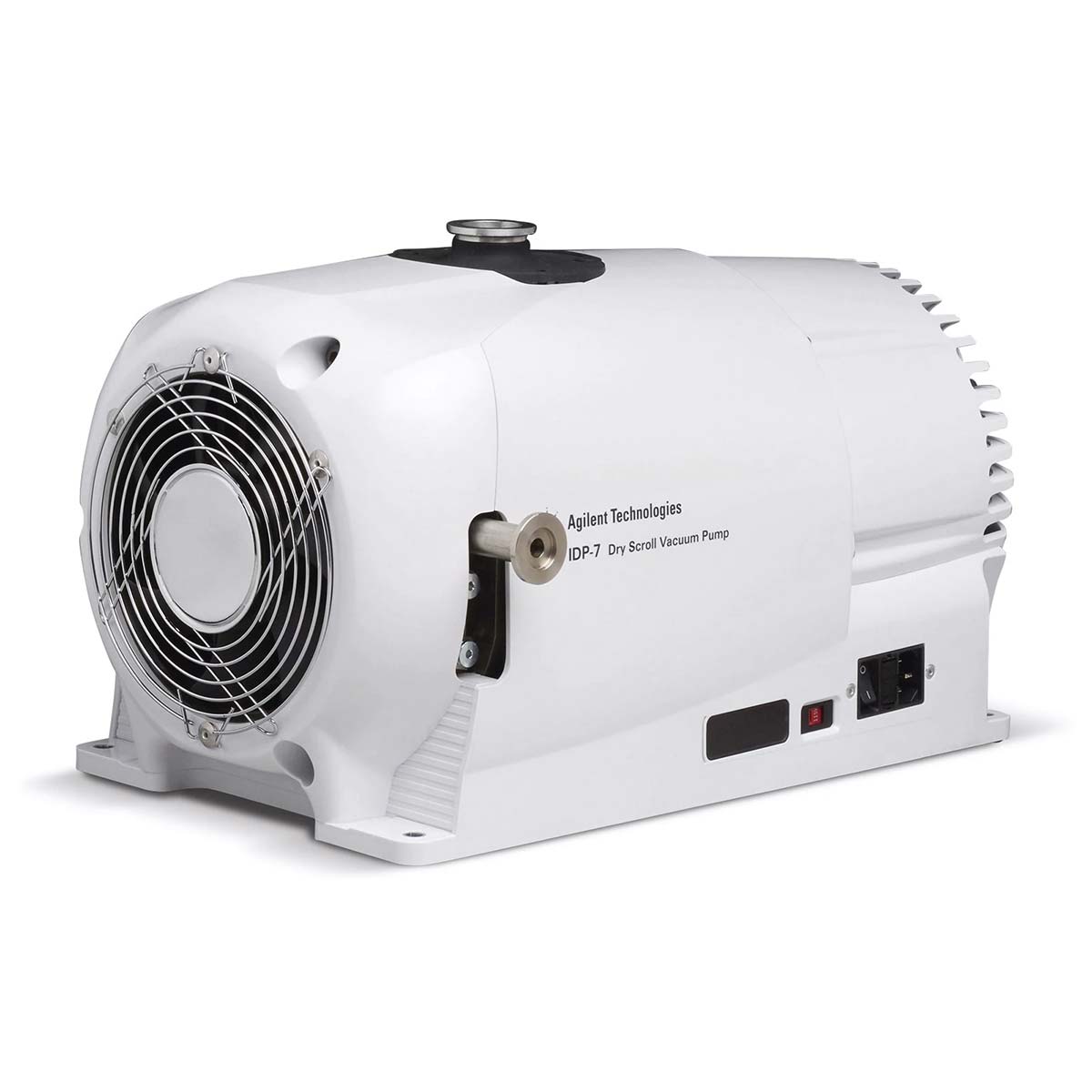

Agilent IDP-7 Dry Scroll Vacuum Pump - REBUILT
These Agilent IDP pumps are sold rebuilt and come with a one year warranty. The warranty does not cover tip seal maintenance. For example, per OEM specs, scroll pump tip seals must be replaced every 8,000 hours, or slightly less than 11 months, to maintain good base pressure.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
Peak pumping speed | 60 Hz: 152 L/min (9.1 m3/h) 50 Hz: 120 L/min (7.2 m3/h) |
Media | No corrosive, explosive or particulate forming gases |
Ultimate pressure |
60 Hz: 2.6 x 10-2 mbar (2.0 x 10-2 Torr) 50 Hz: 4.0 x 10-2 mbar (3.0 x 10-2 Torr) |
Max. inlet pressure | 1.0 atmosphere (0 psig) |
Max. recommended continuous inlet pressure | 200 mbar (150 Torr) |
Max. outlet pressure at nom voltage | 1.34 atmosphere (5 psig) |
Inlet connection | NW25 |
Exhaust connection | NW16 |
Gas ballast | Female, 0.25 inch, national pipe thread, (20 µm sintered plug provided) SAE-2 5/16-24 |
Water vapor handling per Pneurop 6602 | 120 grams/hr maximum |
Ambient operating temperature | 5 to 40°C (41 to 104°F) |
Storage temperature | –20 to 60°C (–4 to 140°F) |
Motor rating | 0.38 hp (300 W) |
Operating voltages | 100-120; 200-240 VAC, 50/60 Hz, single-phase, 3 to 6A typical |
Motor thermal protection | Automatic thermal protection |
Operating speed | 60 Hz: 1,750 rpm; 50 Hz: 1,450 rpm |
Cooling system | Air-cooled |
Weight | Pump only: 24.5 kg (54 lbs), shipping weight: 28.1 kg (62 lbs) |

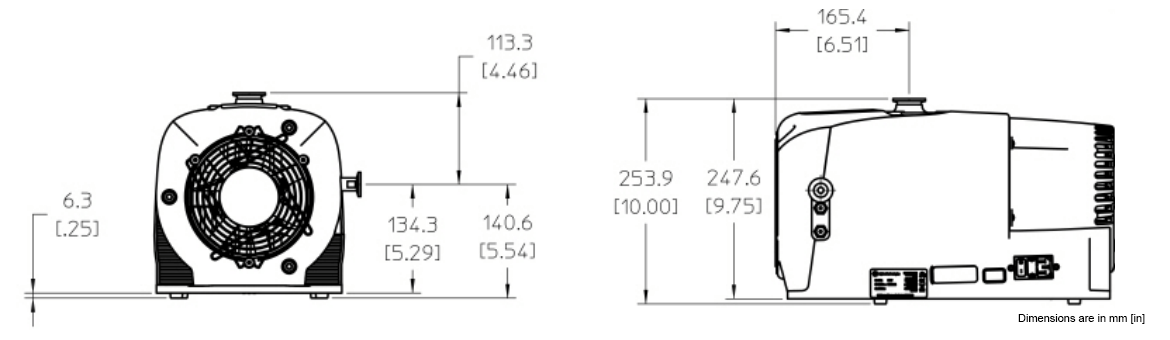

Dimensions (H x W x L mm) | 254 x 260 x 420 |
Leak rate (with exhaust sealed) | < 1 x 10-6 sccs (1 x 10-6 mbar.l/s) |
Noise level | 52 +/- 2 dB (A) |
Vibration level at inlet | 7 mms-1 rms |
Hour meter | Integral hour meter provided |
Emissions and immunity | EN 61236-1:2013 as a Class A device |
Safety | EN/IEC 61010 3rd Edition certified |
Specifications
Type | Label | Description | Download |
---|---|---|---|
Agilent IDP-7 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent IDP-7 Dry Scroll Vacuum Pump - REBUILT X380764000 / X3807-64000 IDP-7 standard X380764010 / X3807-64010 IDP-7 standard w/ inlet isolation valve
