Varian Turbo-V 300HT - REBUILT
Starting at
$4,925
In stock
Only %1 left
SKU
REBUILT_TurboV300HT
| Weight | 18 lbs |
|---|---|
| Pumping Speed | 250-280 l/s |
| Ultimate Pressure | <2 x 10-10 mbar |
Agilent Varian Turbo-V 300HT Turbomolecular Vacuum Pump - REBUILT

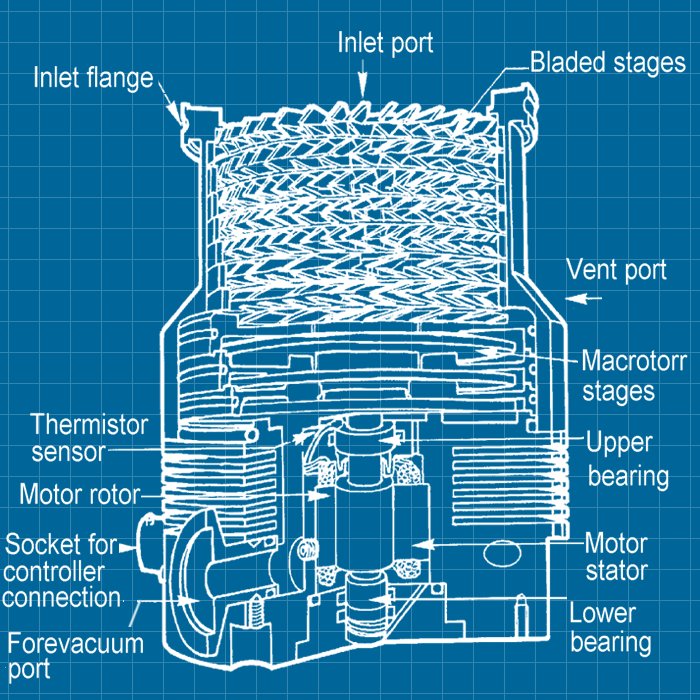

The Agilent Varian Turbo-V Macro Torr pump is capable of operating at high foreline pressures because of the high speed to compression ratio. These pumps have silicon nitride, ceramic bearings.

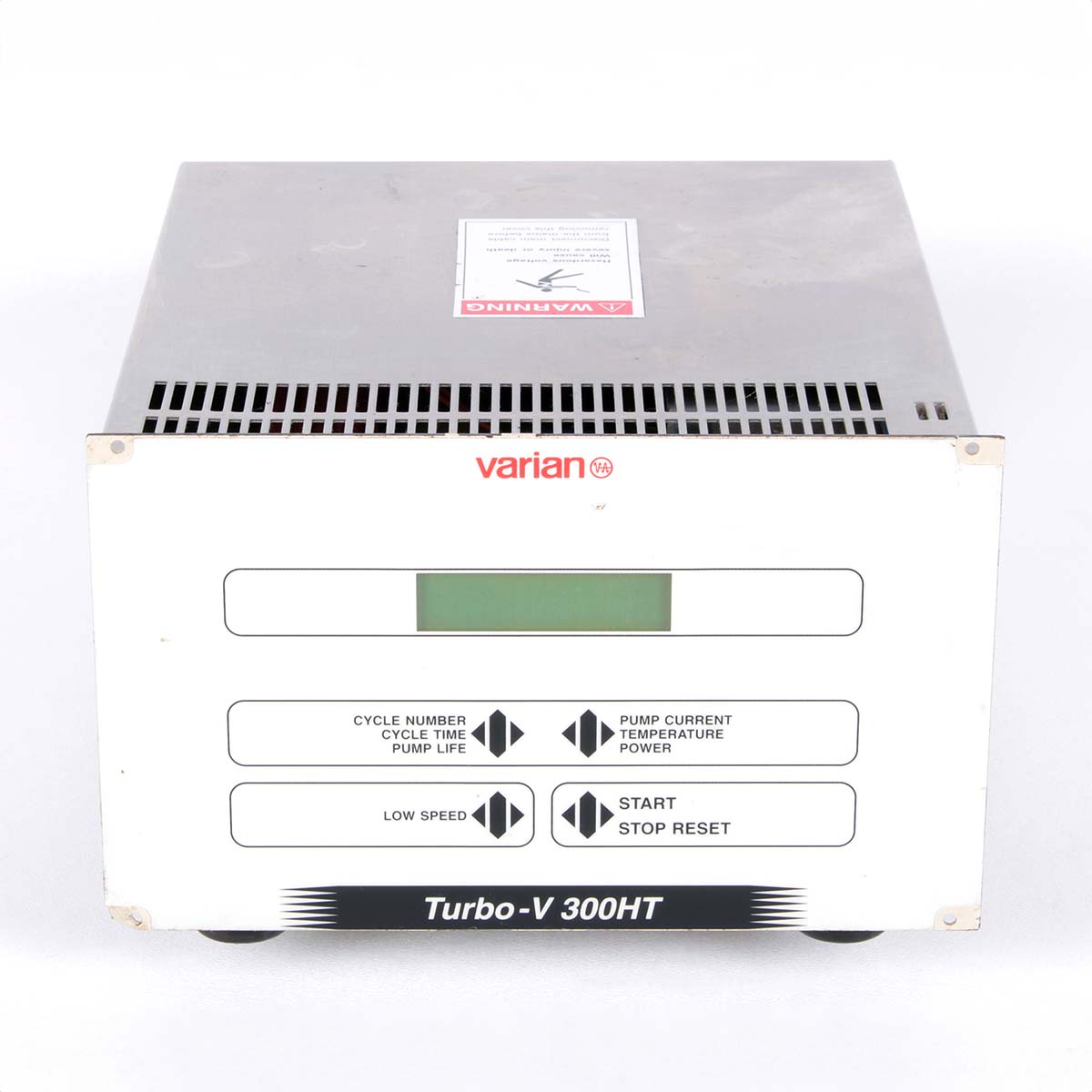

Each turbo pump must match its controller in reference to the same class. For example the TV 550 pump must match a V550 (stand alone, brick or PCB) controller. View our inventory of Agilent Varian turbo controllers. We also offer repair service.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed l/s | DN 160 - N2: 280, He: 230, H2: 210 DN 100 - N2: 250, He: 220, H2: 200 |
| Compression ratio | N2: 2 x 108, He: 1 x 105, H2: 1 x 104 |
| Base pressure | with recommended mechanical forepump: 2 x 10-10 mbar (1.5 x 10-10 Torr) with recommended diaphragm forepump: 2 x 10-8 mbar (1.5 x 10-8 Torr) |

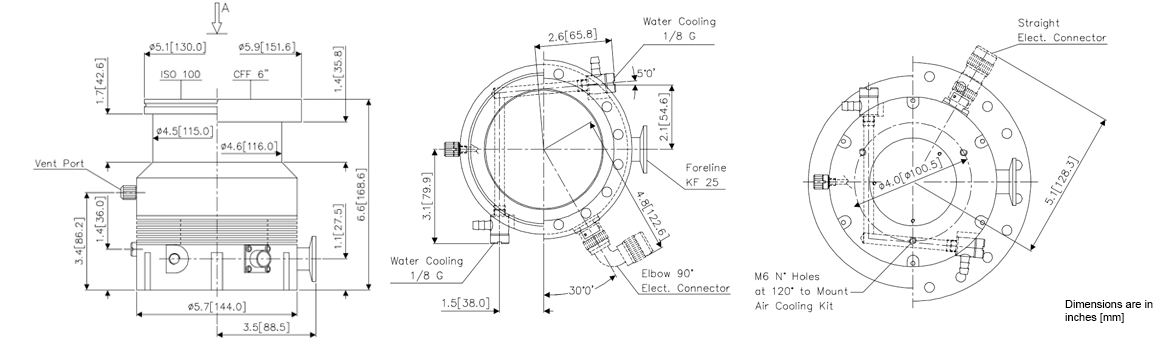

| Inlet flange | DN 160 ISO DN 160 CFF (8 in. OD) DN 100 ISO DN 100 CFF (6 in. OD) |
| Foreline flange | NW-25 KF |
| Rotational speed | 56,000 rpm |
| Startup time | < 3 min |
| Recommended forepump | Two-stage rotary pump: SD 300 Diaphragm pump: MD 60 |
| Operating position | Any |
| Cooling requirements | Forced air, water optional |
| Bakeout temperature | 120°C at inlet flange (CFF version) |
| Vibration level (displacement) | < 0.01 μm at inlet flange |
| Weight lbs. (kg) | ISO: 10 (4.5); CFF: 17.6 (8) |
| Type | Label | Description | Download |
|---|---|---|---|
|
Varian Turbo-V 300HT - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbo-V 300HT Turbomolecular Vacuum Pump - REBUILT 9699038 / 969-9038 6" CF 9699039 / 969-9039 ISO-160 9699040 / 969-9040 8" CF 9699037 / 969-9037 ISO-100 9699369 / 969-9369 TV 150HT ISO-63
