Agilent Varian Turbo-V 3K-T Controller - REBUILT
Call for Price
In stock
SKU
REBUILT_TurboV3KT

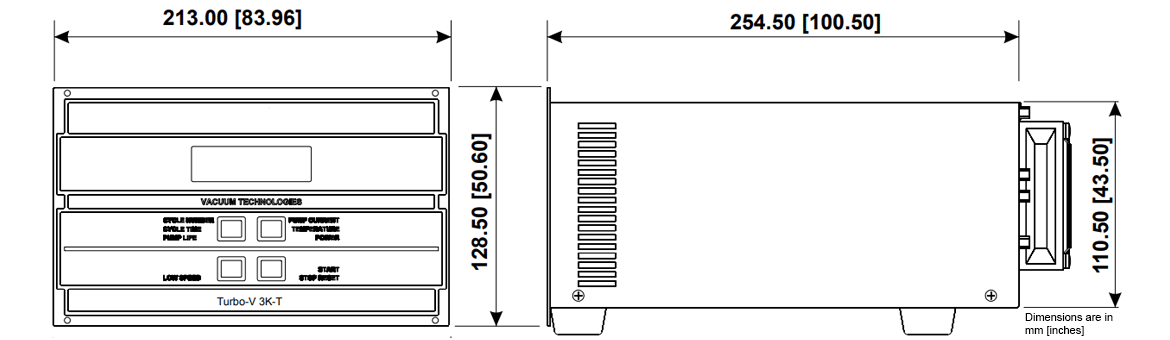

| Height | 128.50 mm |
|---|---|
| Width | 213 mm |
| Length | 254.50 mm |
| Weight | 23 lbs |
Agilent Varian Turbo-V 3K-T Turbomolecular Vacuum Pump Controller
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Input voltage | 100, 120, 220, 240 VAC, 1-phase |
| Frequency | 50 to 60 Hz |
| Power | 1,300 VA maximum |
| Output voltage | 64 VAC |
| Frequency | 530 Hz |
| Power starting | 560 W maximum |
| Power normal | 450 W maximum |
| Operating temperature | 0°C to +40°C |
| Storage temperature | -20°C to +70°C |
| Fuse (mains) | 2 x T5A (slow blow) for 220 or 240 input voltage 2 x T10A (slow blow) for 100 or 120 input voltage |
| P1 optoisolator input | Minimum ON 3mA Maximum 5mA |
| J2 optoisolator output | 24 VDC, 60 mA |
| In compliance with norms | EN 61010-1 EN 61326-1 EN 55011 class A group 1 EN 6100-4-2 EN 6100-4-3 EN 6100-4-4 EN 6100-4-5 EN 6100-4-6 EN 6100-4-8 EN 6100-4-11 EN 6100-3-2 |
| Max altitude | 3,000 m |
| Max line voltage variation | ±10% |
| Internal use only | |
| Installation category | II |
| Pollution degree | 2 |
| Weight | 10 kg (22.4 lbs) |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Agilent Turbo-V 3K-T Rack Controller - REBUILT | User Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbo-V 3K-T Turbomolecular Vacuum Pump Controller 8699547 / 869-9547 120 V 8699447 / 869-9447 220 V EX8699547 / EX869-9547
