Agilent Varian Turbo-V 701 Navigator - REBUILT
Out of stock
Only %1 left
SKU
REBUILT_TurboV701
| Weight | 54 lbs |
|---|---|
| Pumping Speed | 510-690 l/s |
| Ultimate Pressure | < 1 x 10-10 mbar |

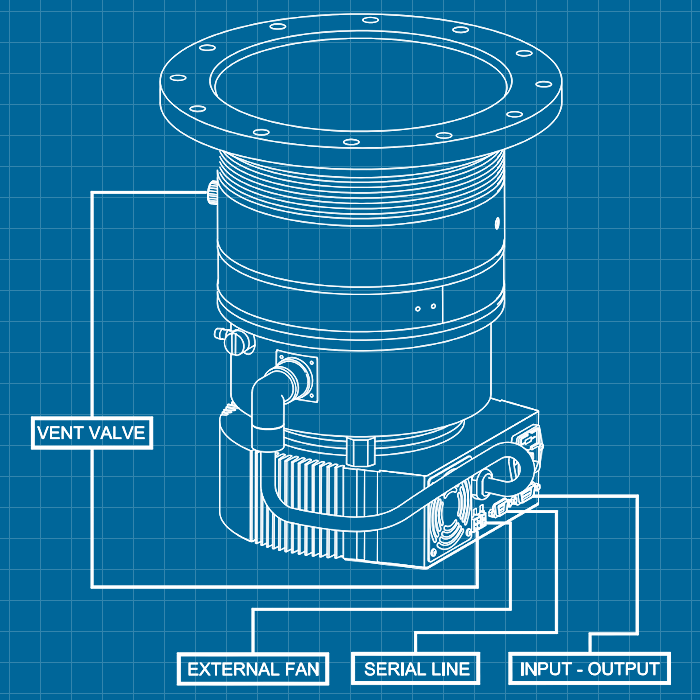

Agilent Varian Turbo-V 701 Navigator Turbomolecular Vacuum Pump - REBUILT
The Agilent Varian Turbo-V Macro Torr pump is capable of operating at high foreline pressures because of the high speed to compression ratio. These pumps have silicon nitride, ceramic bearings.
Each turbo pump must match its controller in reference to the same class. For example the TV 550 pump must match a V550 (stand alone, brick or PCB) controller. View our inventory of Agilent Varian turbo controllers. We also offer repair service.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed 10” CF or ISO-200: | N2: 690 l/s | He: 620 l/s | H2: 510 l/s |
| Compression ratio | N2: 1 x 109 | He: 1 x 107 | H2: 1 x 106 |
| Base pressure (with minimum recommended forepump) |
< 1 x 10-10 mbar (< 1 x 10-10 Torr) | ||

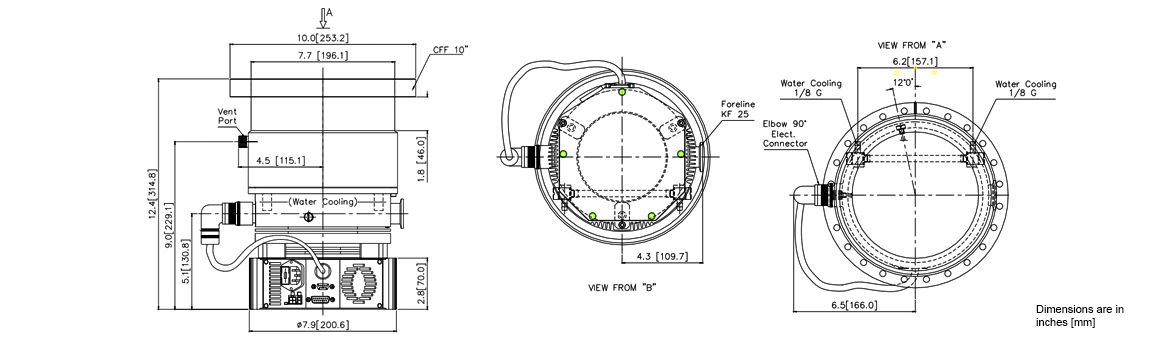

| Inlet flange | 10” CF / ISO-200 / ISO-200F bolted | ||
| Foreline flange | KF-25 | ||
| Rotational speed | 42,000 rpm | ||
| Start-up time | < 5 minutes | ||
| Recommended forepump | Mechanical: Varian DS 402 Dry scroll: Varian TS300 |
||
| Operating position | Any | ||
| Cooling requirements | Natural air convection Water optional (use water with electrical conductivity ≤ 500 μS/cm) |
||
| Bakeout temperature | 120°C at inlet flange max. (CF flange) 80°C at inlet flange max. (ISO flange) |
||
| Vibration level (displacement) | < 0.01 μm at inlet flange | ||
| Weight (lbs) kg
|
ISO flange 19.4 (43.0) CF flange 25.5 (54.2) CF and ISO bolted flange 25.5 (54.2) |
||
| Type | Label | Description | Download |
|---|---|---|---|
|
Varian TV 551/701 Navigator - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbomolecular Vacuum Pump - REBUILT Turbo-V 701 Navigator 9698836 / 969-8836 complete system, ISO-200 9698837 / 969-8837 complete system, 10"" CF 9698926 / 969-8926 ISO-200 9698945 / 969-8945 ISO-200F bolted 9698927 / 969-8927 10"" CF 9698843 / 969-8843 TV 702 SEM 8698938 / 869-8938 ISO-200K high vacuum flange 8698938R001 / 869-8938R001 ISO-200F 8698938R002 / 869-8938R002 ISO-160F 8698938R003 / 869-8938R003 ISO-160K TV 701SEM 8698938R004 / 869-8938R004 8698938R005 / 869-8938R005 ISO-200 TV 700HT 9699057 / 969-9057 ISO-200 9699058 / 969-9058 10"" CF
