Varian Turbo-V 80 Controller - REBUILT
Call for Price

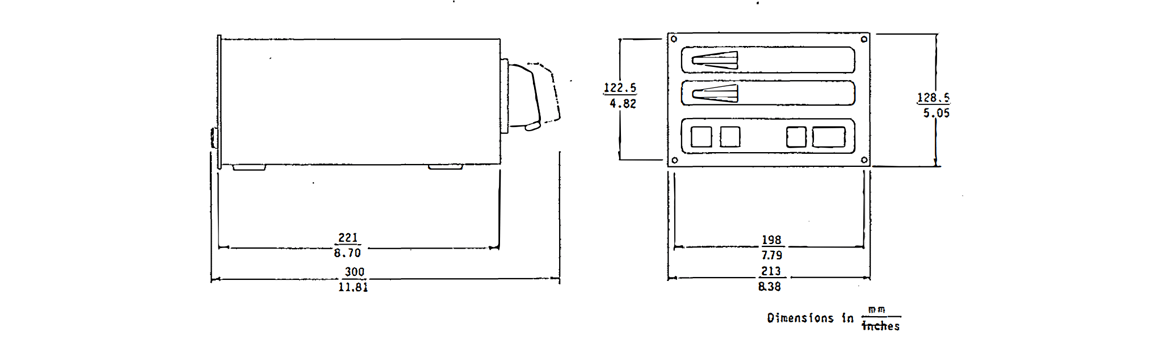

| Height | 128.50 mm |
|---|---|
| Width | 213 mm |
| Length | 221 mm |
| Weight | 14 lbs |
Agilent Varian Turbo-V 80 Turbomolecular Vacuum Pump Controller
The Turbo-V controllers are frequency converters with self diagnostic and protection features. The half rack unit has a multifunction alphanumeric display for pump status and error code diagnostics. It displays rotational speed as the pump starts up and indicates when full speed is reached. At any time during the operation of the pump, the speed, current, power, and bearing temperature can be displayed. Its microprocessor acts as a pump cycle log, and can display the number of vacuum cycles, the cycle time for the current cycle, and the total operating hours on the pump.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Input voltage | 100, 120, 220, 240 VAC ±10%, 1-phase |
| Frequency | 47 to 63 Hz |
| Power | 680 VA maximum |
| Output voltage | 54 VAC ±3% 3-phase |
| Frequency | 1,000 Hz ±2% |
| Power | 560 W maximum |
| Operating temperature | 0°C to +40°C |
| Storage temperature | -20°C to +70°C |
| Fuse | |
| F1 (mains) | T8A (slow blow) for 100-120 VAC T5A (slow blow) for 220-240 VAC |
| F2 (heater) | T5A (slow blow) disregarding the mains |
| F3 (pump) | T16A (slow blow) |
| Optoisolator input (remote start, remote low speed) | Minimum ON 4 VDC, 1.6 mA Maximum 16 VDC, 9 mA reverse voltage 3 VDC insulation voltage 150 V |
| Optoisolator output (normal/overload) | minimum testify saturation output current 1.6 mA (VCE max 0.6 VDC) breakdown voltage BVCEO 70 VDC |
| Auxiliary connectors | power socket logic socket |
| Interconnecting cables | Mains cable (3-wire, 3-meter long) Pump cable (6-wire, 5-meter long) |
| Weight | 6.1 kg (13.5 lbs) |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Varian Turbo-V 80 Controller - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbo-V 80 Turbomolecular Vacuum Pump Controller 9699511 / 969-9511 120 V 9699412 / 969-9412 220 V
