Agilent TwisTorr 305-IC - NEW

Name: Agilent TwisTorr 305-IC - NEW
Brand: Agilent Varian
SKU: NEW_TwisTorr305IC

Be the first to review this product

Starting at $0

In stock

Only %1 left

SKU

NEW_TwisTorr305IC

Request For Quote

Weight	12.65 lbs
Pumping Speed	250 l/s
Ultimate Pressure	< 1 x 10^-10 mbar

Skip to the end of the images gallery

Skip to the beginning of the images gallery

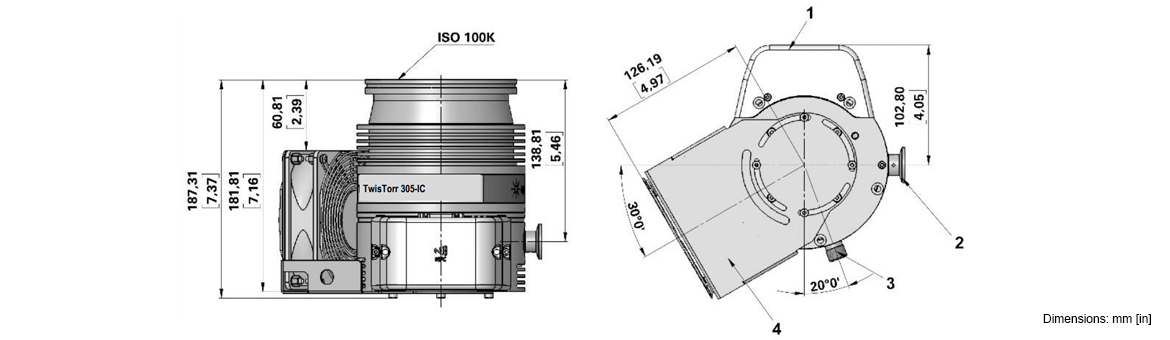

Dimensions

Description

Agilent TwisTorr 305-IC Turbomolecular Vacuum Pump w/ Integrated Controller - NEW

The TwisTorr 305-IC turbomolecular pump with integrated controller features a revolutionary design and smart connectivity through near-field communication (NFC). This 300 l/s turbo pump communicates seamlessly with the Vacuum Link app. Due to its compact form factor and small size, the TwisTorr 305-IC is ideal for use in any instrument and any industrial application requiring a high compression ratio and low vibration.

New generation integrated control unit
Low noise levels - 41 dB(A) at full speed
High compression ratios for light gases
Compact size
Smart power management
Oil-free solution
Low-maintenance cost
Multiple configurations available for various flange sizes and air/water cooling
Full range of accessories

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Ambient Operating Temperature	+5 to +35 °C
Ambient Storage Temperature	-40 to +70 °C
Base Pressure	<1 x 10^-10 mbar
Compression Ratio H2	1.5 x 10⁶
FlangeType	DN 100 DN 160
Foreline Flange Size	KF 16 NW
Foreline Tolerance - N2	12 mbar
Maximum Gas Throughput - N2, Water Cooling	250 sccm
Noise Level	41 dB(A)
Nominal Rotation Speed	60 KRPM
Operating Position	Any
Pumping Speed - Ar	250 l/s
Pumping Speed - H2	220 l/s
Pumping Speed - He	255 l/s
Pumping Speed - N2	250 l/s
Recommended Forepump Capacity	7 m³/h
Standards and Certifications	EN 61010-1 EN 61326-1 EN 1012-2 EN 12100 EN 50581 Machinery Directive 2006/42/EC Electromagnetic Compatibility Directive 2014/30/ EU Directive 2011/65/EU
Start Up Time	< 3 min
Weight	5.74 kg

Specs

Digital Manuals

Type	Label	Description	Download
	Agilent TwisTorr 305-IC - NEW	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent TwisTorr 305-IC Turbomolecular Vacuum Pump w/ Integrated Controller - NEW

X351364000 / X3513-64000  ISO-100K 485AGI air cooling
X351364001 / X3513-64001  CFF-6 485AGI air cooling
X351364002 / X3513-64002  ISO-160K 485AGI air cooling
X351364003 / X3513-64003  CFF-8 485AGI air cooling
X351364004 / X3513-64004  ISO-100K 485AGI water cooling
X351364005 / X3513-64005  CFF-6 485AGI water cooling
X351364006 / X3513-64006  ISO-160K 485AGI water cooling
X351364007 / X3513-64007  CFF-8 485AGI water cooling
X351364016 / X3513-64016  ISO-100K 485P air cooling
X351364017 / X3513-64017  CFF-6 485P air cooling
X351364018 / X3513-64018  ISO-160K 485P air cooling
X351364019 / X3513-64019  CFF-8 485P air cooling
X351364020 / X3513-64020  ISO-100K 485P water cooling
X351364021 / X3513-64021  CFF-6 485P water cooling
X351364022 / X3513-64022  ISO-160K 485P water cooling
X351364023 / X3513-64023  CFF-8 485P water cooling
X351364024 / X3513-64024  ISO-100K 232AGI air cooling
X351364025 / X3513-64025  CFF-6 232AGI air cooling
X351364026 / X3513-64026  ISO-160K 232AGI air cooling
X351364027 / X3513-64027  CFF-8 232AGI air cooling
X351364028 / X3513-64028  ISO-100K 232AGI water cooling
X351364029 / X3513-64029  CFF-6 232AGI water cooling
X351364030 / X3513-64030  ISO-160K 232AGI water cooling
X351364031 / X3513-64031  CFF-8 232AGI water cooling
