Agilent TwisTorr 84 FS Onboard Controller - NEW

Starting at $1,290
In stock
Only %1 left
SKU
NEW_TT84FSOC

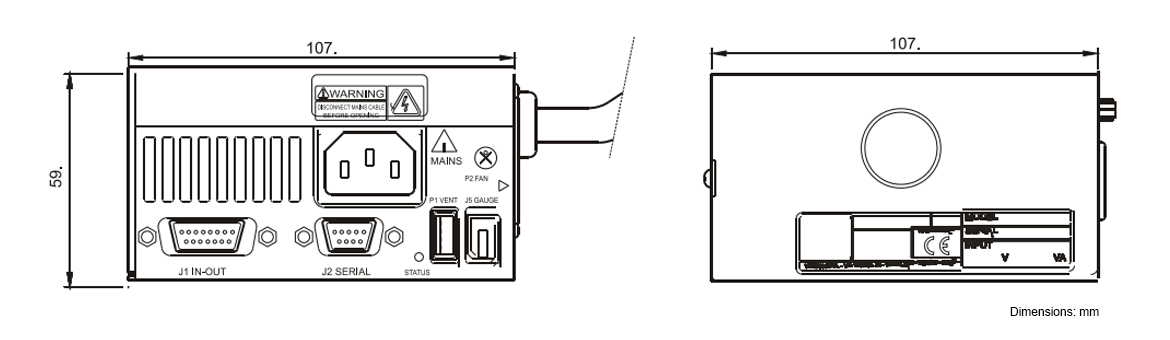

Height 59 mm
Width 107 mm
Length
Weight 1.1 lbs

Agilent Varian TwisTorr 84 FS Onboard Controller - NEW

The TwisTorr 84 FS onboard controller is a small turbo pump control unit able to read pressure via active gauges. Its compact size allows multiple mounting options, and analog and serial interfaces enable easy system integration. The onboard controller can be mounted on or by your pump, with two versions available: 24 Vdc or 100–240 Vac.

  • Ready for Vacuum Link app to give full pump control through your mobile phone
  • Compact onboard mounting design allows easy integration
  • Active gauges reading capability for system pressure monitoring
  • RS232/RS485 communication protocols for easy integration
  • Remote control with A-plus software enables pump operation, control, and recording of system parameters (i.e., pressure)
  • Vent valve and cooling fan driving to get full vacuum system control
  • Universal voltage (100–240 V) enables worldwide operation

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Configuration
  • Onboard controller
For Pump Type
  • Turbo Pump
Maximum Pump Cable Length
  • 100 m
Operating Environment Relative Humidity
  • 90 % maximum non condensing humidity
Operating Environment Temperature
  • 5° C to 45° C
Pump Model Compatibility
  • TwisTorr 84 FS Turbo Pump
Standards and Certifications
  • EN 61010 - 1 (2001)
    EN 55011 (Class-A)
    EN 61000-3-2,
    EN 61000-3-3,
    EN 61000-6-2 (2005)
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61000-4-6
    EN 61000-4-8
    EN 61000-4-11
Weight
  • 0.5 kg

Specs

Type Label Description Download
Agilent TwisTorr 84 FS AG Navigator Controller - NEW User Manual Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent Varian TwisTorr 84 FS Onboard Controller - NEW

X3510-64000 TwisTorr 84 FS PCB controller
X3509-64000 TwisTorr 84 FS onboard controller, 110/220 V
X3509-64001 TwisTorr 84 FS onboard controller, 24 V
