Agilent TwisTorr Medium-TMP Onboard Controller - NEW

Starting at $0
In stock
Only %1 left
SKU
NEW_TMPOnboard

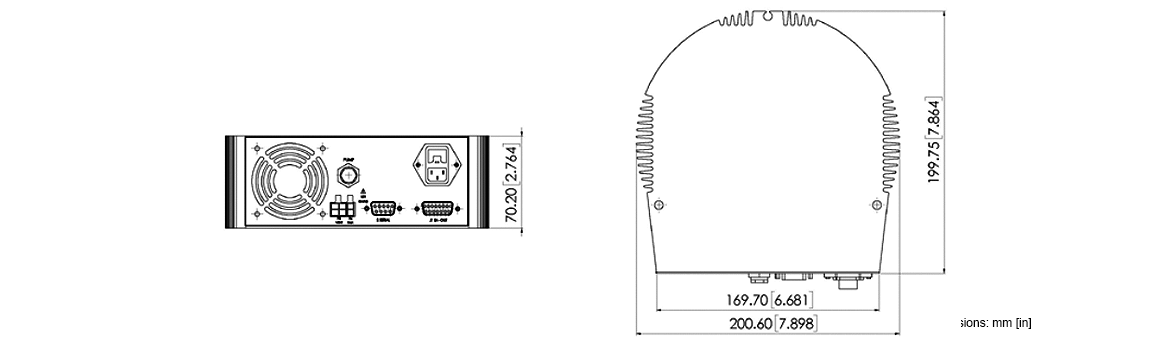

Height 27.64 mm
Width 70.20 mm
Length 199 mm
Weight 11.9 lbs

Agilent Varian TwisTorr Medium-TMP Onboard Controller - NEW

The TwisTorr Medium-TMP onboard controller is designed to operate the TwisTorr 404 FS, 704 FS, and 804 FS turbomolecular pumps. The onboard controller mounts at the bottom of the turbo pump, optimizing pump parameters based on application conditions and controlling vent valves or the air cooling fan for the turbo pump.

Capable of running on worldwide voltage, the TwisTorr Medium-TMP onboard controller is designed to be mounted locally by the pump, and can be controlled externally using Agilent A-Plus software or integrated into an existing system via an analog or serial interface.

  • Ready for Vacuum Link app to give full pump control through your mobile phone
  • Compact onboard mounting design allows easy integration
  • RS232/RS485 communication protocols (and optional Profibus interface) for easy data management
  • Remote control with A-plus software enables pump operation, control, and recording of system parameters
  • Vent valve and cooling fan driving to get full vacuum system control
  • Universal voltage (100–240 V) enables worldwide operation

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Configuration
  • Onboard controller
For Pump Type
  • Turbo Pump
Maximum Pump Cable Length
  • 100 m
Operating Environment Relative Humidity
  • 90 % maximum non condensing humidity
Operating Environment Temperature
  • 5° C to 45° C
Pump Model Compatibility

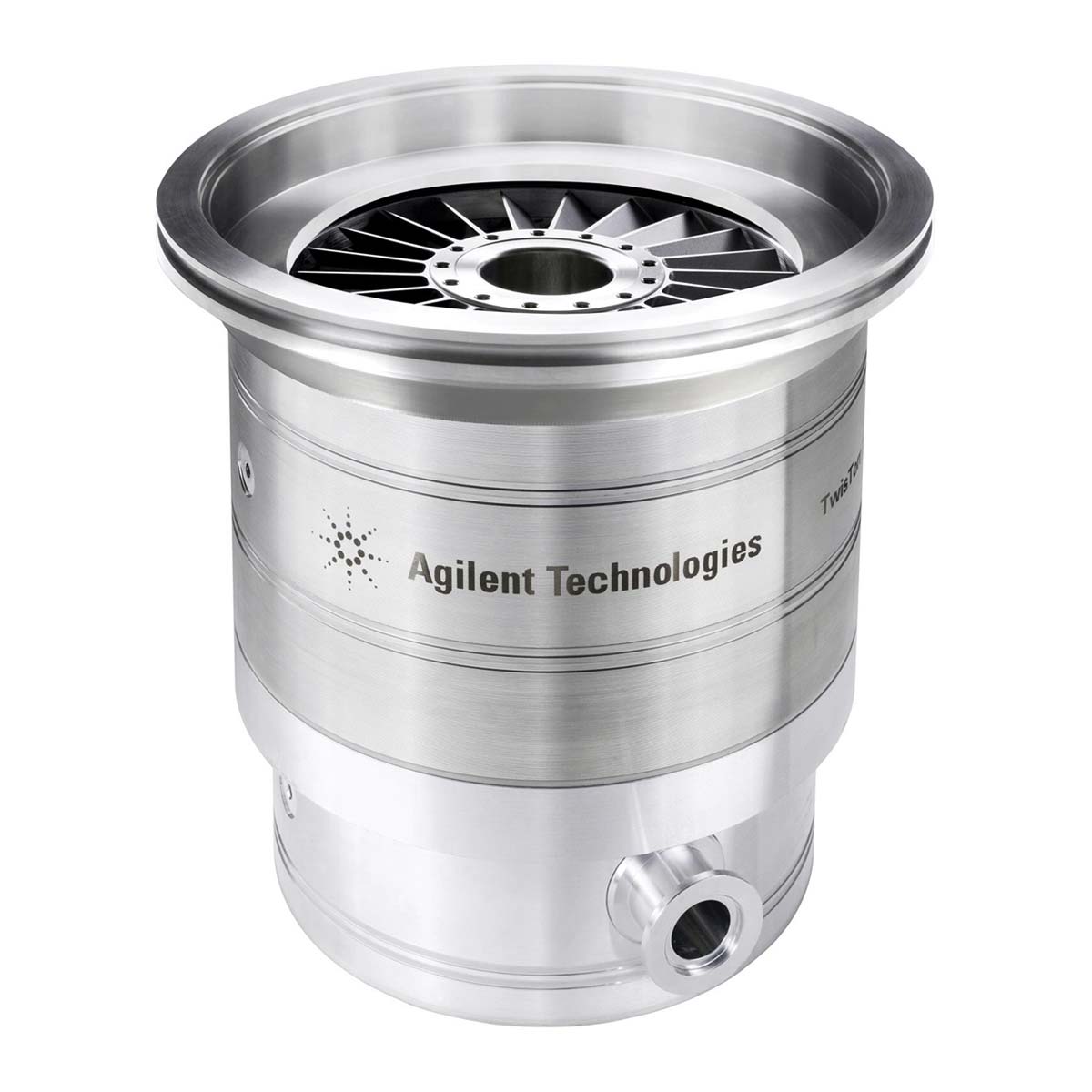

  • TwisTorr 404 FS Turbo Pump
  • TwisTorr 704 FS Turbo Pump
  • TwisTorr 804 FS Turbo Pump
Standards and Certifications
  • EN-61326-1 2013
    EN 61010-1 2010
Weight
  • 5.4 kg

Specs

Type Label Description Download
Agilent TwisTorr Medium-TMP On-Board Controller - NEW User Manual Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent Varian TwisTorr Medium-TMP Onboard Controller - NEW

X3512-64026 TwisTorr Turbo Pump Medium Onboard Rugged Controller for use with 404FS 704FS 804FS
X3512-64006 TwisTorr Turbo Pump Medium Onboard Controller, One Speed, 404FS, 704FS, 804FS
X3512-64016 TwisTorr Turbo Pump Medium Onboard Controller for use with 404FS, 704FS, 804FS
