ANEST IWATA DVSL-100C - NEW

Starting at $4,620
In stock
Only %1 left
SKU
NEW_DVSL100C
Weight 33 lbs
Motor Power 0.40 hp
Pumping Speed 4.2 cfm
Ultimate Pressure ≦ 5 x 101 Pa

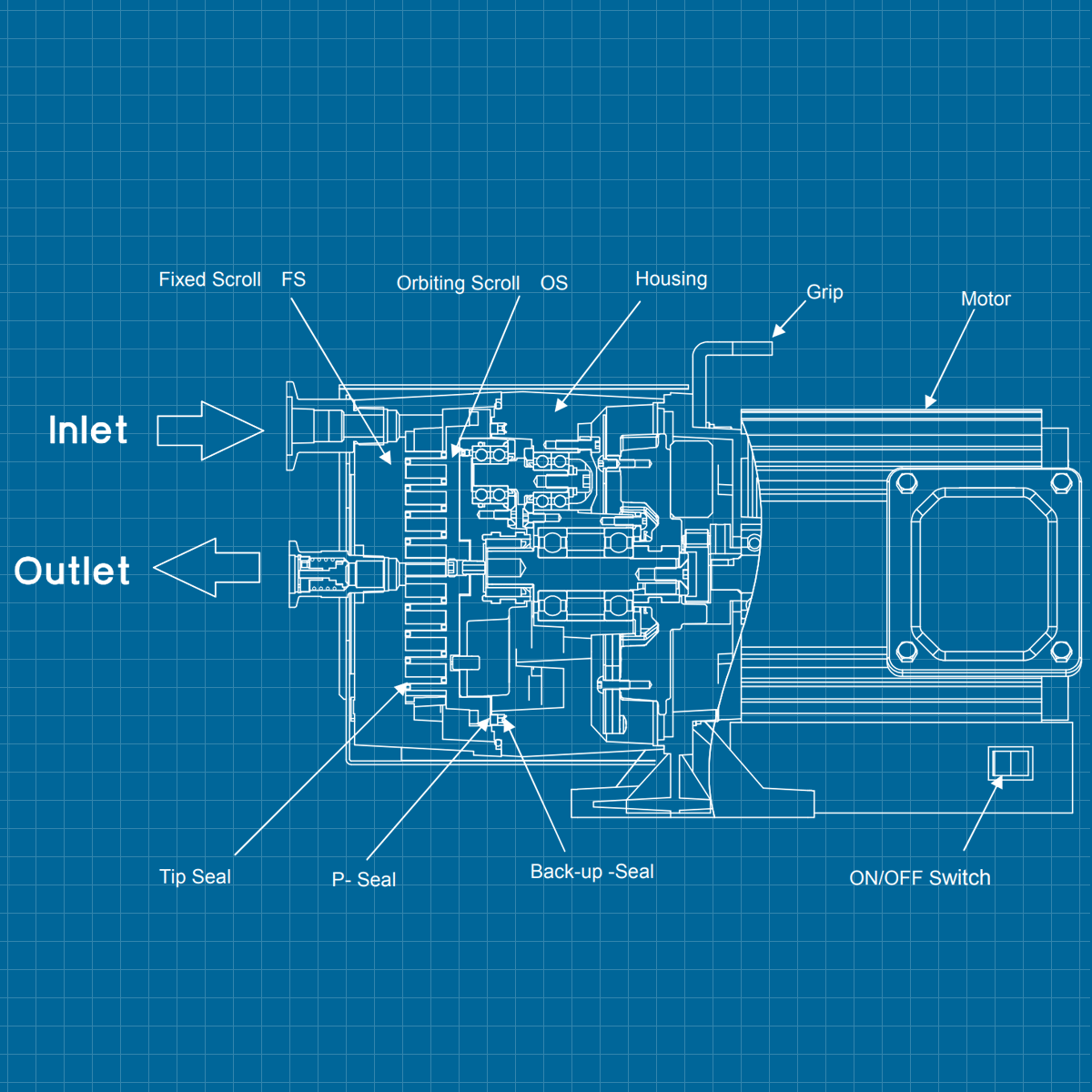

ANEST IWATA DVSL-100C Dry Scroll Vacuum Pump - NEW

With OEM one year warranty. PTB is now an authorized distributorship within the ANEST IWATA distribution network, selling all their models of scroll pumps.

The DVSL scroll pumps are equipped with a dry vacuum system so there is no need for lubricating oil or sealing water. The absence of gears means that it is low-maintenance and there is no need to change gear oil and no risk of lubricating oil leaks. Generator powered vacuum keeps the installation area clean. It is equipped with a water cooling system which eliminates the need to control water cooling on site. DVSL pumps are excellent in displacing water vapor. Low power variance between atmospheric pressure and maximum pressure allows repeated, continuous operation between atmospheric pressure and vacuum. These pumps use up less energy and can lead to savings in the vacuum area. 24-Hour operation secured.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Displacement 50 Hz
60 Hz
100 L/min
120 L/min
Ultimate pressure    Pa ≤ 50
Max. inlet pressure Atmospheric pressure
Ambient operating temperature     5°C ~ 40°C
Type Single-phase induction motor 4P
Totally-enclosed
Insulation Class B IP44
Capacitor start TP212
Automatic Reset Type
Output 0.3 kW (50/60 Hz)
Voltage 100 V 115 V 200 V 230 V
Rated current A 50 Hz
60 Hz
3.2
3.7
-
4.3
1.6
1.6
2.0
1.7
Revolution min-1 {rpm} 50 Hz
60 Hz
2,940
3,540
-
3,550
2,938
3,534
2,950
3,550
Noise level at 1m dB(A)
    w/ air-flush ON
≤ 62
≤ 65
Inlet connection NW25 (Internal screw sizw: Rc3/8)
Outlet connection NW16 (with exhaust valve)

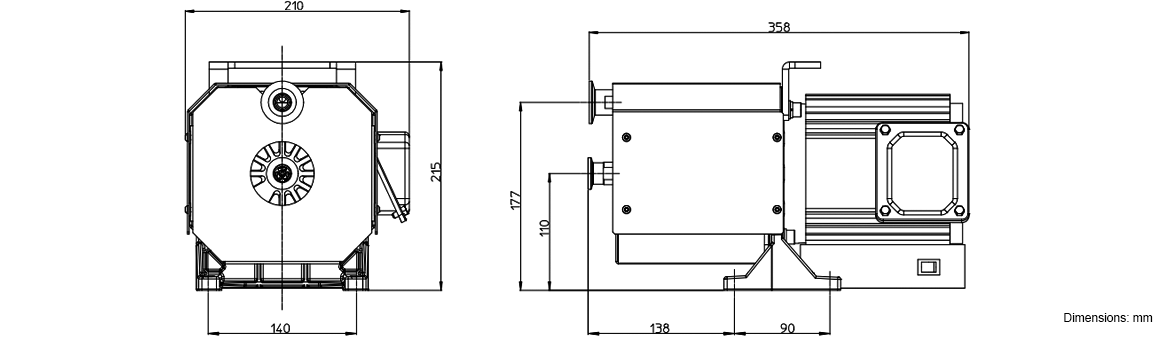

Dimensions 358 x 210 x 215 mm
14 x 8.2 x 8.4 in
Mass 15 kg (33 lbs)
Cooling system Air-cooled
Others Air-flush

Specifications

Type Label Description Download
ANEST IWATA DVSL 100C - NEW Instruction Manual Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
