CTI-Cryogenics 1020R - REBUILT
Call for Price
| Weight | 315 lbs |
|---|---|
| Power | 5 kW |

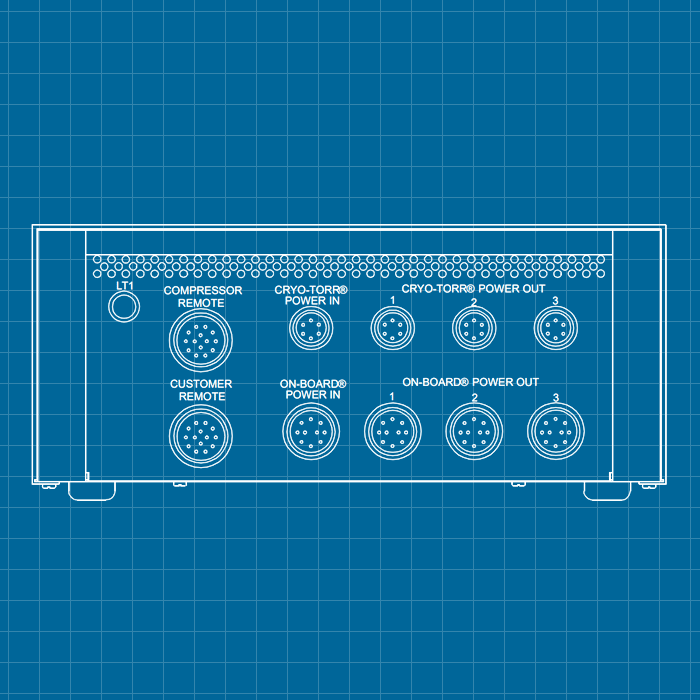

Brooks CTI-Cryogenics 1020R Helium Compressor - REBUILT
The compressor is designed to operate unattended while providing a constant supply of clean helium to the cold head at the proper operating pressure. It consists of a compressor pump, a cooling system, on oil-injection system, an oil separation system and an adsorber. In addition, the compressor is equipped with a pressure gauge and an electrical-control-chassis.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
This product has been refurbished by PTB Sales, Inc. PTB Sales is not affiliated with Brooks Automation, Inc., the Original Equipment Manufacturer. In some cases, PTB Sales uses processes and parts that are different from those used by the OEM, and the OEM expressly disclaims any warranty obligations with respect to this refurbished product.
| Model | Cooling Type | Capacity (pump models) | Weight | ||
|---|---|---|---|---|---|
| SC | air/water | 1 Cryo-Torr (100, 7, 8, 8F) | 175 | ||
| 8200 | air/water | 1 On-Board (100, 7, 8, 8F) | 155 | ||
| 8300 | water | ||||
| 1020R | air/water | 1 Cryo-Torr (10, 400, 500) or 3 Cryo-Torrs (100, 7, 8, 8F) | 350 | ||

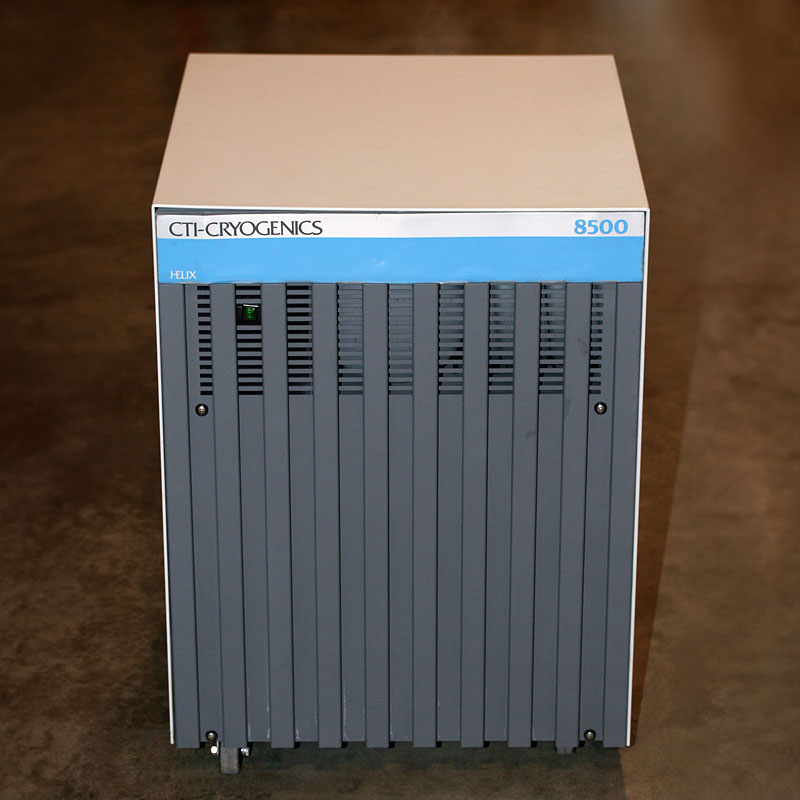

| 8500 | water | 365 | |||
| 8510 | water | 1 On-Board (10, 400, 500) or 3 On-Board (100, 7, 8, 8F) | |||
| 9600 | Part # | 8031023G001 | 8031023G002 | 8031023G003 | 8031023G004 |
| Cooling | Air | ||||
| Capacity (pump model) | 1 Cryo-Torr (10, 400, 500) or 3 Cryo-Torrs (100, 7, 8, 8F) |
||||
| Volts | 208 or 230 V | 200 or 220 V | 230 and 460 V | 380 or 220 and 400 V | |
| Line frequency | 60 Hz | 50 Hz | 60 Hz | 50 Hz | |
| Phase | 3 | 1 / 3 | |||
| Full load current (Amps) | 23 A | 6 / 9 A | |||
| Operating voltage range | 198 - 253 V | 190 - 230 V | 414 - 506 V | 353 - 428 V | |
| Power consumption | 5 kW, nominal operating power | ||||
| Helium pressure | Static: 185 + 5 psig (1,225 - 1,292 kPa) at 70 to 80°F (21 to 27°C) Supply (normal operation): 265 - 275 psig (1,802 - 1,870 kPa) (mean value) Return (normal operation): 65 - 80 psig (442 - 544 kPa) (mean value) |
||||
| Ambient operating temperature range | 50 - 100ºF (10 - 38ºC) | ||||
| Interface | |||||
| Length of input power cable | 10 ft (3 m) - Longer lengths can be used. | ||||
| Length of cold head power cable | |||||
| Length of cold head power cable | |||||
| Gas supply connector | 1/2 in. Aeroquip self-sealing coupling, male thread. | ||||
| Gas return connector | 1/2 in. Aeroquip self-sealing coupling, female thread. | ||||
| Adsorber service schedule | Replace every year. | ||||
| Weight | 315 lbs / 143 kg | ||||
This product has been refurbished by PTB Sales
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Brooks CTI-Cryogenics 1020R Helium Compressor - REBUILT
This product has been refurbished by PTB Sales, Inc. PTB Sales is not affiliated with Brooks Automation, Inc., the Original Equipment Manufacturer. In some cases, PTB Sales uses processes and parts that are different from those used by the OEM, and the OEM expressly disclaims any warranty obligations with respect to this refurbished product.
