CTI-Cryogenics 8200 - REBUILT
Call for Price
| Weight | 150 lbs |
|---|---|
| Power | 2.0 kW |

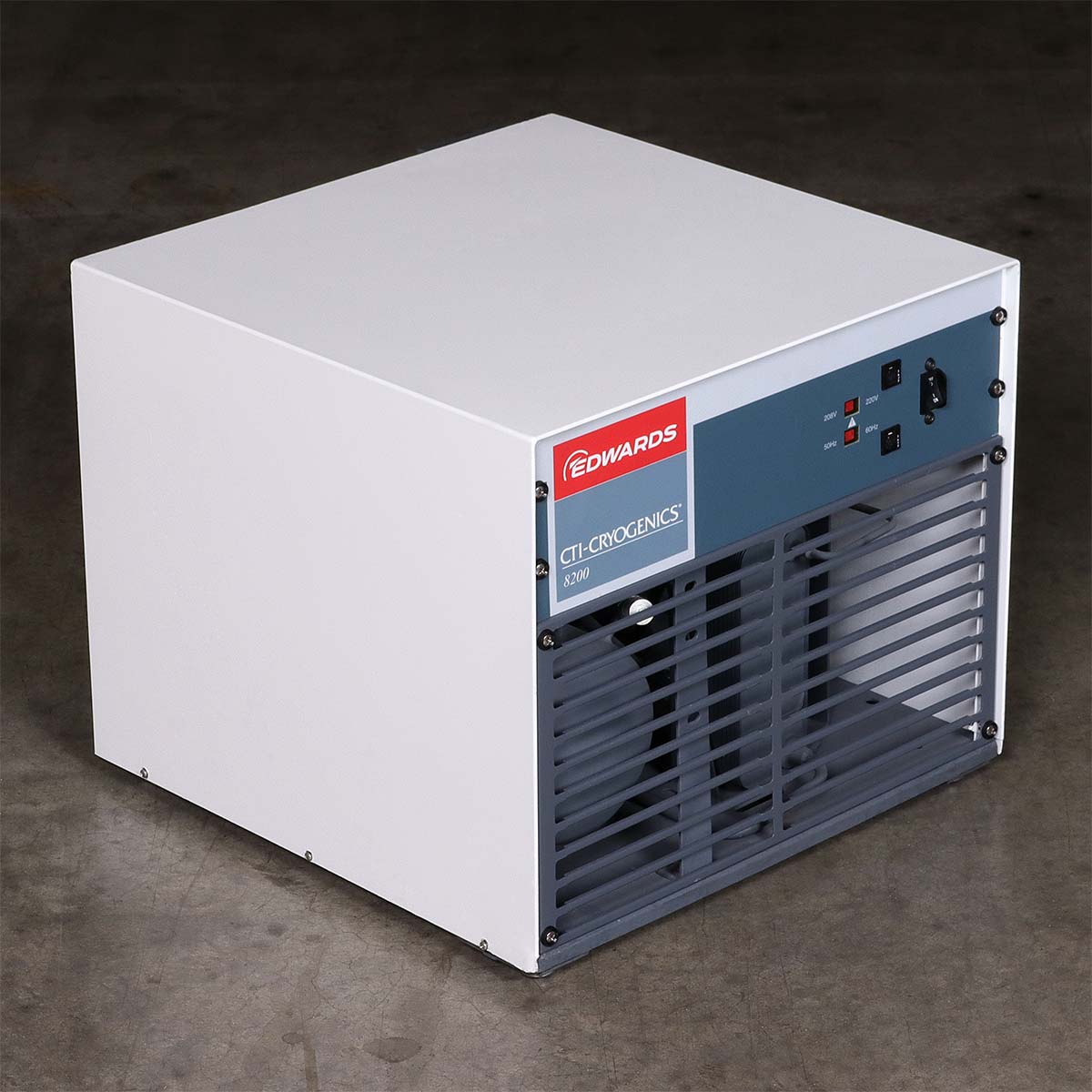

Brooks CTI-Cryogenics 8200 Helium Compressor - REBUILT
The CTI 8200 compressor is available in two versions: air-cooled, part number 8032549G001/G002 and water cooled, part number 8032550G001/G002. We recommend water cooling for these small compressors. Water cooling removes heat more efficiently than air cooling, water having many times higher thermal conductivity and several times greater specific heat capacity than air. We notice that the water cooled compressors last longer than the air cooled.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Cooling | Air or Water |
| Capacity (pump model) | 1 On-Board (100, 7, 8, 8F) |
| Operating voltage range | 50 Hz: 180 - 220 VAC 60 Hz: 198 - 250 VAC |
| Line frequency | 50 / 60 Hz |
| Phase | 3 / 1 |
| Nominal operating current | 10A (air) 8.5A (water) |
| Power consumption | 2.1 kW nominal operating (air) 2.0 kW, nominal operating (water) |
| Rated full load / locked rotor current | 12/30A |
| Helium pressure | Static: 245 - 255 psig (1,688 - 1,757 kPa) at 70 to 80°F (21 to 27°C) Supply: nominal operation: 270 - 290 psig (1,860 - 2,000 kPa) at operating temperature. |
| Input power cable (Customer supplied) |
Recommended type SO-4 conductor, 600V, neoprene jacket and 14-gauge wire. |
| Ambient operating temperature range | 50 - 100ºF (10 - 38ºC) |

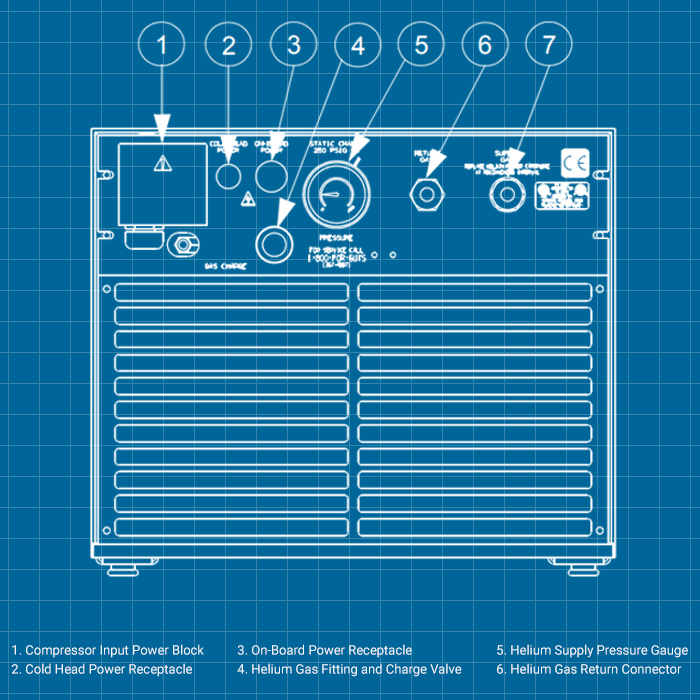

| Interface | |
| Cold head power receptacle | Mates with plug on cold head power cable. |
| On-Board power receptacle | Mates with plug on coldhead power cable. |
| Compressor input-power terminal block enclosure | Mates with input power cable, fabricated by customer or available from BROOKS-Cryogenics. |
| Gas supply connector | 1/2 in. Aeroquip self-sealing coupling, male thread. |
| Gas return connector | 1/2 in. Aeroquip self-sealing coupling, female thread. |
| Adsorber service schedule | Replace every 12 months. |
| Cooling water requirements (water cooled only) | 100°F (38°C) maximum discharge temperature |
| Weight | 150 lbs / 68 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Brooks CTI-Cryogenics 8200 - REBUILT | Installation, Operation & Service Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Brooks CTI-Cryogenics 8200 Helium Compressor - REBUILT 8032549G001 air cooled 3-phase
8032549G002 air cooled 1-phase 8032550G001 water cooled 3-phase
8032550G002 water cooled 1-phase
-
