Dimplex Thermal Solutions JHI-180-M - NEW

Call for Price

In stock
SKU
NEW_ JHI180M
Pump standard flow 2 GPM @ 50 PSI
Weight 290 lbs
Dimensions (LxWxH) 21x22x29

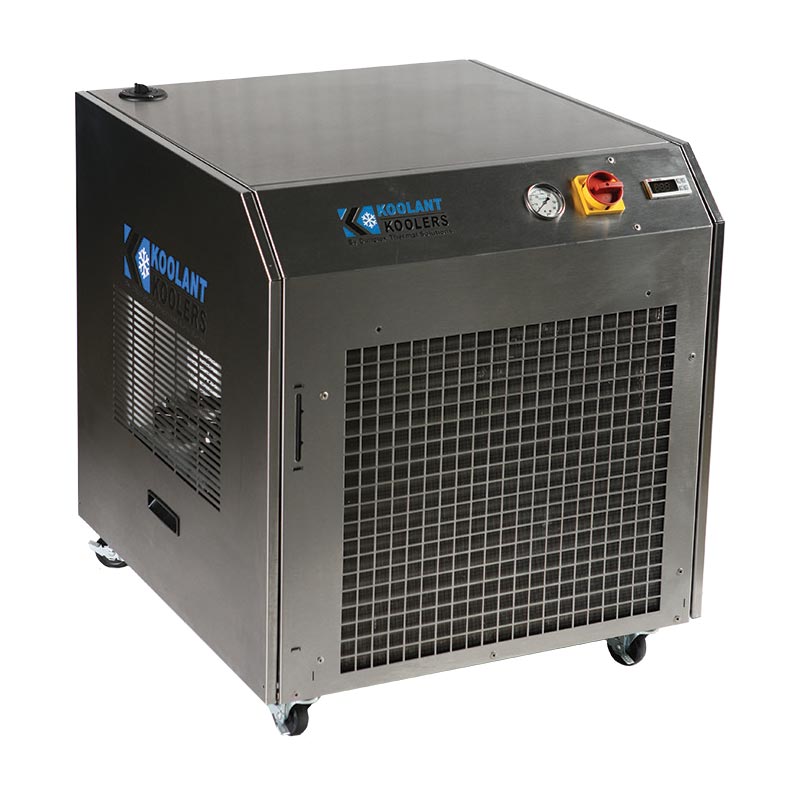

Dimplex Thermal Solutions Koolant Koolers JHI-180-M Portable Chiller - NEW

This compact air-cooled unit provides reliable temperature control of process fluids from 50-80°F in ambient temperatures up to 105°F. Its casters yield effortless portability and allow for use with several machines in a process.

Its size, simple operation and ease of maintenance make it the chiller of choice for hundreds of applications. Most models need no special wiring – it is truly a plug and play design.

  • Air cooled, closed-loop refrigeration circuit for water or water/glycol operations
  • Provides from 1/8 to 2 tons of cooling for indoor use
  • Optimized layout of internal components for ease of service
  • Various voltage options available
  • High pressure models available larger units
  • Streamlined manufacturing process for short lead-times
  • State-of-the-art 18 month comprehensive warranty
  • 24/7 service and support with next days parts service
  • Ongoing support offered for the life of the equipment

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

J Series

JHI-180-M JHI-500-M JHI-1000-M JHI-1500-M JHI-2000-M
1/8 Ton 1/2 Ton 1 Ton 11/2 Ton 2 Ton
Cooling
Refrigerant R134a
Compressor type Hermetic condensing unit
Condenser type Fin and tube
Fluid Circuit
Cooling capacity 60 Hz 2,100 BTU 5,500 BTU 12,000 BTU 18,000 BTU 24,000 BTU
Pump flow/pressure (standard) 2 GPM @ 50 PSI 4 GPM@ 50 PSI 10 GPM@ 35 PSI
Fluid temperature (outlet) 65°F
Temperature stability 3°F
Cooling medium Water or water/glycol (70/30)
Tank capacity 5 gal 10 gal
Wetted component material Non-ferrous, polyethylene
Evaporator Stainless steel copper brazed plate
Climatic Data
Site of installation Indoor
Ambient conditions 50-95°F
Noise level 65-68 dB(A)
Electrical Data
Voltage options
115/1/60
230/1/60
230/3/60
460/3/60
Certifications/Standards UL1995
Controller type Carel IR33
Additional Data
Dimensions 21 x 213/4 x 281/2" 251/8 x 305/8 x 351/4" 323/4 x 373/4 x 331/4"
Finish 430 Stainless steel
Crated weight 245 450 490 630
Wet weight 290 530 570 645

Spec Sheet

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Dimplex Thermal Solutions Koolant Koolers J Series Portable Chiller - NEW

800057        JHI-180-M  2,100 BTU/HR  2 GPM @ 50 PSI
800058        JHI-500-M  4,300 BTU/HR  4 GPM @ 50 PSI
800050        JHI-1000-M  120,000 BTU/HR  10 GPM @ 35 PSI
800051        JHI-1000-M  120,000 BTU/HR  4 GPM @ 50 PSI
800060        JHI-1000-M  120,000 BTU/HR  10 GPM @ 35 PSI
800127        JHI-1000-CE-M  120,000 BTU/HR  4 GPM @ 50 PSI
800251        JHI-1501-M  150,000 BTU/HR  8 GPM @ 80 PSI
800054        JHI-1500-M  180,000 BTU/HR  4 GPM @ 50 PSI
800392        JHI-1500-M  180,000 BTU/HR  4 GPM @ 50 PSI
800067        JHI-2000-M  240,000 BTU/HR  10 GPM @ 35 PSI
800070        JHI-2000-M  240,000 BTU/HR  10 GPM @ 35 PSI
800302        JHI-2000-M  240,000 BTU/HR  10 GPM @ 50 PSI
800067        JHI-2000-M  240,000 BTU/HR  10 GPM @ 35 PSI
