Edwards E2M40 - NEW
Call for Price
In stock
SKU
NEW_E2M40
| Weight | 165 lbs |
|---|---|
| Motor Power | 1.1 hp |
| Pumping Speed | 37 m3/h |
| Ultimate Pressure | 3.0 x 10-3 Torr |

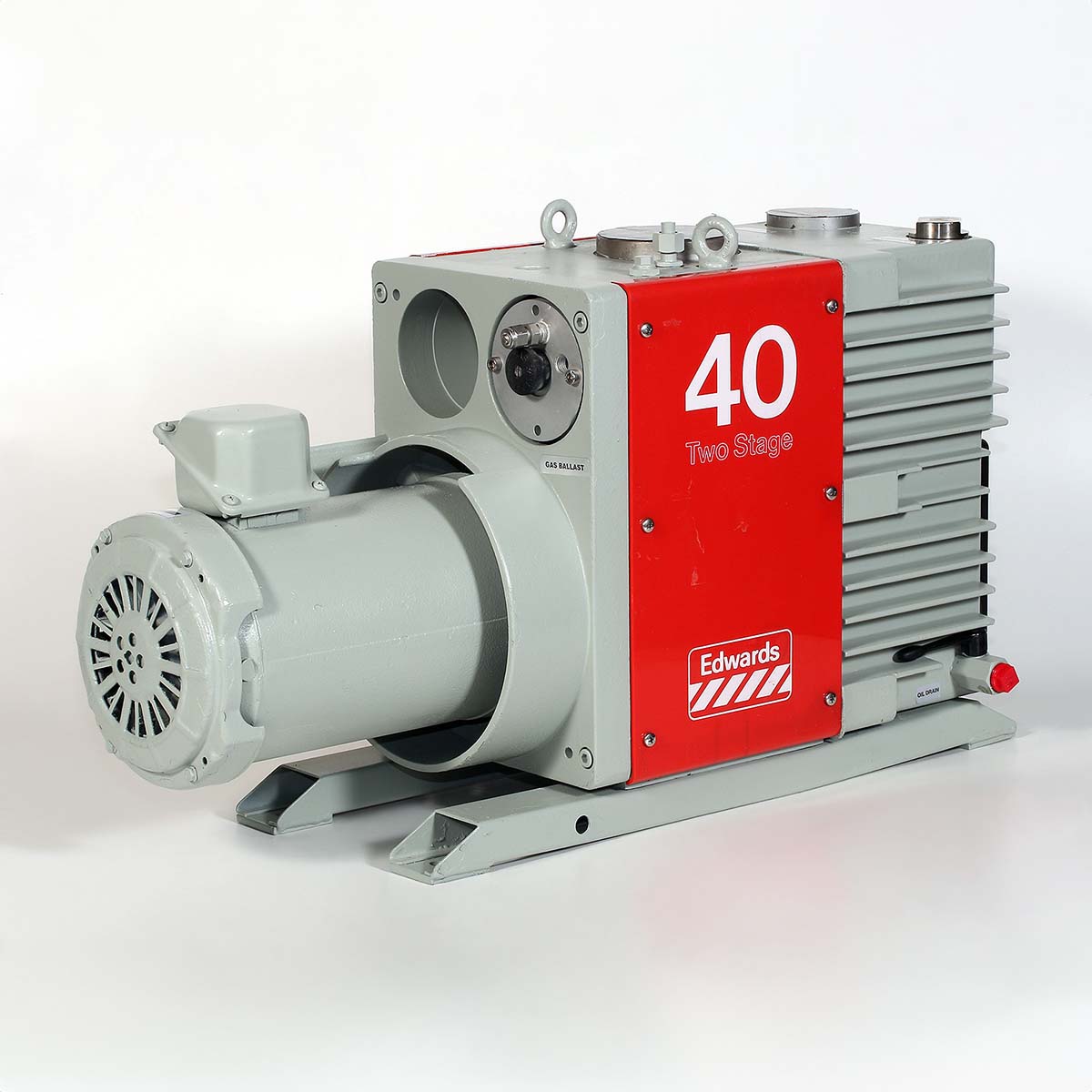

Edwards E2M40 Two Stage Rotary Vane Vacuum Pump - NEW
Edwards E2M series two stage oil sealed rotary vane vacuum pumps are renowned for their high ultimate vacuum, rapid pumping speeds, quiet operation and ability to handle water vapour. These direct drive rotary vane pumps are inherently compact and vibration free, and with their finger-proof fan and coupling housings they offer excellent operator protection.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement (swept volume) | |
| 50 Hz | 42.5 m3h-1 / 25 ft3min-1 |
| 60 Hz | 50.5 m3h-1 / 29.7 ft3min-1 |
| Speed (Pneurop 6602) | |
| 50 Hz | 37 m3h-1 / 21.8 ft3min-1 |
| 60 Hz | 44 m3h-1 / 25.9 ft3min-1 |
| Number of stages | 2 |
| Ultimate vacuum | |
| w/out gas ballast (total pressure) | 1 x 10-3 mbar / 7.5 x 10-4 Torr |
| w/ gas ballast (partial pressure) | 1.5 x 10-2 mbar / 1.1 x 10-2 Torr |
| Ultimate w/ Fomblin® | |
| w/out gas ballast | 1 x 10-2 mbar / 7.7 x 10-3 Torr |
| Inlet connection | ISO40 |
| Outlet connection | 25 mm flange suitable for NW25 |
| Maximum permitted pressure at outlet | 0.5 bar gauge |
| Maximum inlet pressure for water vapour | 7 mbar / 5.3 Torr |
| Maximum water vapour pumping rate | 0.2 kg h-1, 0.4 lb h-1 |
| Motor power | |
| 50 Hz | 1.1 kW / 1.5 hp |
| 60 Hz | 1.5 kW / 2 hp |
| Motor protection rating | IP55 |
| Weight | 75 kg / 165 lbs |
| Noise | 65 dB(A) @ 50 Hz |
| Standard & PFPE oil capacity | |
| maximum | 4 litre |
| minimum | 2.2 litre |
| Recommended oil | Ultragrade 70 |
| PFPE prepared version | Fomblin® Y06/6 |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards E2M40 & E2M80 - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL E2M40 Two Stage Rotary Vane Vacuum Pump - NEW
CODE NO. A364-18-993 / A36418993 E2M40 T4 400V three-phase 50Hz
CODE NO. A364-04-940 / A36404940 E2M40 HC IE3 EU/US 50/60Hz 380-400V 50Hz 230/460V 60Hz
CODE NO. A364-04-934 / A36404934 E2M40 HC IE3 ASIA 50/60Hz 200V 50/60Hz 380V 60Hz
A364-17-934 / A36417934 E2M40 FX IE3 ASIA 50/60Hz 200V 50/60Hz 380V 60Hz
A364-17-940 / A36417940 E2M40 FX IE3 EU/US 50/60Hz 380-400V 50Hz 230/460V 60Hz
A364-07-934 / A36407934 E2M40 AZ IE3 ASIA 50/60Hz 200V 50/60Hz 380V 60Hz
A364-07-940 / A36407940 E2M40 AZ IE3 EU/US 50/60Hz 380-400V 50Hz 230/460V 60Hz
Atlas Copco GVD 40 3-phase 230/460V 50/60Hz
