Edwards SCU 1600 - NEW
Call for Price
In stock
SKU
NEW_SCU1600

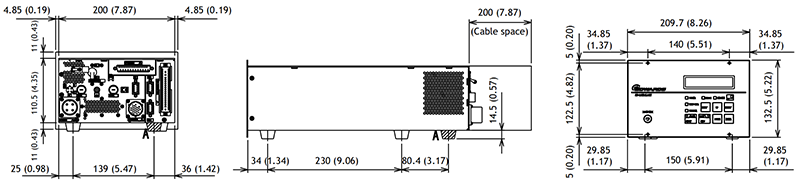

| Height | 132.5 mm |
|---|---|
| Width | 209.7 mm |
| Length | 498.5 mm |
| Weight | 27 lbs |

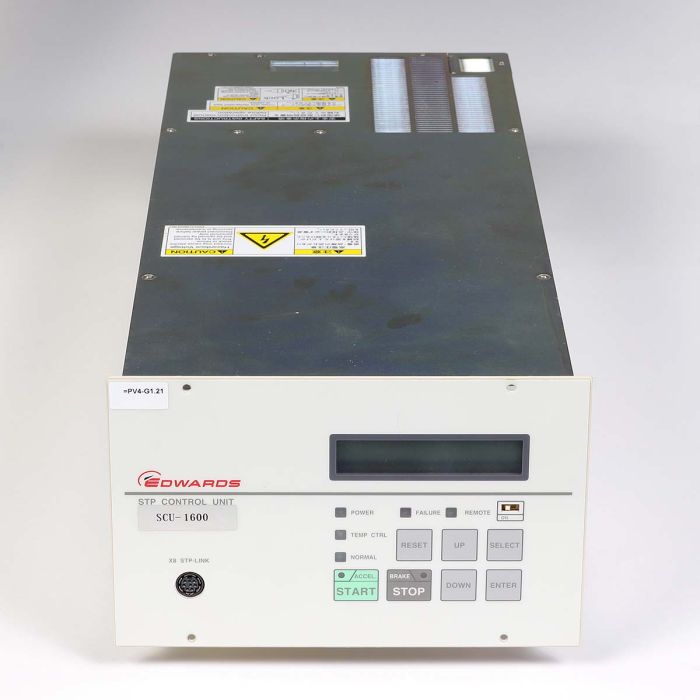

Edwards SCU-1600 Turbomolecular Vacuum Pump Control Unit - NEW
The fully digital SCU-1600 turbo pump control unit is compatible with STP turbo pumps ranging from 2,000 l/s to 4,500 l/s. It provides reliability, enhanced communication and pump compatibility with reduced back-up unit requirements and minimized overall cost of ownership.
Advanced pre-maintenance function
- Precise maintenance timing
- Two stage warning messages
- Rotor imbalance monitoring
- Back-up bearing damage monitoring
- Self-diagnosis functions
Universal controller
- Same cable applicable
- Digital communications
Low Vibration
- Auto Vibration Reduction (AVR)
- Auto balancing system (ABS)
Compact construction
- Small footprint
- Half-rack controller
Certification
- SEMI® compliant, CE Marked and UL Listed
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Magnetic bearing control system | Digital control |
| Input voltage | 200 - 240 ± 10 VAC |
| Power consumption (w/ TMS) | Max 1,600 VA |
| Power consumption (w/o TMS) | Max 2,100 VA |
| Input frequency | 50/60 ±2 Hz |
| Leak current | 3.5 mA |
| Main breaker rated current | 15 A |
| Motor drive system | 3 phase DC |
| Allowable ambient temperature | 0 to 40°C (32 to 104°F) |
| Weight | 12 kg |
| Panel display | LCD |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards SCU-1600 Turbomolecular Vacuum Pump Control Unit - NEW YT76Z0Z00 / YT76-Z0-Z00 SCU-1600
