Edwards SCU-800 - REBUILT

Call for Price

SKU
REBUILT_SCU800

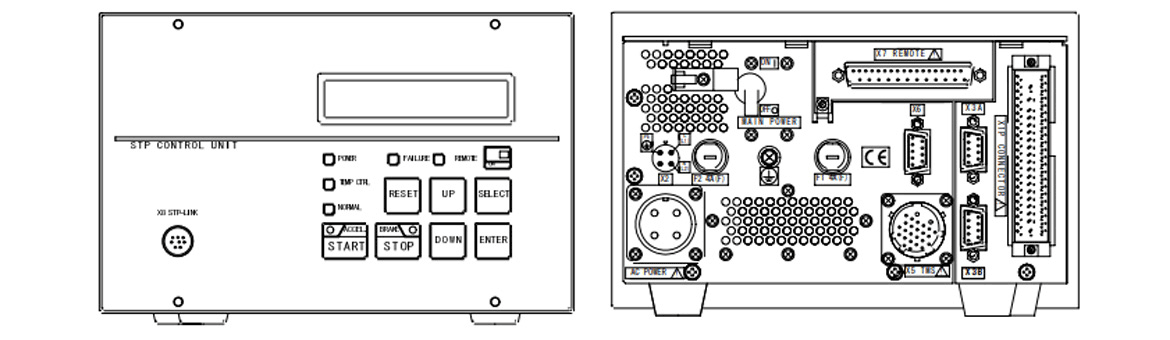

Edwards SCU-800 Universal STP Turbomolecular Vacuum Pump Controller

Features:

  • Auto Vibration Reduction
  • Auto Balancing System
  • Highest Reliability
  • Communication Ports

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Magnetic bearing control system Digital control
Input voltage 100 – 120 ±10 V a.c.
  200 – 240 ±10 V a.c.
Power consumption
(without Temperature Management System, TMS) Max 850 VA
Power consumption (with TMS) Max 1200 VA
Input frequency 50/60 ±2 Hz
Leak current 3.5 mA
Main breaker rated current 10 A
Motor drive system 3-phase d.c.
Allowable ambient temperature 0 to 40 °C (32 to 104 °F)
Weight 8.5 kg
TMS control unit Built-in
Serial communication function (RS232/RS485) Standard
Panel display LCD
Type Label Description Download
STP Series Turbomolecular Pump - REBUILT Instruction Manual Download

Request for Quote

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs. Please follow the above link, and fill out the quote form.

Edwards SCU-800 Universal STP Turbomolecular Vacuum Pump Controller

PT49Z0Z00 / PT49-Z0-Z00
PT49Z2Z00 / PT49-Z2-Z00

Controller / Pump
SCU-21D / Universal / STP-301/451
SCU-P055PRT2 / Universal
SCU-350 / Universal / STP-301/451, STP-L301/L451
SCU-750 / Universal / STP-603/1003, STP-H301/H451, STP-H803/H1303, STP-A803C/A1303, STP-A1603
SCU-800 / Universal / STP-603/1003, STP-H301/H451, STP-H803/H1303, STP-A803C/A1303, STP-A1603
SCU-XL800 / Universal / STP-603/1003, STP-A803/A1303C
SCU-1400 / Universal / STP-A2203/2503/2803/3003/3503, STP-F2203, STP-XA2703/3203, STP-XH2603/3203
SCU-1500 / Universal / STP-A2203/2503/2803/3003/3503, STP-F2203, STP-XA2703/3203, STP-XH2603/3203
SCU-1600 / Universal / STP-A2203/2503/2803/3003/3503, STP-F2203, STP-XA2703/3203/4503, STP-XH2603/3203
