Edwards STP-A803C - REBUILT
Call for Price
| Weight | 86 lbs |
|---|---|
| Pumping Speed |
800 l/s |
| Ultimate Pressure | 1 x 10-9 torr |

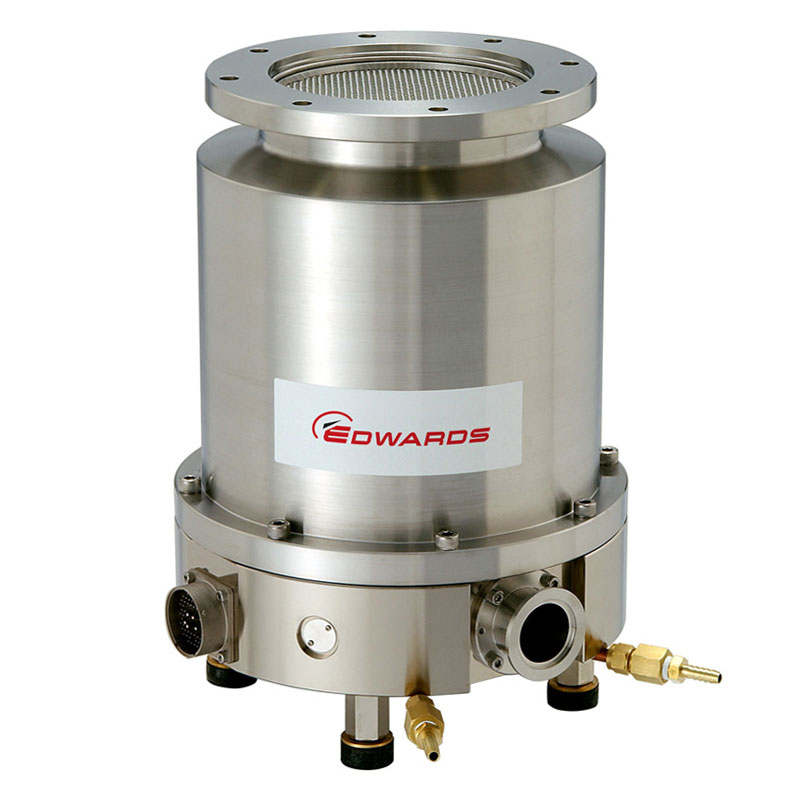

Edwards Seiko Seiki STP-A803C Turbomolecular Vacuum Pump - REBUILT
Edwards STP-A803C turbomolecular pump is designed for use in semiconductor applications. Edwards advanced rotor technology gives class-leading performance for maximum process flexibility. The STP-A803C has been approved for use by major equipment manufacturers in the semiconductor and magnetic media industries.
Advanced Rotor Technology
- Maximized process flexibility
- Oil free
- Low vibration
- High reliability
- Maintenance free
- Harsh process compatible
- Increased life

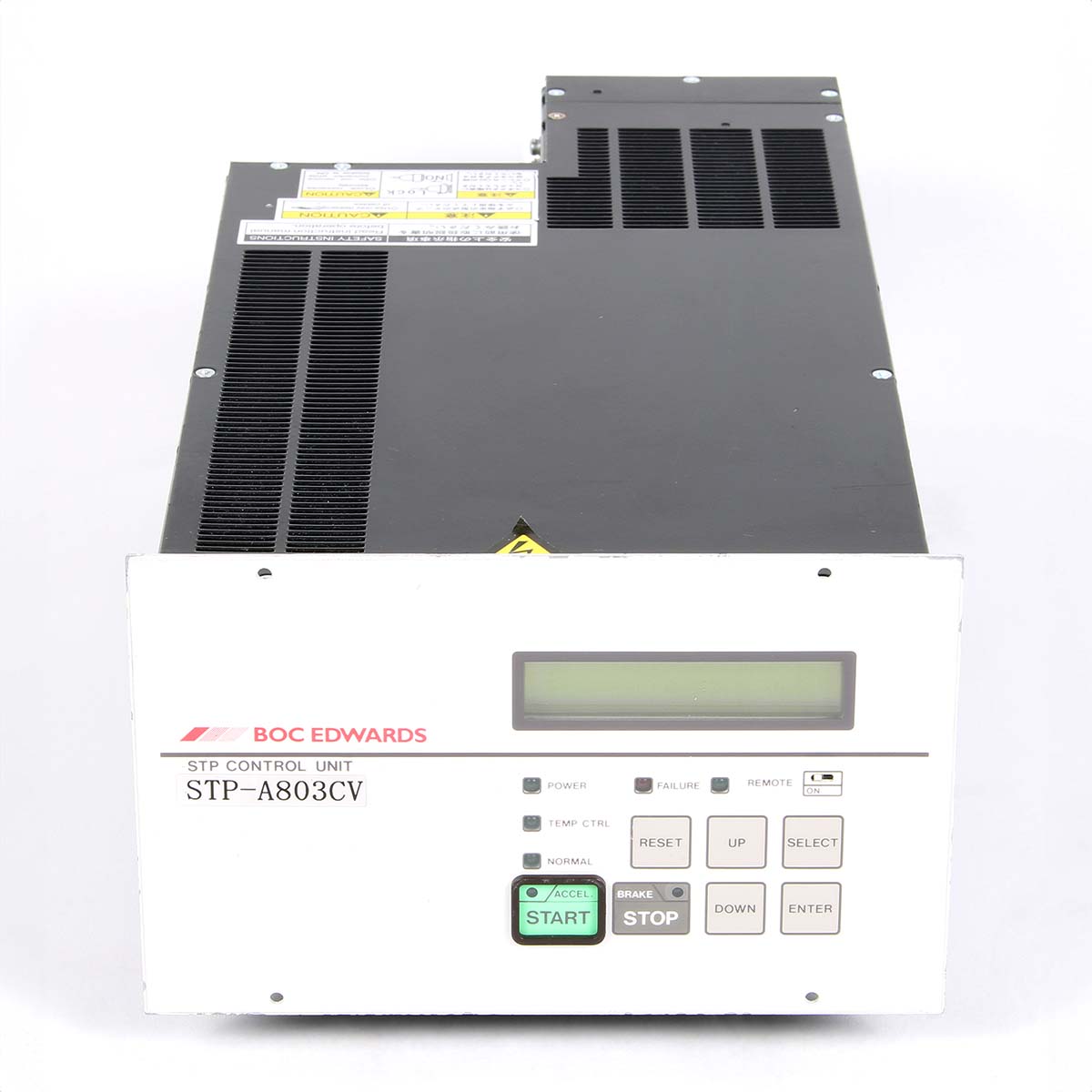

Advanced Controller Design
- Auto tuning
- Self diagnostic functions
- DC motor drive
- Battery-free operation
Compact Design
- Small footprint
- Half rack controller

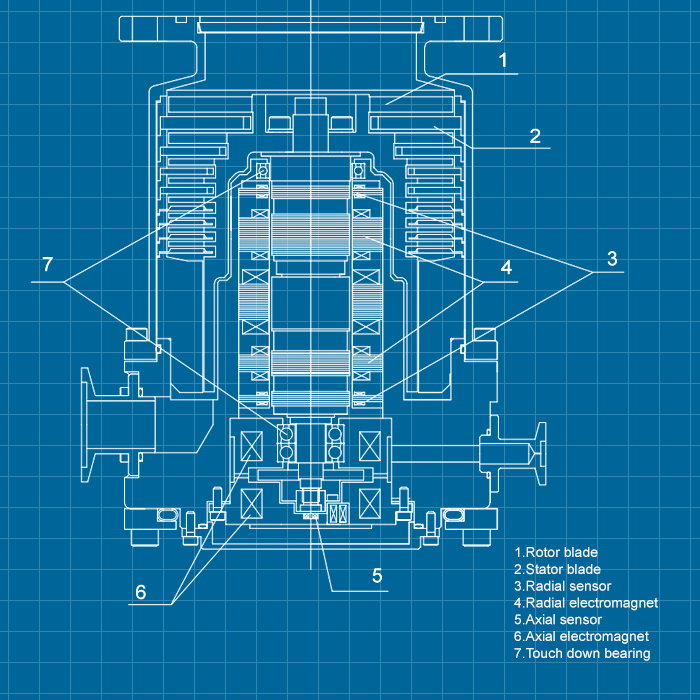

An STP pump can be installed in any orientation and operate by remote control. If any rotor imbalance occurs (by deposition of process by-products, for example) sensors detect changes in its motion and compensate the magnetic fields accordingly. There are backup precision mechanical bearings to protect the pump in the event of a total disruption of magnetic suspension or a sudden massive air inrush that overcomes the magnetic bearing stiffness.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

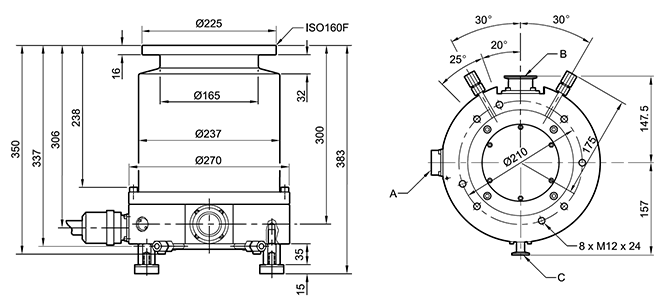

| Inlet flange | ISO-160F |
| Outlet port | KF-40 |
| Purge port | KF-10 |
| Water cooling fitting | PT1/4 |
| Pumping speed | |
| N2 | 800 l/s |
| H2 | 520 l/s |
| Compression ratio | |
| N2 | >108 |
| H2 | 103 |
| Ultimate pressure w/ bake out heating | 10-7 Pa (10-9 Torr) |
| Max. continuous outlet pressure | 270 Pa (2 Torr) |
| Max. nitrogen throughput | 1,500 sccm |
| Rated speed | 32,500 rpm |
| Starting time | 7 min |
| Max inlet flange temperature | 120°C |
| Input voltage | 200 to 240 |
| Power consumption | 0.85 kVA |
| Weight | 9 kg |
Specs Link
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards STP Series | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards Seiko Seiki STP-A803C Turbomolecular Vacuum Pump - REBUILT
P/N YT36-B0-040 / YT36B0040 STP-A803C ISO-160F
P/N YT36-B0-010 / YT36B0010 STP-A803C DN 160 CF
P/N YT36-26-000 / YT3626000 STP-A803CV ISO-160F TMS
YT36-26-003 / YT3626003 STP-A803CV DN 160 CF TMS
