Edwards STP-iXA2206C - NEW
Call for Price
| Weight | 136.68 lbs |
|---|---|
| Pumping Speed | 2,200/1,900 l/s |
| Ultimate Pressure | 1 x 10-9 Torr |
Edwards STP-iXA2206C Turbomolecular Vacuum Pump - NEW
The STP-iXA2206 series magnetically levitated turbomolecular pump provides industry-leading performance and incorporates a small power supply into the onboard control unit – the latest technology of the well-established STP-iXA2205 series. The height of the pump is equal to the STP-A2203C and is also equal to the height of the STP-iXA2205 series without it’s power supply (iPS-1200). This fully integrated product offers easy installation and a small footprint as an all-in-one solution for all application tools.
- Compact design including a fully integrated controller

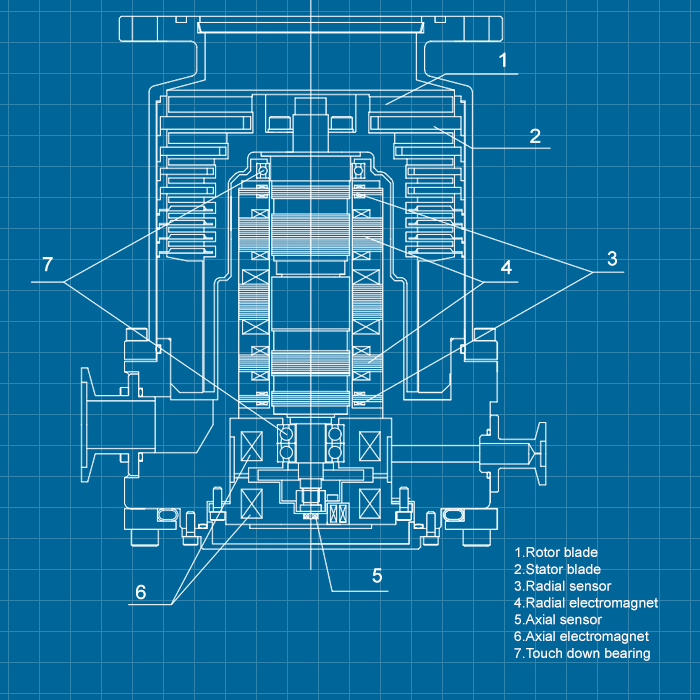

- Innovative, self-sensing magnetic bearing system
- Digital 5-axis control
- Vibration levels reduced by 50% compared to the existing turbo pumps
- Can be configured to run corrosive processes
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

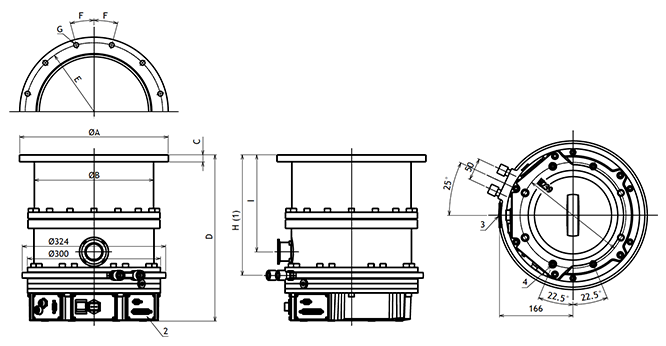

| Inlet flange size | ISO250F / VG250 / ICF305 |
| Backing port size | KF40 |
| Pump speed N2 / Ar | 2,200/1,900 l/s |
| Compression ratio N2 / H2 | > 108 / 1 x 104 |
| Ultimate pressure | 10-7 Pa (10-9 Torr) |
| Allowable backing pressure | 266 Pa (2 Torr) |
| Max gas flow N2 * (water cooled only) | 3,000 sccm |
| (5.07 Pam3s-1) | |
| Max gas flow Ar * (water cooled only) | 1,400 sccm |
| (2.36 Pam3s-1) | |
| Rated speed | 27,000 rpm |
| Run-up time to 90% rated speed | < 8 minutes |
| Mounting position | Any orientation |
| Input voltage | 200-240 V |
| Max input power (without TMS) | 1,200 VA |
| Weight | 62 kg |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards STP-iXA2206C Turbomolecular Vacuum Pump - NEW
P/N YT81-0Z-010 / YT810Z010 STP-iXA2206C ISO-250F
P/N YT81-0Z-020 / YT810Z020 STP-iXA2206C VG-250
P/N YT81-0Z-030 / YT810Z030 STP-iXA2206C DN 250 CF
YT81-0Z-040 / YT810Z040 STP-iXA2206C ISO-250F Profibus
