Edwards STPH 301C - NEW

Call for Price

In stock
SKU
NEW_STPH301C
Weight 34 lbs
Pumping Speed 300 l/s
Ultimate Pressure 1 x 10-9 Torr

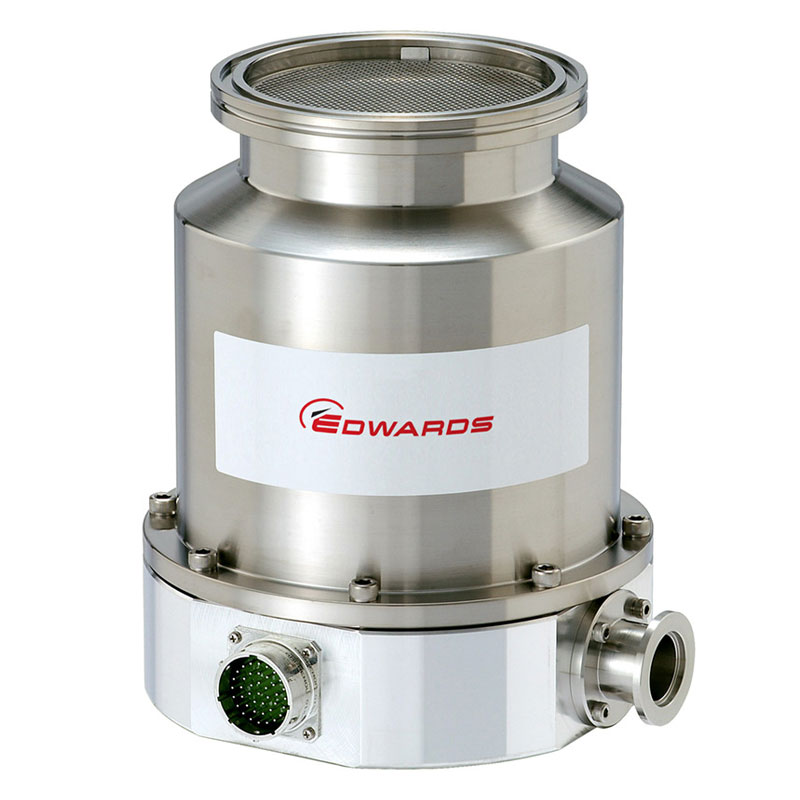

Edwards STPH 301C Turbomolecular Vacuum Pump - NEW

Edwards high performance STPH301C turbomolecular pump has been designed for use in the harshest of semiconductor applications. The pumps field proven reliability and class-leading performance give maximum process flexibility. The STPH301C has been approved for use by major equipment manufacturers in the semiconductor and magnetic media industries.

Advanced Rotor Technology

  • Higher gas throughput
  • Maximized process flexibility
  • Oil free
  • Low vibration
  • High reliability
  • Maintenance free
  • Harsh process compatible
  • Increased life

Advanced Controller Design

  • Auto tuning
  • Self diagnostic functions
  • DC motor drive
  • Battery-free operation

Compact Design

  • Small footprint
  • Half rack controller

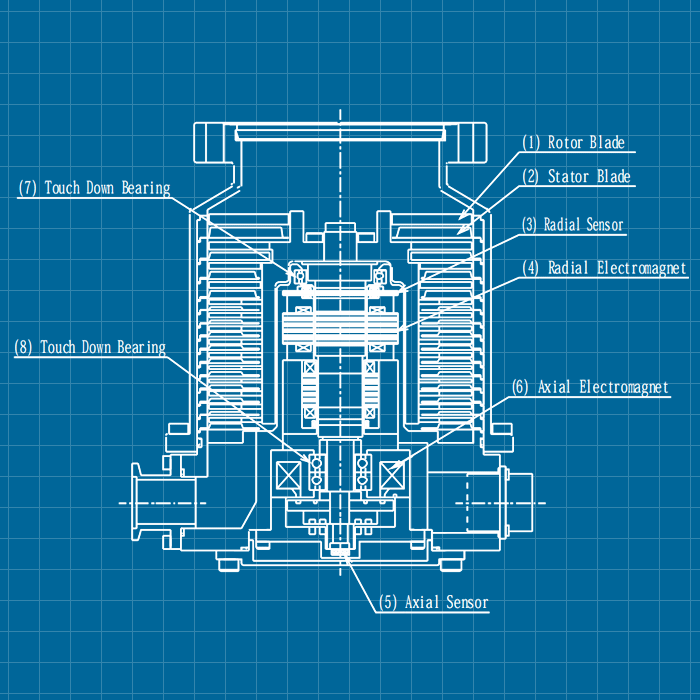

5 Axis Magnetic Suspension System

  • Zero contamination
  • Low maintenance
  • Any orientation operation

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

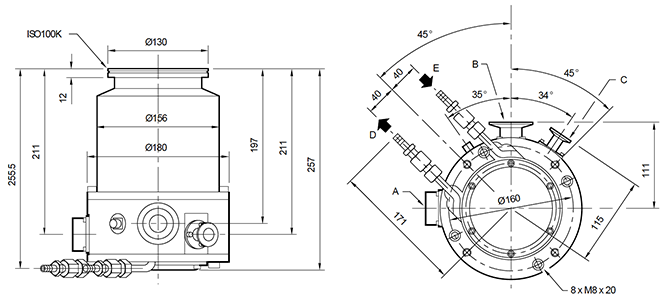

Inlet flange ISO-100K
Outlet port KF-40
Purge port KF-10
Water cooling fitting PT1/4
Pumping speed
    N2 300 l/s
    H2 200 l/s
Compression ratio
    N2 > 108
    H2 103
Ultimate pressure w/ bake out heating     10-7 Pa (10-9 Torr)
Max. continuous outlet pressure 665 Pa (5 Torr)
Max. nitrogen throughput 2,500 sccm
Rated speed 48,000 rpm
Starting time 4 min
Max inlet flange temperature 120°C
Input voltage 100 to 120
Power consumption 0.6 kVA
Weight 15 kg
Type Label Description Download
BOC Edwards STP-301/451 Series Instruction Manual Download
Edwards STP Series Instruction Manual Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards STPH301C Turbomolecular Vacuum Pump - NEW

P/N B719-01-010 / B71901010  STPH301C  ISO-100K
P/N YT34-0Z-004 / YT340Z004  STPH301C  DN 100 CF
P/N YT34-16-001 / YT3416001  STPH301CV  ISO-100F TMS
