Kinney KC 8 - NEW

Starting at $4,652
In stock
Only %1 left
SKU
NEW_KC8
Weight 120 lbs
Motor Power 0.75 hp
Pumping Speed 8 cfm
Ultimate Pressure 2 x 10-4 Torr

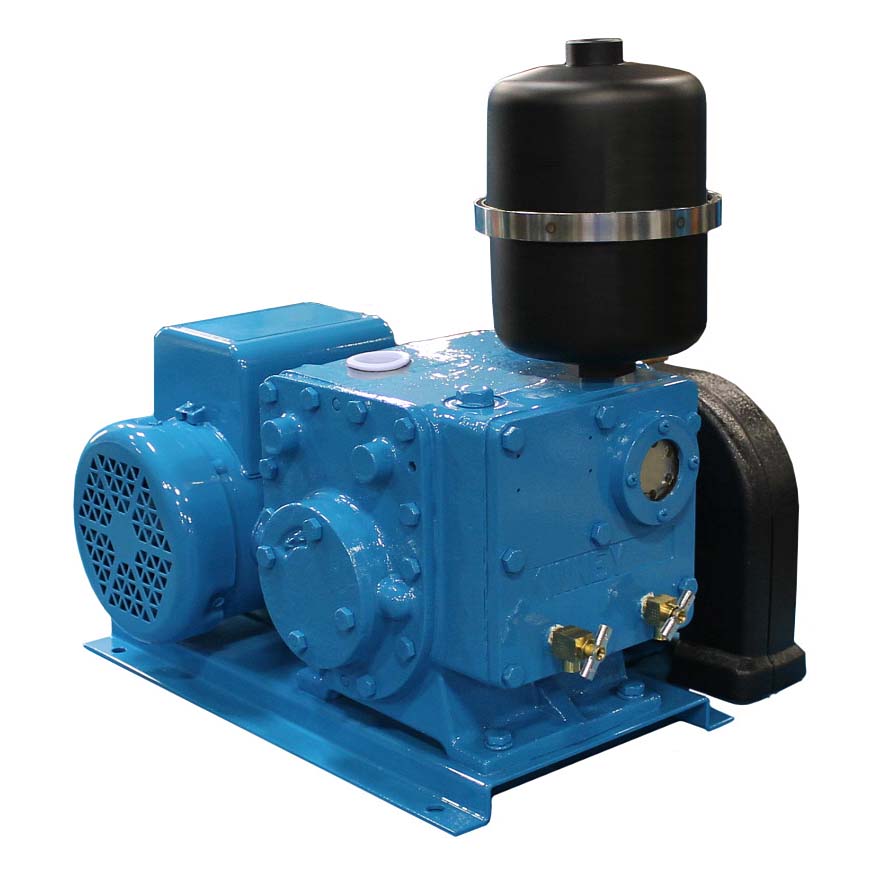

Kinney KC 8 Rotary Piston Vacuum Pump - NEW

KC pumps are air-cooled. Adjustable gas ballast valves are standard for handling water and other vapor loads.

Features:

  • Recommended for applications where operating pressure is   below 0.1 Torr (0.13 mbar)
  • Achieve lowest possible pressures from mechanical pumps
  • Rugged and reliable
  • No metal-to-metal contact between pump piston & cylinder - clearances are filled with oil
  • Unequaled durability, even in dirty applications

Motor Power (hp): 0.5

Pumping Speed (cfm): 8

Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!







MODEL



NOMINAL DISPLACEMENT

ACFM / m3/h





MOTOR

HP / kW







RPM





OIL CAPACITY

Quarts/Liters



MAX. GAS BALLAST FLOW

%



GAS BALLAST PRESSURE

Torr / mbar



ULTIMATE PRESSURE

MICRONS / mbar



NOISE LEVEL AT 0.1 TORR

(0.13 mbar)

dB(A)

KC-5

5 / 8.5

0.33 / 0.25

638

0.8 / 0.76

15

0.02 / 0.027

0.2 / 0.00027

75





KC-8



8 / 13.6

1-Phase: 0.75 / 0.56

3-Phase:

0.5 / 0.37



1022



0.8 / 0.76



15



0.02 / 0.027



0.2 / 0.00027



78

KC-15

15 / 25.5

1 / 0.75

572

3.0 / 2.84

15

0.02 / 0.027

0.2 / 0.00027

75

Specs

Type Label Description Download
Kinney KC Series - NEW OPERATOR’S MANUAL Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
