Kinney KDH 130 - NEW

Starting at $17,856
In stock
Only %1 left
SKU
NEW_KDH130
Weight 755 lbs
Motor Power 5 hp
Pumping Speed 134 cfm
Ultimate Pressure 1.3 x 10-2 mbar

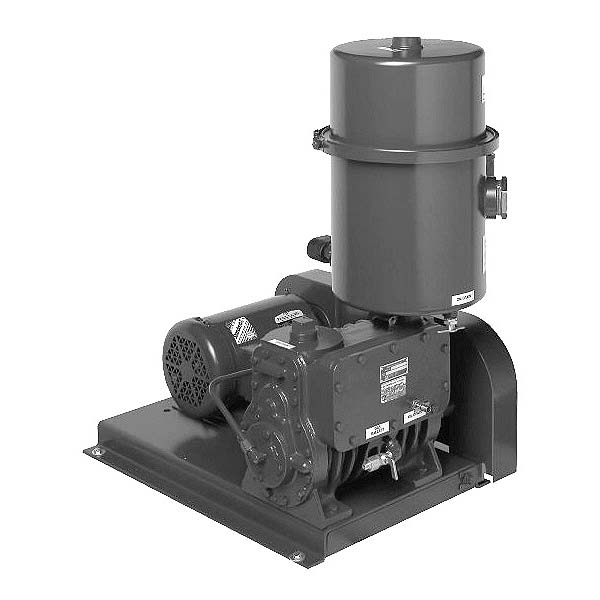

Kinney KDH 130 Single-Stage Duplex Rotary Piston Pump - NEW

KD pumps are air-cooled and KDH pumps are water-cooled.

Features:
• Absolute pressures down to the low micron range
• Belt-driven, low-speed rotary piston pumps
• No small orifices to plug up
• Rugged and reliable
• No metal-to-metal contact between pump piston & cylinder - clearances are filled with oil
• Adjustable gas ballast permits handling of condensible vapors

Motor Power (hp): 5

Ultimate Pressure (Torr): 0.009

Pumping Speed (cfm): 134

Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!





MODEL



CAPACITY

ACFM / m3/h





HP / kW





RPM



OIL CAPACITY

GAL / Liter



WATER (80°F)

GPM / L/min

GAS BALLAST FLOW (MAX)

%

BLANK-OFF (5% GAS)

Torr / mbar

ULTIMATE PRESSURE

MICRONS / mbar

KD-30

33 / 56

1.5 / 1.11

571

1 / 3.78



Air-cooled

8%



1.5 / 2







10 / 0.013

KD-50

52 / 88

2 / 1.5

900

3 / 11.34

6%

KDH-130

134 / 227

5 / 3.7

546



6 / 22.68

.75* / 3

6%



1.0 / 1.3

KDH-150

165 / 280

7.5 / 5.6

684

.75 / 3

5%

Specs

Type Label Description Download
Kinney KDH Series - NEW OPERATOR’S MANUAL Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
