Kinney KT 500D - REBUILT
Call for Price
| Weight | 2,625 lbs |
|---|---|
| Motor Power | 30 hp |
| Pumping Speed | 500 cfm |
| Ultimate Pressure | 0.010 Torr |

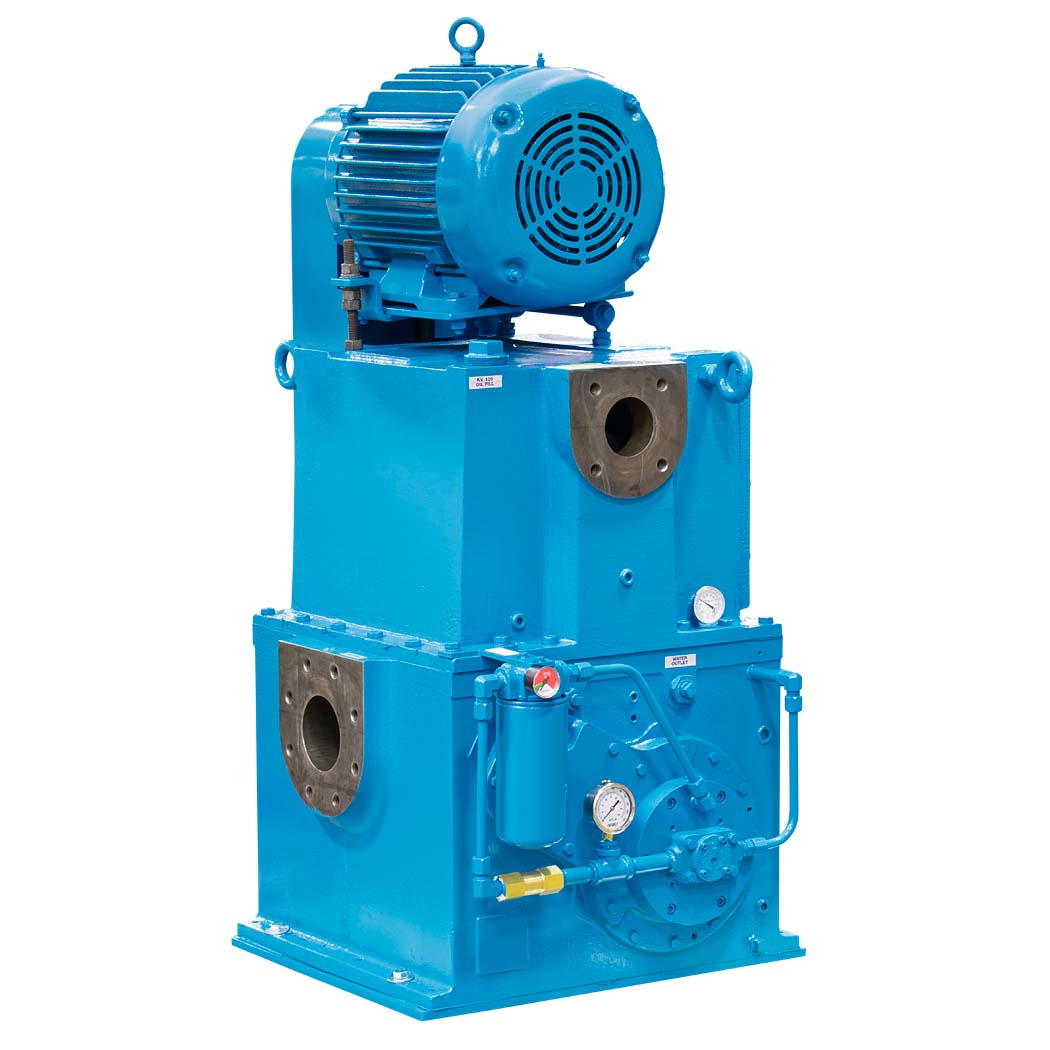

Kinney KT-500D Rotary Piston Vacuum Pump - REBUILT
The KT-Series pump has an oil circulating pump to provide adequate lubrication at all pressures including atmosphere. The vacuum pump has three cams and pistons pumping in parallel, driven by a common shaft. The cams are positioned on the shaft so as to dynamically balance moving parts to eliminate vibration. We also offer repair service backed by a one year warranty. Mist filters are sold separately.
Features
- Full pumping speed down to 1.33 Pa
- Operate continuously at any pressure up to 1.3 x 104 Pa
- Ultimate pressure 1.33 Pa (McLeod gauge)
- No metal-to-metal contact in pumping chamber
- Adjustable gas ballast permits handling of condensable vapors
- Durability even in dirty applications
Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Free air displacement | 490 cfm (840 m3/h) |
| Motor power | 30 hp |
| Rotation speed | 721 RPM |
| Oil capacity (total / refill) | 15 / 12.5 Gal (57 / 47 L) |
| Cooling water at 60°F | 2.5 GPM (9 l/min) |
| Cooling water inlet connection | 3/8" NPT |
| Suction connection | 6" 150 LB ANSI Flanged |
| Discharge connection | 4" 150 LB ANSI Flanged |
| Height w/o oil mist eliminator | 63 in (1,600 mm) |
| Floor space required | 34 x 38 in |
| Weight | 2,625 lbs |
| Ult. pressure | 10 microns |
| Noise level | 73 dB(A) |
| Type | Label | Description | Download |
|---|---|---|---|
|
Kinney KT Series - REBUILT | OPERATOR’S MANUAL | Download |
