Leybold DIP 12.000 - NEW

Call for Price

In stock
SKU
NEW_DIP12.000
Weight 225 lbs
Pumping Speed 12,000 l/s
Ultimate Pressure < 5 x 10-7 mbar

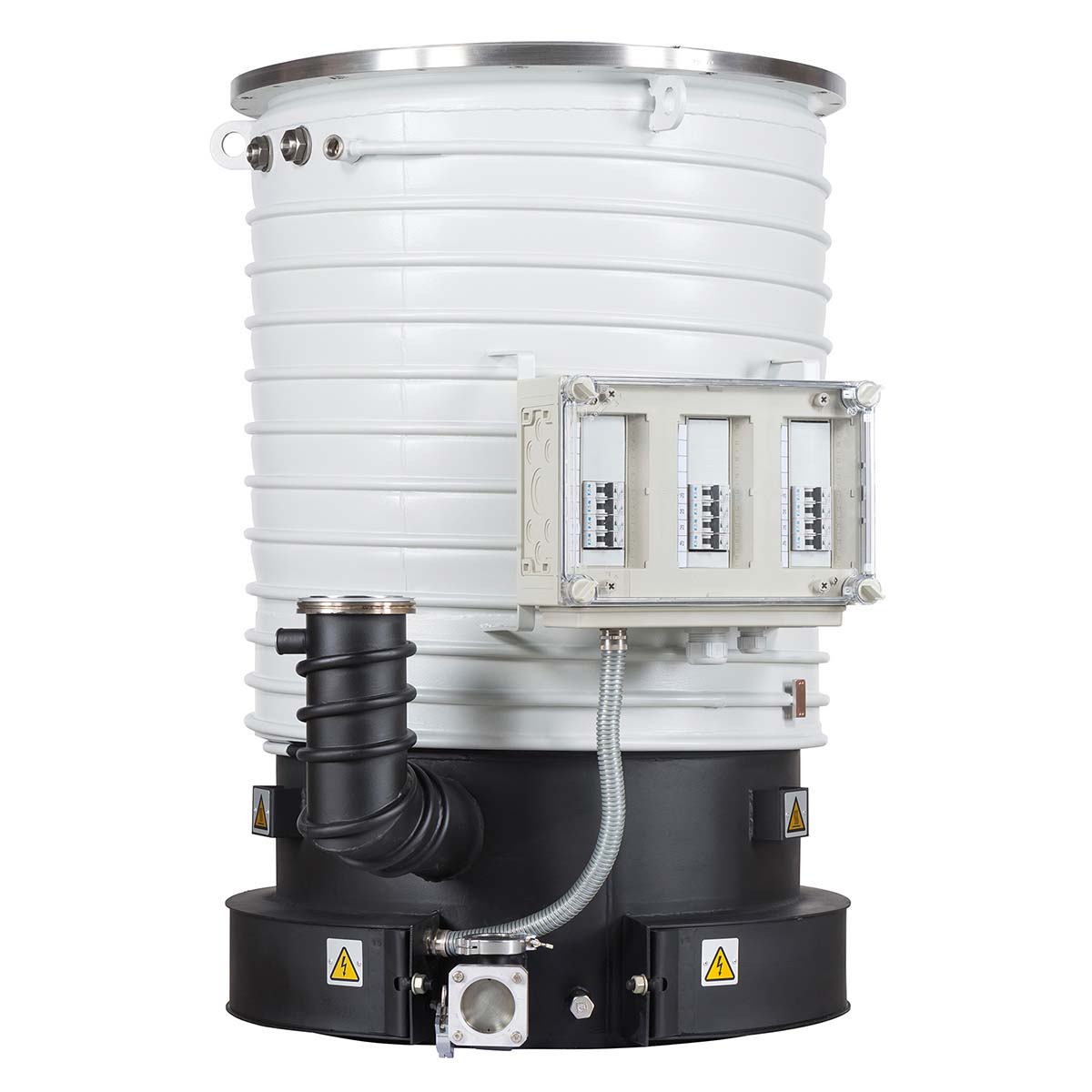

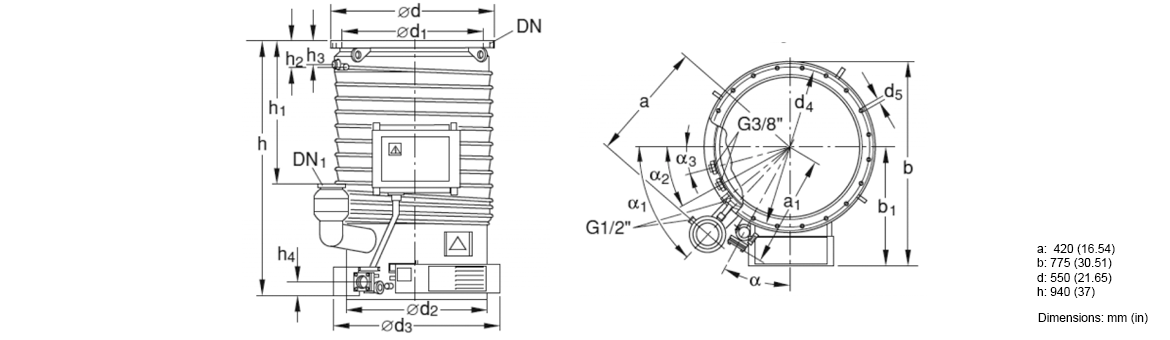

Leybold DIP 12.000 High Vacuum Diffusion Pump - NEW

The pumps in the DIP series are high-vacuum pumps (<10-2 mbar). They are always operated in conjunction with forevacuum pumps. The DIP series pumps are water cooled and utilize the oil diffusion principle in their operation. They are employed in high-vacuum technology to evacuate vacuum chambers. They achieve their highest pumping speeds in pressure ranges from 10-2 to 10-7 mbar.

The diffusion pumps in the DIP series comprise the following component assemblies:

  • Water-cooled pump housing with high-vacuum, and forevacuum connection flanges
  • Nozzle assembly
  • Vaporization chamber with heating elements
  • Cold cap baffle
  • Forevacuum baffle
  • Energy Efficiency Control or electrical junction box

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!



Technical Data

DIP 3 000

DIP 8 000

DIP 12 000

High vacuum / forevacuum connection         DN

250 ISO-K/63 ISO-K

400 ISO-K/63 ISO-K

500 ISO-K/100 ISO-K

Pumping speed for air 1)

below 1 x 10-4 mbar                                           l/s



3 000



8 000



12 000

Operating range                                  mbar (Torr)

< 10-2 to 10-7 (0.75 x 10-2 to 0.75 x 10-7)

Ultimate total pressure 1)                                 mbar (Torr)

< 5.0 x 10-7 (3.75 x 10-7)

Max permissible forevacuum

pressure                                               mbar (Torr)

6.0 x 10-2  (4.5 x 10-2)

Pump fluid filling, min  / max                       l (qts)

1.0 / 1.4 (1.1 / 1.5)

1.7 / 3.4 (1.8 / 3.6)

2.4 / 5.3 (2.5 / 5.6)

Mains connection

Standard EURO, 50/60 Hz                             V

Standard Americas, 50/60 Hz                        V

Special, 50/60 Hz                                           V



230 ~ 1 Ph

230 ~ 1 Ph



400 ~ 3 Ph Y

460 ~ 3 Ph Y

230 ~ 3 Ph ∆



400 ~ 3 Ph Y

460 ~ 3 Ph Y

230 ~ 3 Ph ∆

Heating power                                                 kW

2.4

4.8

7.2

Number of heating cartridges

2

6

9

Heating up time                                               min

< 25

Cooling water (minimum)

for pump 2)                                                         l/h (gal/min)

for cold cap baffle                         l/h (gal/min)

max supply pressure                       bar (psig)



160 (0.7)

20 (0.09)

6 (87)



290 (1.28)

30 (0.13)

6 (87)



500 (2.2)

50 (0.22)

6 (87)

Number of cooling circuits

(including cold cap baffle)



2

Cooling water connection

for pump                                              G (BPS)

for cold cap baffle                               G (BPS)



3/8"

1/4"



1/2"

3/8"



1/2"

3/8"

Weight, approx                                         kg (lbs)

29 (64)

70 (154)

102 (225)

Recommended backing pump 3)

at operating pressures

> 10-4 mbar (> 0 75 x 10-4 Torr) at operating pressures

< 10-4 mbar (< 0 75 x 10-4 Torr)





TRIVAC D 65 B + W 251





SV 300 + W 251 TRIVAC D 65 B + W 251



SV 300 + W 501 TRIVAC D 65 B + W 251

Specs

Type Label Description Download
Leybold DIJ & DIP Series - NEW Instruction Manual Download
<
