Leybold RUVAC WH / WHU 2500 - NEW
Call for Price
| Weight | 926 lbs |
|---|---|
| Motor Power | 10.06 hp |
| Pumping Speed | 2,500 m3/h |
| Ultimate Pressure | 1.12 x 102 Torr |

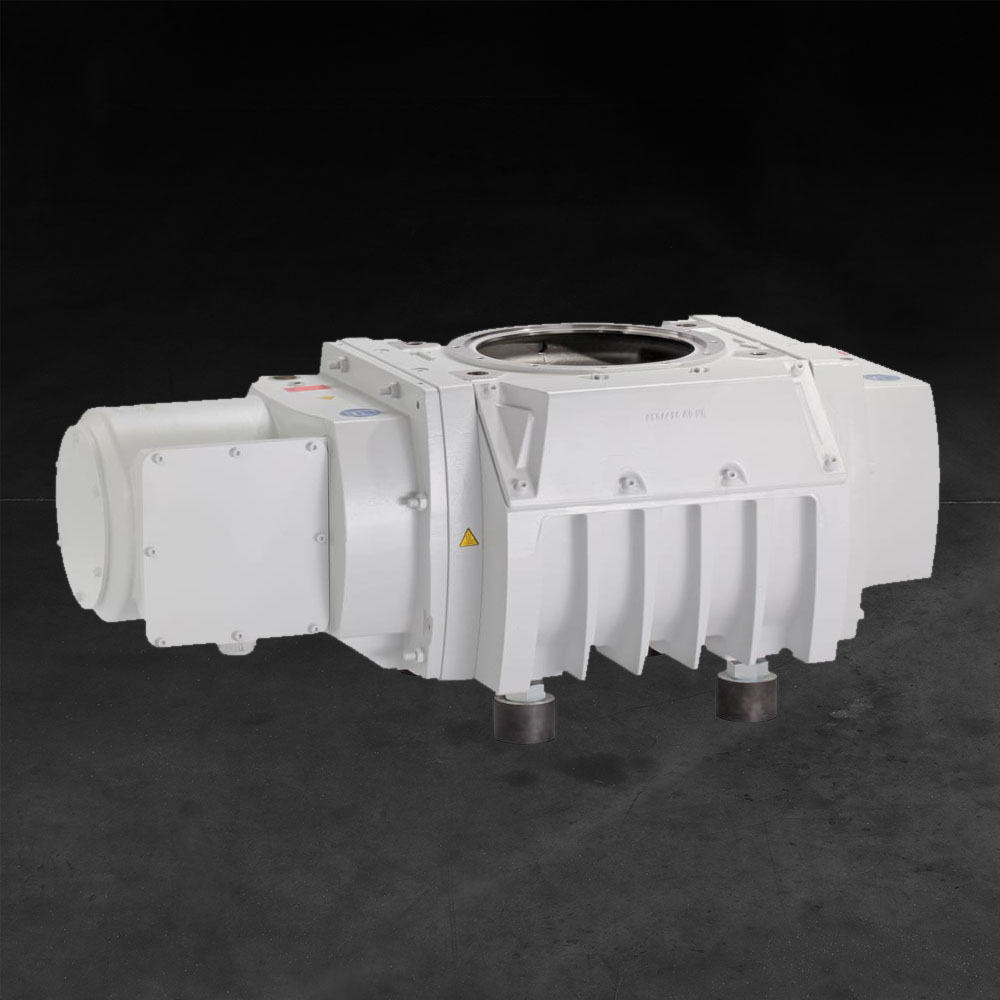

Leybold RUVAC WH / WHU 2500 Roots Vacuum Blower - NEW
The RUVAC WH and RUVAC WHU are Roots boosters driven by water cooled hermetically sealed motors. The WHU types have a pressure balance line between the discharge and intake flanges. The RUVAC WH and WHU are lubricated with synthetic oil or perfluorized polyether (PFPE). Only specially prepared RUVAC WH / WHU PFPE pumps can be used for pumping oxygen greater than atmospheric concentration. Only RUVAC WH / WHU PFPE pumps can be used for pumping very aggressive or hazardous gasses.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Nominal pumping speed | 50 Hz: 2,500 m3 x h-1 | 60 Hz: 3,000 m3 x h-1 | |
| Max. effective pumping speed w/ backing pump | 50 Hz: 2,200 m3 x h-1 | 60 Hz: 2,500 m3 x h-1 | |
| Max. permissible pressure difference during continuous operation | 50 Hz: 50 to 75 mbar | 60 Hz: 40 to 60 mbar | |
| Leak rate, integral | 1 x 10-5 | ||
| Nominal power rating | FC : 11.0 kW | WH: 6.5 kW | WHU: 15.0 kW |
| Idle mode power consumption | 0.7 kW | ||
| Energy efficiency class | IE 2 | ||
| Nominal speed | 50 Hz: 3,000 rpm / 60 Hz: 3,600 rpm | ||
| Max. permissible speed | 6,000 rpm | ||
| Energy efficiency class | IE 2 | ||
| Nominal speed, approx. | 50 Hz: 3,000 rpm | 60 Hz: 3,600 rpm | |
| Max. permissible speed | 6,000 rpm | ||
| Type of protection | IP 54/55 | ||
| Cooling water connection | 1/4", female | ||
| Cooling water quantity | 1 to 3 l/min | ||
| Cooling water admission temperature | +5 to +35°C | ||
| Permissible cooling water temperature | 2 to 6 bar | ||
| Inlet flange | ISO-K 250 | ||
| Outlet flange | ISO-K 100 | ||
| Lubricant | 1.2 l | ||
| Weight | 390/420 kg | ||
| Noise level | < 63 dB(A) |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold RUVAC WH / WHU Series - REBUILT | Instruction Manual | Download |
|
Leybold RUVAC Series - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold RUVAC WH / WHU 2500 Roots Vacuum Blower - P/N type frequency converter voltage discharge oil power 155 250V WH 2500 internal 400 V GS LVO 410 11 kW (100 Hz) 155 251V WH 2500 internal 400 V MS LVO 410 11 kW (100 Hz) 155 252V WH 2500 internal 400 V GS LVO 210 11 kW (100 Hz) 155 253V WH 2500 internal 400 V MS LVO 210 11 kW (100 Hz) 155 254V WH 2500 internal 200 V GS LVO 410 11 kW (100 Hz) 155 260V WH 2500 external 400 V GS LVO 410 11 kW (100 Hz) 155 261V WH 2500 external 400 V MS LVO 410 11 kW (100 Hz) 155 262V WH 2500 external 400 V GS LVO 210 11 kW (100 Hz) 155 263V WH 2500 external 400 V MS LVO 210 11 kW (100 Hz) 155 264V WH 2500 external 200 V MS LVO 410 11 kW (100 Hz) 155 265V WH 2500 external 200 V GS LVO 410 11 kW (100 Hz) 155 267V WH 2500 external 200 V GS LVO 210 11 kW (100 Hz) 155 270V WH 2500 none 400 V GS LVO 410 6.2/7.4 kW (50/60 Hz) 155 271V WH 2500 none 400 V MS LVO 410 6.2/7.4 kW (50/60 Hz) 155 272V WH 2500 none 400 V GS LVO 210 6.2/7.4 kW (50/60 Hz) 155 273V WH 2500 none 400 V MS LVO 210 6.2/7.4 kW (50/60 Hz) 7850016V* WH 2500 external 200 V MS PFPE 11 kW (100 Hz) 7850017V* WH 2500 external 400 V MS PFPE 11 kW (100 Hz) 155 280V WHU 2500 none 400 V GS LVO 410 6.2/7.4 kW (50/60 Hz) 155 281V WHU 2500 none 400 V MS LVO 410 6.2/7.4 kW (50/60 Hz) 155 284V WHU 2500 none 200 V GS LVO 410 6.2/7.4 kW (50/60 Hz) 155 285V WHU 2500 none 200 V MS LVO 410 6.2/7.4 kW (50/60 Hz) 155 288V WHU 2500 none 400 V GS LVO 210 6.2/7.4 kW (50/60 Hz)
