Leybold SOGEVAC SV120B - REBUILT

Call for Price

In stock
SKU
REBUILT_SV120B
Weight 207 lbs
Motor Power 3.22 hp
Pumping Speed 110 m3/h
Ultimate Pressure ≤ 5 x 10-1 mbar

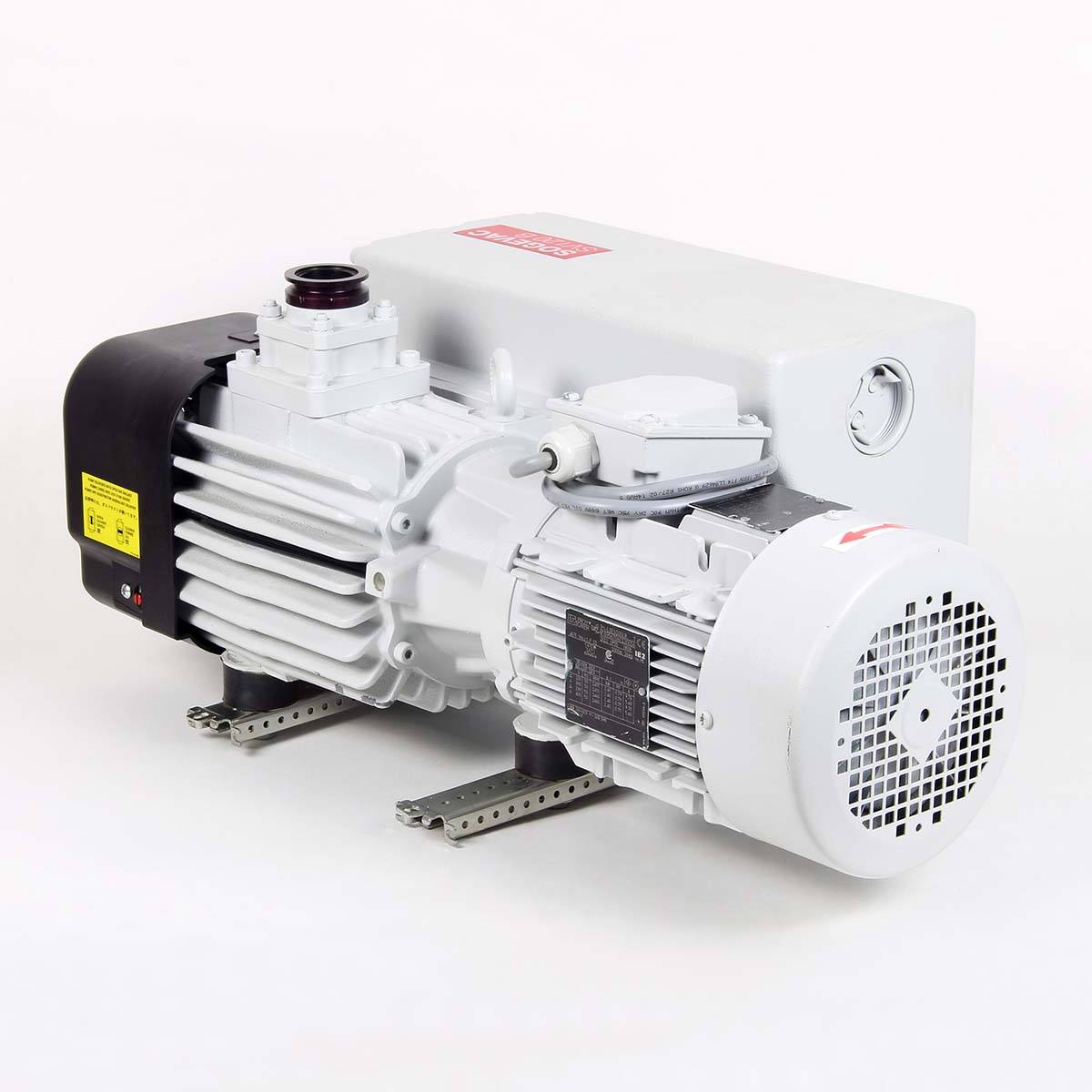

Leybold SOGEVAC SV120B Rotary Vane Vacuum Pump - REBUILT

The new SOGEVAC range of rotary vane vacuum pumps is setting new standards and offers following major characteristics:

  • Operating fluid: LEYBONOL LVO 130
  • Pumping speed (50 Hz): 110 m³/h
  • Pumping speed (60 Hz): 120 m³/h
  • Ultimate pressure: 0.5 mbar
  • Compact design and small footprint
  • Very low and constant noise level in any working condition
  • Integrated functions, no external pipe
  • No motor coupling up to SV65B
  • Variant concept / specific customer configurations
  • ATEX versions for categories 2 and 3, from SV40B to SV100B
  • Simplified maintenance

All this without any concession to the high technical performance of the SOGEVAC pumps such as ultimate pressure, pump-down time, water vapor tolerance…

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Nominal Speed 130 m3 x h-1
Pumping speed 110 m3 x h-1
Ultimate partial pressure w/o gas ballast ≤ 0.5 mbar
Ultimate total pressure with standard gas ballast     ≤ 1.5 mbar
Water vapor tolerance w/ standard gas ballast 30 mbar
Permissible water vapor load 1.6 kg x h-1
Motor power 2.4 kW
Rated rotational speed 1,500 min-1
Noise level 61 dBA
Oil capacity 2 l
Weight 94 kg / 207 lbs

Specifications

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold SOGEVAC SV120B Rotary Vane Vacuum Pump - REBUILT

Part no. 960557 / 960 557
Pumping speed: 110 m3/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 220-230 / 380-400V, +/- 10%, 50Hz // 230 / 400-460V, +/- 10%, 60Hz
w/ standard gas ballast valve - w/ oil filter

Part no. 960551 / 960 551
Pumping speed: 110 m3/h
Ultimate pressure: < 0.5 mbar
Three-phase motor: 220-230 / 380-400V, +/- 10%, 50Hz // 230 / 400-460V, +/- 10%, 60Hz
w/ small gas ballast valve - w/out oil filter

Part no. 960553 / 960 553
Pumping speed: 110 m3/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 220-230 / 380-400V, +/- 10%, 50Hz // 230 / 400-460V, +/- 10%, 60Hz
w/ small gas ballast valve - w/ oil filter

Part no. 960572 / 960 572
Pumping speed: 110 m3/h
Ultimate pressure: < 0.5 mbar
3-phase motor: 220-230 / 380-400V, +/- 10%, 50Hz // 230 / 400-460V, +/- 10%, 60Hz
w/ standard gas ballast valve - w/out oil filter

Operating fluid: LEYBONOL LVO 130
