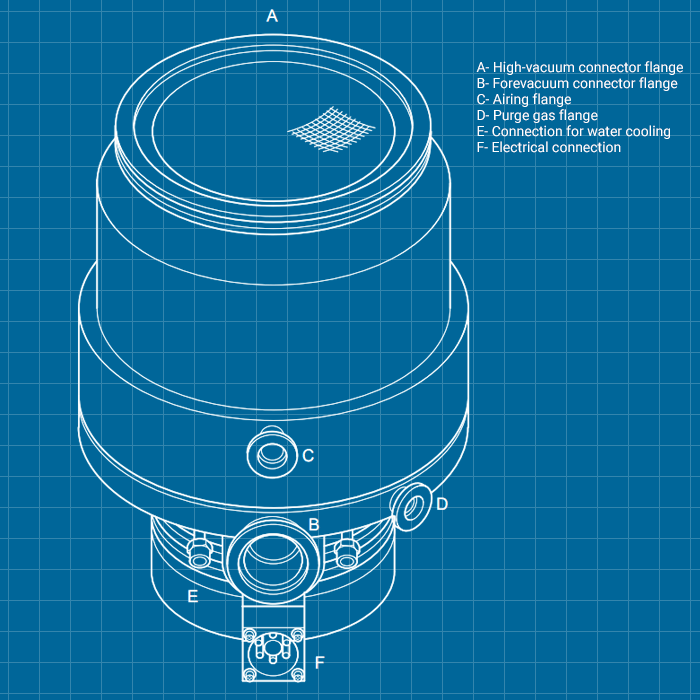

Leybold TURBOVAC 1000 C - NEW
Call for Price
| Weight | 55.10 lbs |
|---|---|
| Pumping Speed | 850 l/s |
| Ultimate Pressure | < 1 x 10-10 mbar |
Leybold TURBOVAC 1000 C Turbomolecular Vacuum Pump - NEW
The TURBOVAC turbomolecular vacuum pumps with mechanical rotor suspension are used in the pressure range from 10-1 mbar (0.75 x 10-1 Torr) to 10-10 mbar (0.75 x 10-1 Torr). Pumping speeds for air vary from 35 l/s to 2,400 l/s. Because of its compact design, the most reliable ceramics ball bearings and the simplicity of operation, this line of pumps is used in all high vacuum and ultrahigh vacuum areas of application.
Typical Applications
- Evaporation and sputtering
- Metallurgy
- Research systems
Technical Features
- Robust rotor design
- Installation in any orientation
- Highest pumping speed and highest throughput
- Bearing temperature measurement through the TURBO.DRIVE TD 20 classic
- Seal gas connection
- Venting connection
Advantages to the User
- Installation in any orientation
- Highly reliable due to hybrid ceramic ball bearings
- Standard model: water cooling
- Purge gas facility
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
TURBOVAC 1000 / 1100 Comparison

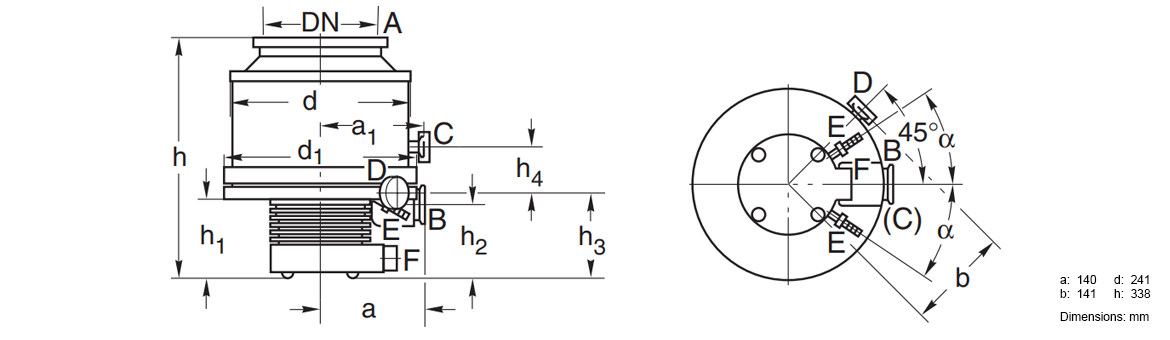

| Inlet flange | DN 160 ISO-K • 100 CF | DN 200 ISO-K • 160 CF | DN 250 ISO-K |
| Pumping speed | |||
| N2 l/s | 850 | 1,100 | 1,150 |
| He l/s | 880 | 975 | 1,000 |
| H2 l/s | 900 | 970 | 1,000 |
| Max. gas throughput | |||
| N2 mbar x l/s | 6.5 | ||
| Compression ratio | |||
| N2 | > 109 | ||
| He | 5 x 104 | ||
| H2 | 2 x 103 | ||
| Ultimate pressure mbar (Torr) | < 10-10 (< 10-10) | ||
| Operating speed | 36,000 min-1 | ||
| Run-up time at 95% speed of nominal speed | 9 min | ||
| Max. continuous inlet pressure mbar (Torr) | 1 x 10-2 (0.75 x 10-2) | ||
| Foreline connection | KF40 | ||
| Mounting position | Any | ||
| Bearing type | Grease/ceramic ball bearing | ||
| Corrosive version (C) | Yes | ||
| Cooling | Standard: Water • Available: Air | ||
| Recommended forevacuum pump | |||
| Standard | TRIVAC D 25 B / D 40 B | ||
| Purge gas | TRIVAC D 40 B / D 65 B | ||
| Weight | 25 kg (55.1 lbs) | ||
| Frequency converter | TD 20, NT 20, NT 1000/1500 | ||
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold High Vacuum - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold TURBOVAC 1000 C Turbomolecular Vacuum Pump - NEW Part no. 85535 / 855 35 Pumping speed: 850 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 160 ISO-K Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled Part no. 85538 / 855 38 Pumping speed: 850 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 160 ISO-K Connecting flange fore-vacuum: DN 63 ISO-K water-cooled Part no. 85491 / 854 91 Pumping speed: 850 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 160 CF Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled Part no. 15300 / 153 00 Pumping speed: 1,100 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 200 ISO-K Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled Part no. 11764 / 117 64 Pumping speed: 1,100 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 200 CF Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled Part no. 85536 / 855 36 Pumping speed: 1,150 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 250 ISO-K Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled Part no. 85539 / 855 39 Pumping speed: 1,150 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 250 ISO-K Connecting flange fore-vacuum: DN 63 ISO-K water-cooled
