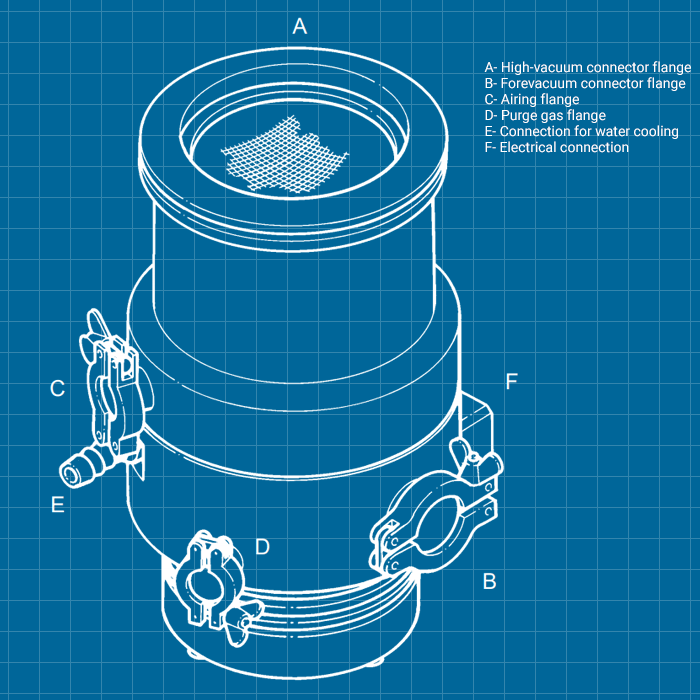

Leybold TURBOVAC 360 - REBUILT
Call for Price
In stock
SKU
REBUILT_TMP360
| Weight | 27 lbs |
|---|---|
| Pumping Speed | 360 l/s-1 |
Leybold Vacuum TURBOVAC 360 Turbomolecular Pump - REBUILT
We offer repair service and are capable of rebuilding, balancing and testing this pump. View our inventory of Leybold Vacuum turbo pumps.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inlet flange | DN 100 ISO-K • 100 CF | DN 160 ISO-K • 160 CF |
| Pumping speed | ||
| N2 l/s | 345 | 400 |
| Ar l/s | 350 | - |
| He l/s | 340 | 380 |
| H2 l/s | 340 | 370 |
| Max. gas throughput | ||
| N2 mbar x l/s | 3.0 | |
| Ar mbar x l/s | 2.5 | |
| Compression ratio | ||
| N2 | 1 x 109 | |
| He | 6 x 104 | |
| H2 | 3 x 103 | |
| Ultimate pressure mbar (Torr) | < 1 x 10-10 (< 0.75 x 10-10) | |
| Ultimate partial pressure mbar | < 10-10 | |
| Max. continuous inlet pressure mbar (Torr) | 5 x 10-2 (4 x 10-2) | |
| Max. foreline pressure for N2 mbar (Torr) | 5 x 10-1 (4 x 10-1) | |
| Foreline connection | KF25, ISO 63 | |
| Mounting position | Any | |
| Bearing type | Grease/ceramic ball bearing | |
| Corrosive version (C) | Yes | |
| Cooling | Standard: Water • Available: Air | |
| Recommended forevacuum pump | Standard: TRIVAC D 16 B • Corrosive: D 25 B | |
| Run-up time at 95% speed | 2 min | |
| Purge / vent port | DN 10 KF | |
| Cooling water connection (hose nozzles) | 10 mm (0.39 in) | |
| Weight | 12 kg (26 lbs) | |
| Max. power consumption / Ultimate pressure | 680 / 480 VA | |
| Frequency converter | NT 150/360 | |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Vacuum TURBOVAC 360 Turbomolecular Pump - REBUILT 85507 DN100 ISO-K 85450 DN100 ISO-K 85451 CF100 85456 CF150 89577 4" ASA 85515 DN100 ISO-K Corrosive
