Leybold TURBOVAC 600 C - NEW
Call for Price
| Weight | 37.5 lbs |
|---|---|
| Pumping Speed | 560 l/s |
| Ultimate Pressure | < 1 x 10-10 mbar |
Leybold TURBOVAC 361 C Turbomolecular Vacuum Pump - NEW
Discontinued
The TURBOVAC turbomolecular vacuum pumps with mechanical rotor suspension are used in the pressure range from 10-1 mbar (0.75 x 10-1 Torr) to 10-10 mbar (0.75 x 10-1 Torr). Pumping speeds for air vary from 35 l/s to 2,400 l/s. Because of its compact design, the most reliable ceramics ball bearings and the simplicity of operation, this line of pumps is used in all high vacuum and ultrahigh vacuum areas of application.
Typical Applications
- Leak detectors
- Mass spectrometers
- Data storage
- Optical coating
- R & D: UHV systems, Particle accelerators
- Load locks and transfer chambers
Technical Features
- Small footprint
- Installation in any orientation
- Oil-free pump for generating clean high and ultrahigh vacuum conditions
- Bearing temperature measurement through the TURBO.DRIVE TD 20 classic
Advantages to the User
- Space-saving
- Easy to integrate into complex vacuum systems
- Low operating costs
- Highly reliable operation also in processes loaded with particles
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

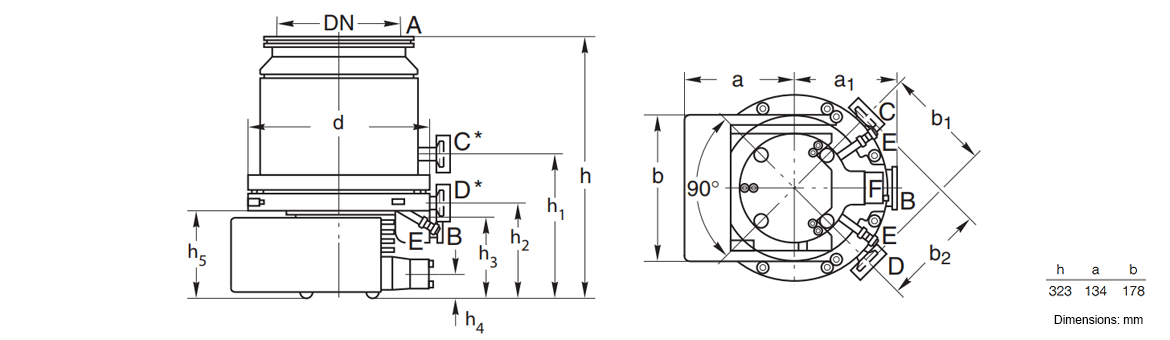

| Connection Inlet DN Outlet DN |
160 ISO-K*160 CF 40 ISO-KF |
| Pumping speed N2 I x s-1 Ar I x s-1 He I x s-1 H2 I x s-1 |
560 550 600 570 |
| Gas throughput N2 mbar · I x s-1 Ar mbar · I x s-1 He mbar · I x s-1 H2 mbar · I x s-1 |
4.0 4.0 5.5 4.0 |
| Compression ratio N2 Ar He H2 |
> 109 > 109 2.0 x 104 1.1 x 103 |
| Ultimate pressure mbar (Torr) | < 1.0 x 10-10 (< 7.5 x 10-11) |
| Max. foreline pressure for N2 mbar (Torr) |
1.0 x 10-1 (7.5 x 10-2) |
| Recommended forevacuum pump | TRIVAC D 25 B / D 40 B |
| Nominal rotation speed min-1 (rpm) | 36 000 |
| Run-up time, approx. min | 3 |
| Max. power consumption W | 400 |
| Power consumption at ultimate pressure W | 90 |
| Admissible ambient temperature °C (°F) | 10 to 55 (50 to 131) |
| Cooling standard optional |
Water Air |
| Cooling water connection | 10 mm hose nozzle |
| Cooling water consumption I x h-1 | 20 to 80 |
| Permissible cooling water pressure bar | 3 to 7 |
| Permissible cooling water temperature °C (°F) | 10 to 30 (50 to 86) |
| Weight kg (lbs) | 17.0 (37.5) |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold High Vacuum - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold TURBOVAC 600 C Turbomolecular Vacuum Pump - NEW Discontinued Part no. 800150V0015 Pumping speed: 560 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 160 ISO-K Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled Part no. 800150V0017 Pumping speed: 560 l/s (Nitrogen) Ultimate pressure: < 1 x 10-10 mbar Connecting flange high-vacuum: DN 160 CF Connecting flange fore-vacuum: DN 40 ISO-KF water-cooled
