Leybold TURBOVAC SL 80 - NEW
Call for Price
In stock
SKU
NEW_TVSL80
| Weight | 6.80 lbs |
|---|---|
| Pumping Speed | 65 l/s |
| Ultimate Pressure | < 2 x 10-10 mbar |

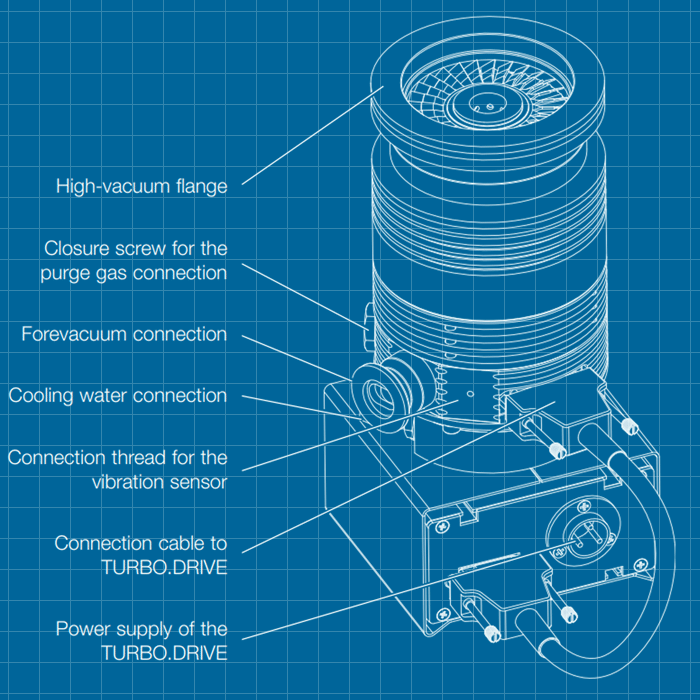

Leybold TURBOVAC SL 80 Turbomolecular Vacuum Pump - NEW
The TURBOVAC turbomolecular vacuum pumps with mechanical rotor suspension are used in the pressure range from 10-1 mbar (0.75 x 10-1 Torr) to 10-10 mbar (0.75 x 10-1 Torr). Pumping speeds for air vary from 35 l/s to 2,400 l/s. Because of its compact design, the most reliable ceramics ball bearings and the simplicity of operation, this line of pumps is used in all high vacuum and ultrahigh vacuum areas of application.
Typical Applications
- Leak detectors
- Mass spectrometers, liquid chromatography, residual gas analysis, mobile analytical systems
- Electron beam microscopy
- XHV/UHV systems
- Transfer chambers
Technical Features
- Oil free pump
- High pressure foreline tolerance
- Excellent resistance to vibration due to proven mechanical bearings
- Efficient convection cooling due to a large number of cooling fins
- Purge gas/venting connection
- Installation in any orientation
- Flexible attachment of the frequency converter to the pump
- Small footprint
- Delayed venting through the frequency converter TURBO.DRIVE TD 400
- Selection of interfaces, RS 232 C, RS 485 C, Profibus
Advantages to the User
- Space-saving
- Easy to integrate into complex vacuum systems
- Prepared for pumping of slightly corrosive gases owing to the seal gas connection
- High reliability, MTTF over 200,000 hours
- Matching accessories (fan, water cooling, seal gas/venting valves, power failure venting valves, flange heaters, different cable lengths, etc.)
- High reliability due to self-monitoring
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| TURBOVAC SL 80 | 800002V3004 | 800002V3002 | 800002V3001 | 800002V3008 | 800002V3005 | 800002V3006 |
|---|---|---|---|---|---|---|
| Inlet connection | DN 40 ISO-K | DN 63 CF | DN 63 ISO-K | DN 63 CF | ||
| Outlet connection | DN 16 ISO-KF | |||||
| Pumping speed | ||||||
| N2 | 40 l/s | 65 l/s | 70 l/s | 65 l/s | ||
| Ar | 34 l/s | 60 l/s | 65 l/s | 60 l/s | ||
| He | 40 l/s | 55 l/s | 50 l/s | 55 l/s | ||
| H2 | 44 l/s | 49 l/s | 45 l/s | 49 l/s | ||
| Gas throughput | ||||||
| N2 | 2.0 mbar x l/s | 3.5 mbar x l/s | 0.9 mbar x l/s | |||
| Ar | 1.6 mbar x l/s | 3.5 mbar x l/s | 0.8 mbar x l/s | |||
| He | 1.2 mbar x l/s | 2.0 mbar x l/s | 1.5 mbar x l/s | |||
| H2 | 0.5 mbar x l/s | 1.0 mbar x l/s | 0.6 mbar x l/s | |||
| Compression ratio | ||||||
| N2 | > 1.0 x 1011 | > 2.0 x 106 | > 1.0 x 1011 | |||
| Ar | ||||||
| He | 2.0 x 106 | 5.0 x 102 | 6.0 x 106 | |||
| H2 | 4.0 x 104 | 2.0 x 102 | 8.0 x 104 | |||
| Ultimate pressure | < 2 x 10-10 mbar / < 1.5 x 10-10 Torr | < 5 x 10-8 mbar / < 3.8 x 10-8 Torr | < 2 x 10-10 mbar / < 1.5 x 10-10 Torr | |||
| Max. foreline pressure for N2 | 16.0 mbar / 12.0 Torr | 3.5 x 10-1 mbar / 2.6 x 10-1 Torr | 16.0 mbar / 12.0 Torr | |||
| Nominal rotation speed | 72,000 min-1 / 72,000 rpm | |||||
| Run-up time | ≈ 1.5 min | |||||
| Max. power consumption | 120 W | |||||
| Power consumption at ultimate pressure | 17 W | |||||
| Protection rating | IP 20 | |||||
| Admissable ambient temperature | +15 to +45°C / +59 to +113°F | |||||
| Cooling standard | Convection | |||||
| Cooling optional | Air / water | |||||
| Cooling water connection | G 1/8", inside thread / 8 mm hose nozzle | |||||
| Cooling water consumption | 15 - 60 l/h | |||||
| Permissible cooling water pressure | 2 - 7 bar | |||||
| Permissible cooling water temperature | +10 to +40°C / +50 to +104°F | |||||

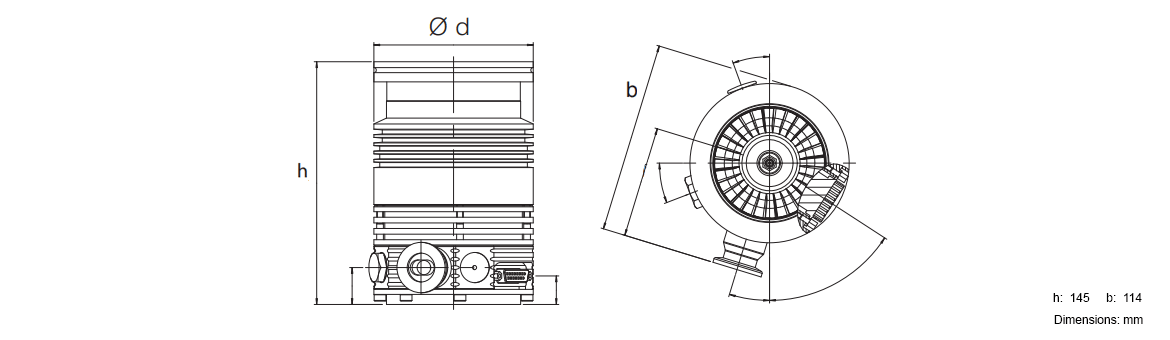

| Weight | ≈ 1.9 kg / ≈ 4.2 lbs | ≈ 3.1 kg / ≈ 6.8 lbs | ≈ 1.9 kg / ≈ 4.2 lbs | |||
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold High Vacuum - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold TURBOVAC SL 80 Turbomolecular Vacuum Pump - NEW SL 80 Part no. 800002V3004 Pumping speed: 40 l/s (Nitrogen) Ultimate pressure: < 2 x 10-10 mbar Connecting flange high-vacuum: DN 40 ISO-KF Connecting flange fore-vacuum: DN 16 ISO-KF Convection-cooled SL 80 Part no. 800002V3002 Pumping speed: 65 l/s (Nitrogen) Ultimate pressure: < 2 x 10-10 mbar Connecting flange high-vacuum: DN 63 CF Connecting flange fore-vacuum: DN 16 ISO-KF Convection-cooled SL 80 Part no. 800002V3001 Pumping speed: 65 l/s (Nitrogen) Ultimate pressure: < 2 x 10-10 mbar Connecting flange high-vacuum: DN 63 ISO-K Connecting flange fore-vacuum: DN 16 ISO-KF Convection-cooled SL 80 C Part no. 800002V3008 Pumping speed: 70 l/s (Nitrogen) Ultimate pressure: < 5 x 10-8 mbar Connecting flange high-vacuum: DN 63 ISO-K Connecting flange fore-vacuum: DN 16 ISO-KF Convection-cooled SL 80 H Part no. 800002V3005 Pumping speed: 65 l/s (Nitrogen) Ultimate pressure: < 2 x 10-10 mbar Connecting flange high-vacuum: DN 63 ISO-K Connecting flange fore-vacuum: DN 16 ISO-KF Convection-cooled SL 80 H Part no. 800002V3006 Pumping speed: 65 l/s (Nitrogen) Ultimate pressure: < 2 x 10-10 mbar Connecting flange high-vacuum: DN 63 CF Connecting flange fore-vacuum: DN 16 ISO-KF Convection-cooled
