M-D Pneumatics 6005 CP - NEW
Call for Price
| Weight | 250 lbs |
|---|---|
| Motor Power | 4-12 hp |
| Pumping Speed | 91-497 cfm |
M-D Pneumatics 6005 CP Rotary Positive Displacement Blower - NEW
CP Series rotary blowers are designed to be interchangeable with equivalent sizes of competitive models. They are rated up to 15 PSIG discharge pressure or 16” Hg dry vacuum.
Features:
- Triple lip seals standard on all models
- Sight glasses standard on all models
- Magnetic drain plugs standard on all models

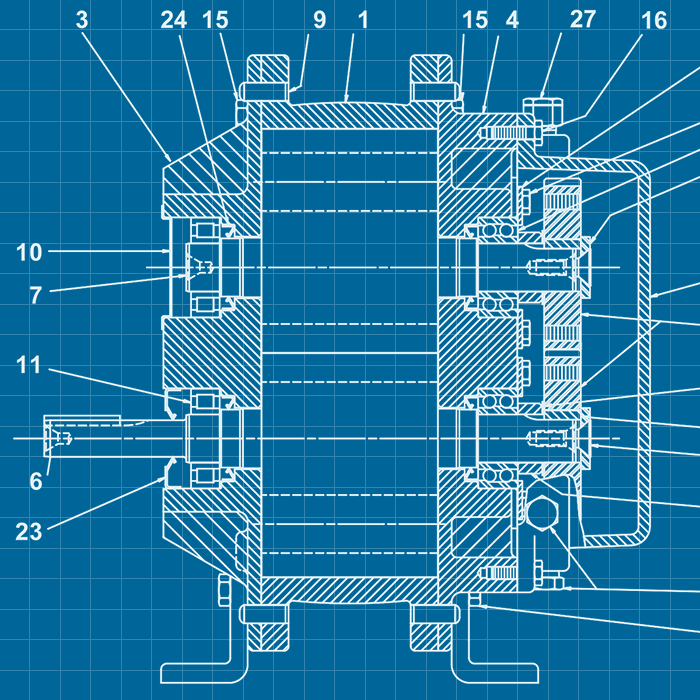

- Timed with precision helical gears, keyed to the rotor shafts
- Include double-row ball bearings at the gear end
- Rotors with integral shafts
- Reduced noise versions available with tri-lobe rotors
- Bi-directional rotation
- Dual oil splash lubrication at both gear and drive ends available on some models
M-D Pneumatics is now part of MD-Kinney, which was formerly known as Tuthill Springfield.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | 6005 | 6008 | 6015 |
| Approximate Oil Capacity1 | |||
| Vertical flow gear end2 | 25.5 oz (754 mL) | ||
| Vertical flow drive end3 | 18.0 oz (532 mL) | ||
| Horizontal flow gear end2 | 16.9 oz (500 mL) | ||
| Horizontal flow drive end3 | 9.0 oz (266 mL) | ||
| Port size | 3 in. (76 mm) | 5 in. (127 mm) | 6 in. (152 mm) |
| Maximum RPM | 2,350 | ||
| Maximum pressure differential* | 15 psi (1,241 mbar) | 14 psi (965 mbar) | 7 psi (483 mbar) |
| Maximum vacuum* | 16 inch-Hg (542 mbar) | 14 inch-Hg (406 mbar) | |
| Maximum temperature rise* | 250°F (139°C) | 240°F (133°C) | 180°F (100°C) |
| MAWP | 17 psi (1,241 bar) | 15 psi (1,034 bar) | |
| Approximate weight | 250 lb (113 kg) | 310 lb (141 kg) | 456 lb (207 kg) |
1 Oil capacities are based on filling from dry condition. Less oil may be needed depending on emptiness of oil reservoir(s) after draining. Always fill the gear housing until oil drips out of the oil level hole. Replace plugs in their respective holes. Following this procedure will ensure proper oil level.
2 Gear End amounts apply to all CP Series blowers.
3 Drive End amounts apply only to Splash Lubrication models.
* Maximum conditions based upon 70°F (21°C) inlet temperature and 14.7 psi (1 bar) absolute inlet pressure.
| Type | Label | Description | Download |
|---|---|---|---|
|
M-D Pneumatics CP Series - NEW | OPERATOR’S MANUAL | Download |
