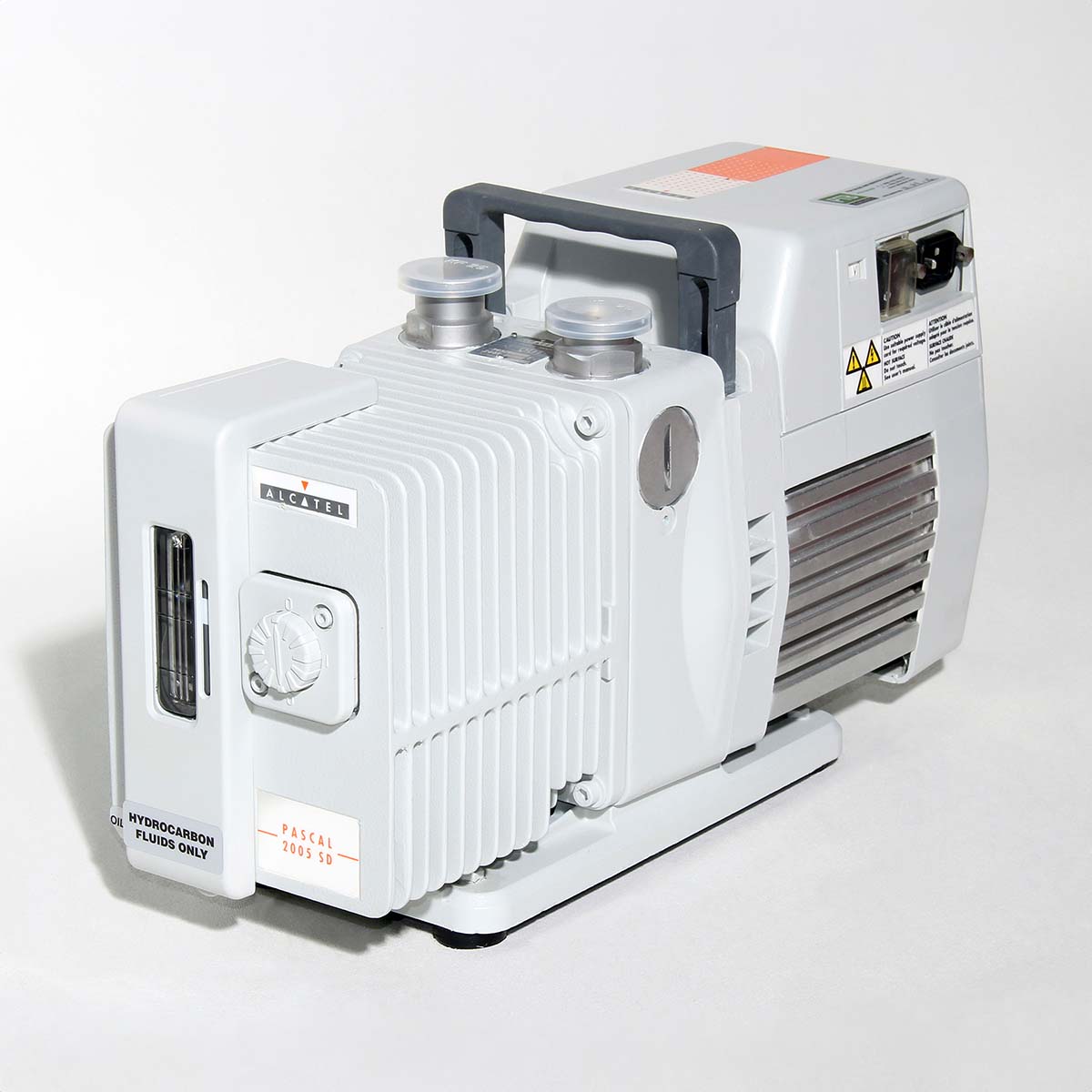

Pfeiffer Adixen Alcatel 2005 - SERVICE

Call for Price

In stock
SKU
SERVICE_Pascal2005
Rotary Vane Vaccum Pumps Expert Technicians

Consumable parts vary with model type. Pricing is determined by model configuration, oil type and hard parts damage.

Alcatel Pascal 2005, 2005C, 2005C1, 2005C2, 2005CP, 2005i, 2005SD - Scope of Work

PTB Sales will perform the following:

1. Incoming Inspection

  • Attach work order to pump
  • Picture taken of mechanical configuration

2. Receipt and Inspection

  • Complete decontamination of internal and external parts
  • Hazardous materials disposed in accordance with environmental regulations
  • Motor Test

3. All parts are inspected and cleaned

  • High Pressure Parts washer
  • Corncobb blaster
  • Glass blaster

4. Parts are dimensionally evaluated

5. Rebuild

  • Stone all plates and rotor
  • Replace shaft seals
  • Replace O-Rings
  • Replace Vanes
  • Replace Valves
  • Install new gaskets

6. Final Test

  • 24 hour burn in test
  • Verify ultimate pressure and current
  • Verify no leaks
  • Verify ABS operation

7. Packaging and Shipping

  • Paint pump
  • Apply all safety and startup labels
  • Test reported completed
  • QC report created
  • Package pump and ship

Exceptional customer service and engineering support. Fast turnarounds. Low prices.

PTB Sales is the national leader in Alcatel vane pump repairs.

Our state of the art 27,853 sq ft remanufacturing facility conforms to ISO 9001 quality standards, and is supported by an engineering team with over 90 years combined experience in vacuum technology. Our pump technicians, led by a factory-trained mechanic, have over 100 years combined experience.

Look no further. Let PTB Sales support your success.

Image Legend

  1. Level plate
  2. Screw FHC M5 x 10
  3. Oil sight glass cover
  4. Oil level sight glass
  5. O-ring c 3.53 - d 63.1
  6. Oil casing
  7. O-ring c 2.7- d 16.9 - Ring R13
  8. Plug G 3/8
  9. Screw CHC M6 x 20
  10. Washer
  11. O-ring c 3 - d 16.5
  12. O-ring c 2.5 - d 33.5
  13. Plug G 1/8
  14. Screw FHC M6 x 12
  15. Stopper M 30 x 1
  16. O-ring c 3.6 - d 29.3
  17. Inlet filter / 17a Inlet nipple
  18. Exhaust valve
  19. Handle brace
  20. Idem 14
  21. Exhaust nipple
  22. Idem 16
  23. Handle
  24. Screw CHC M6 x 40
  25. Idem 24
  26. Washer 33’/63 M3 - 4G
  27. Washer
  28. Screw CHC M5 x 12
  29. Motor
  30. Screw HC M6 - 8 8.8
  31. Motor side coupling
  32. Plastic coupling
  33. Fan coupling
  34. Washer
  35. O-ring c 2.7
  36. Shoulderd ring
  37. Idem 10
  38. Screw CHC M6 x 12
  39. Seal holder
  40. Shalt seal 15 x 25.5 x 4.6
  41. Felt
  42. Central housing
  43. Base
  44. Idem 10
  45. Screw CHC M6 x 16
  46. Gas ballast tube
  47. O-ring c 1.9 - d 5.7 - Ring R5
  48. O-ring c 3 - d 28
  49. Oil case feedthrough
  50. Washer
  51. Washer M4
  52. Screw CHC M4 x 8
  53. Gas ballast sleeve
  54. Gas ballast spring
  55. Gas ballast knob
  56. Idem 50
  57. Idem 52
  58. Gas ballast cover
  59. Idem 8

Request an RMA Return Material Authorization

Procedures for shipping used equipment to PTB Sales:

  • Seal off the exhaust and inlet of the pump.
  • Attach our pump declaration form to the equipment to declare what contaminants the equipment has been exposed to.

There is a $300 Evaluation Fee. This gets applied to the cost of repair.

Questions? Please call our toll free number at 866-332-0500 or send an e-mail to our sales team!
