Pfeiffer HiPace 30 - NEW

Call for Price

In stock
SKU
NEW_HiPace30
Weight 4.41 lbs
Pumping Speed 32 l/s
Ultimate Pressure < 1 x 10-7 mbar

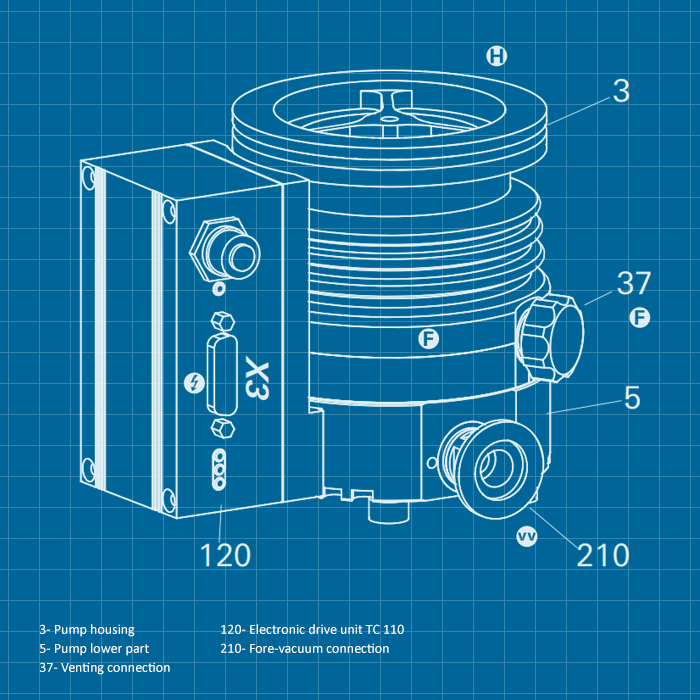

Pfeiffer Vacuum HiPace 30 Turbomolecular Pump - NEW

Small, high-performance turbopump with a pumping speed of up to 32 l/s for N2

Features include:

  • Minimum space requirement due to extremely compact design
  • Integrated drive electronics, suitable for industrial environments - Protection class IP54
  • Maximum reliability through monitoring of operating data

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Bearing Hybrid
Compression ratio
    Ar > 1 x 1011
    H2 3 x 105
    He 3 x 107
    N2 > 1 x 1011
Cooling method, optional Air / water
Cooling method, standard Convection
Cooling water consumption 75 l/h
Cooling water temp. 5-25°C / 41-77°F / 278-298°K
Current max. 5 A
Electronic drive unit TC 110

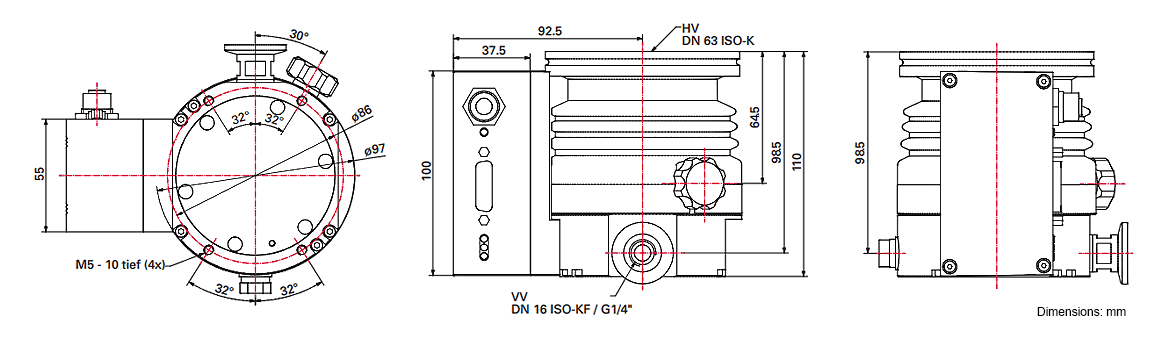

Flange (in) DN 63 ISO-K
Flange (out) DN 16 ISO-KF/G 1/4"
Forevacuum max. for N2 24 hPA / 18 Torr / 24 mbar
Gas throughput at full rotational speed
    Ar 0.22 hPa l/s
    H2 10 hPa l/s
    He 1.84 hPa l/s
    N2 0.66 hPa l/s
I/O interfaces RS-485, Remote
Mounting orientation Any
Operating voltage 24 (± 5%) V DC
Permissible magnetic field max. 3 mT
Power consumption max. 80 W
Protection category IP54
Pumping speed
    Ar 32 l/s
    H2 20 l/s
    He 24 l/s
    N2 32 l/s
Rotation speed ± 2% 90,000 rpm / 90,000 min-1
Rotation speed variable 50 - 100%
Run-up time 1.7 min
Sound pressure level ≤ 48 dB(A)
Ultimate pressure (PNEUROP) < 1 x 10-7 hPa / < 7.5 x 10-8 Torr / < 1 x 10-7 mbar
Ultimate pressure w/out gas ballast < 1 x 10-7 hPa / < 7.5 x 10-8 Torr / < 1 x 10-7 mbar
Venting connection G1/8"
Weight 2 kg / 4.41 lbs

Specs

Type Label Description Download
Pfeiffer HiPace 30 - NEW Data Sheet Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer Vacuum HiPace 30 Turbomolecular Pump - NEW

PMP05280 / PM P05 280  w/ TC 110  DN 63 ISO-K  RS-485, remote
PMP05281 / PM P05 281  w/ TC 110  DN 63 CF-F  RS-485, remote
PMP05282 / PM P05 282  w/ TC 110  DN 40 ISO-KF  RS-485, remote
