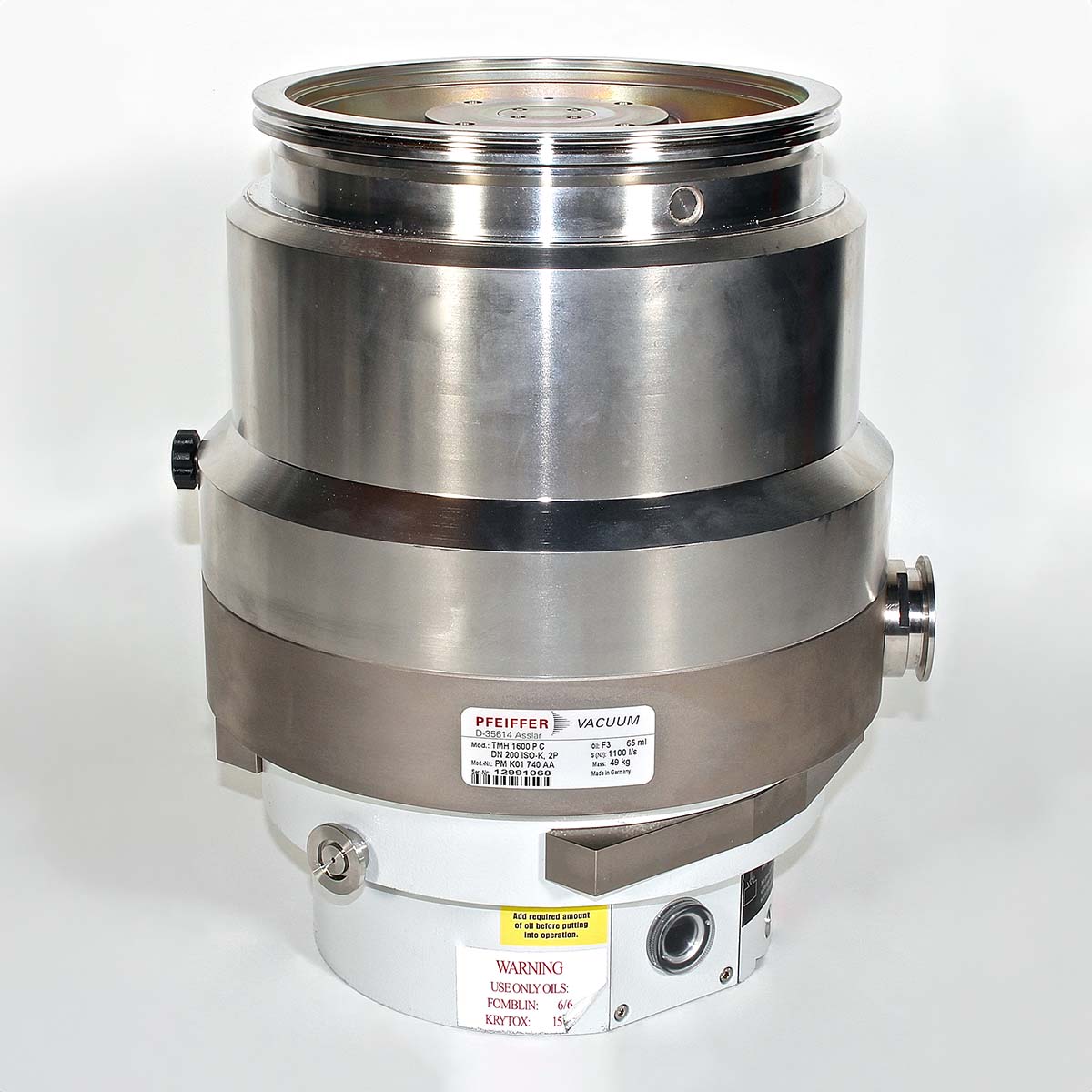

Pfeiffer TMH 1600 PC - REBUILT
Call for Price
In stock
SKU
REBUILT_TMH1600PC
| Weight | 116 lbs |
|---|---|
| Pumping Speed | 1,100 l/s |
| Ultimate Pressure | 1 x 10-10 mbar |

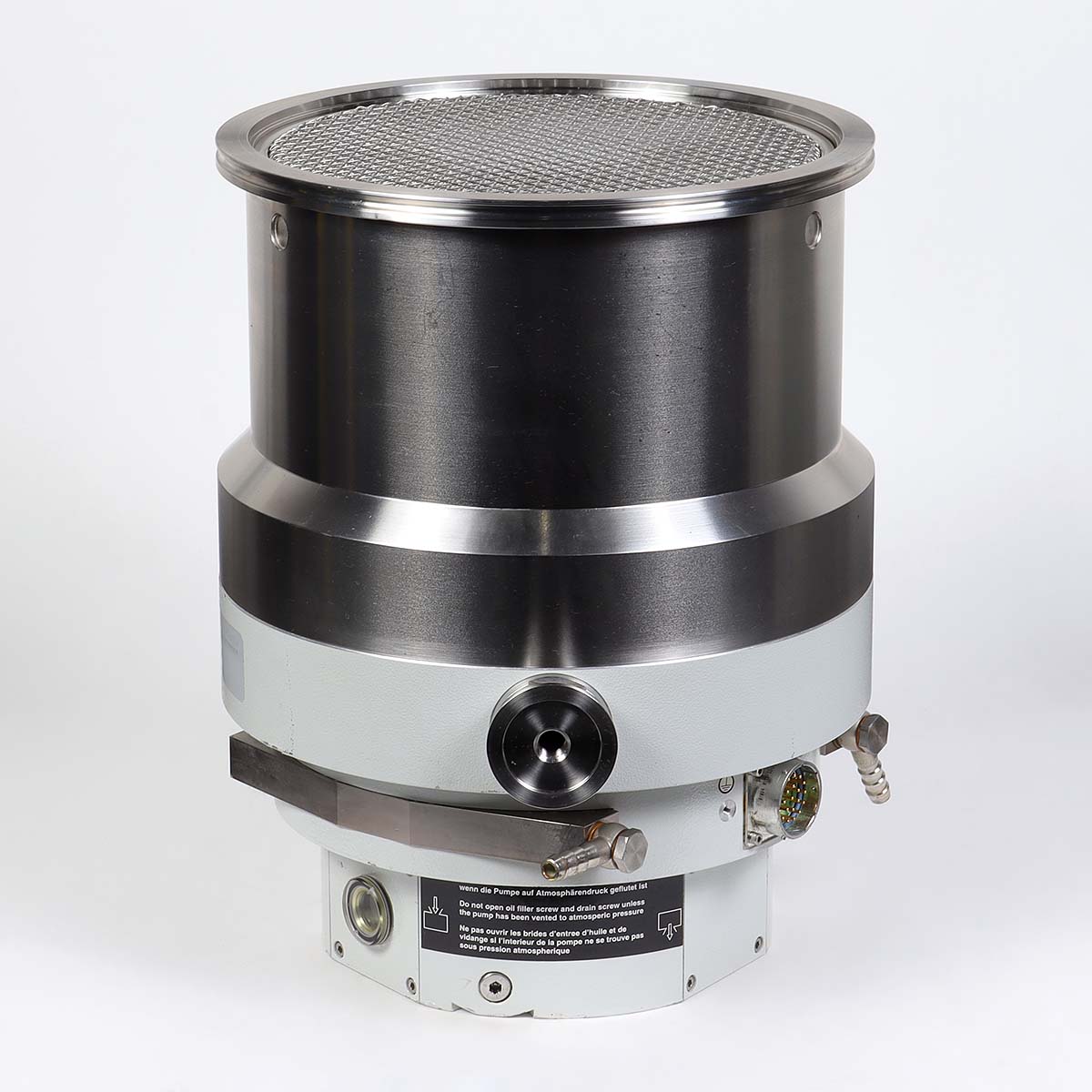

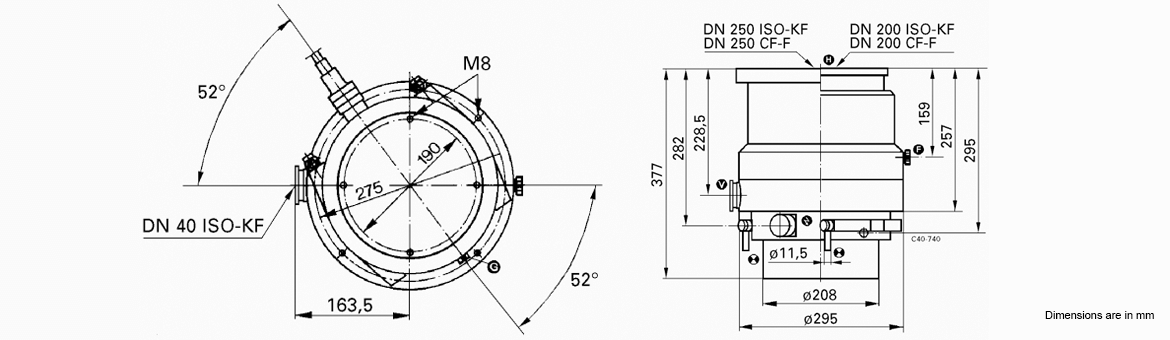

Pfeiffer Vacuum TMH 1600 PC Turbomolecular Pump - REBUILT
Contact us for our used surplus: Pfeiffer Vacuum stations. Let us know the part number that you want to match.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | TMH/TMU 1600 | TMH/TMU 1600 C | ||
|---|---|---|---|---|
| Inlet | DN 200 ISO-K DN 200 CF-F |
DN 250 ISO-K DN 250 CF-F |
DN 200 ISO-K DN 200 CF-F |
DN 250 ISO-K DN 250 CF-F |
| Outlet | DN 40 ISO-KF/G 1/4" | |||
| Venting connection | G 1/8” | |||
| Electronic drive unit | TCP 380/TCP 600 | TCP 600 | ||
| Nominal rotation speed | 36,000 l/min | |||
| Standby rotation speed | 24,000 l/min | |||
| Run-up time (up to 90% of the nominal rotation speed fore-vacuum pressure ≤ 0.1 mbar) | 21/7 min | 7 min | ||
| Final pressure, backing pump | ≤ 5 mbar | ≤ 2.5 mbar | ||
| Maximum permissible rotor temperature | 120°C | |||
| Permissible heat radiation power | 35 W | |||
| Volume flow rate for: | ||||
| N2 | 1,100 l/s | 1,500 l/s | 1,100 l/s | 1,500 l/s |
| He | 1,320 l/s | 1,450 l/s | 1,320 l/s | 1,450 l/s |
| H2 | 1,050 l/s | 1,150 l/s | 1,050 l/s | 1,150 l/s |
| Ar | - | - | 1,050 l/s | 1,400 l/s |
| CF4 | - | - | 850 l/s | 1,100 l/s |
| Compression ratio for: | ||||
| N2 | > 1012 | |||
| He | > 1 x 108 | |||
| H2 | 3 x 106 | |||
| Ar | > 1012 | |||
| CF4 | > 1012 | |||
| Maximum fore-vacuum pressure | ||||
| N2 | 12 mbar l/s | |||
| He | 10 mbar l/s | |||
| H2 | 4 mbar l/s | |||
| Ar | 12 mbar l/s | |||
| CF4 | 12 mbar l/s | |||
| Maximum gas throughput | ||||
| N2 | 51) (10) mbar l/s | |||
| He | 51) (14) mbar l/s | - | ||
| H2 | 41) (17) mbar l/s | - | ||
| Ar | - | 14.52) (5.5) mbar l/s | ||
| CF4 | - | 152) (8) mbar l/s | ||
| Recommended backing pump | ||||
| Rotary vane pump | DUO 010 M | |||
| Diaphragm vacuum pump | MD 4T | MD 4TC | ||
| Dry three stage backing pump | UniDryTM | UniDryTM | ||
| Final pressure w/ | ||||
| DUO 010 M | < 1 x 10-10 mbar | |||
| MD 4T / MD 4TC | ||||
| UniDryTM | ||||
| Lubricant | ||||
| Type3) | TL 011 or F3 | F3 | ||
| Filling volume | 65 | |||
| Max cooling water consumption w/ water at 15°C4) | 100 l/h | |||
| Cooling water temperature | 5-25°C | |||
| Permissible ambient temperature w/ air cooling | 0-35°C | - | ||
| Permissible magnetic field | 3 mT | |||
| Heating power consumption | 170 W | |||
| Weight | 49 / 51 kg | 51 / 53 kg | 51 kg | 51 / 53 kg |
| Noise level | < 47 dB(A) | |||
| Type | Label | Description | Download |
|---|---|---|---|
|
Pfeiffer TMH/TMU 1600 C - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer Vacuum TMH 1600 PC Turbomolecular Pump - REBUILT PMK01740 / PM K01 740 DN 200 ISO-K
