Pfeiffer TPH / TPU 050 - REBUILT
| Weight | 25 lbs |
|---|---|
| Pumping Speed | 33-38 l/s |
| Ultimate Pressure | 1 x 10-10 mbar |

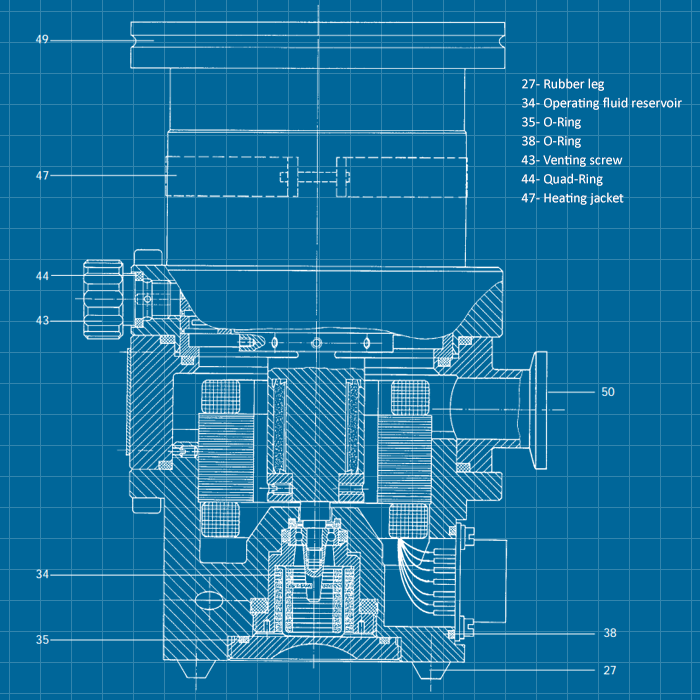

Pfeiffer Balzers TPH / TPU 050 Turbomolecular Vacuum Pump - REBUILT
TPH and TPU models of the Pfeiffer Balzers turbo are identical with regard to their design, the only difference being the intake flange. The TPH pumps have a KF or ISO-K flange, while the TPU pumps have a CF flange. The same letter signification applies to TMU and TMH pumps.
The Pfeiffer Balzers 330, 510 and 2200 are available with the flange being fitted on top or bottom as standard. Both models may also be equipped with a lateral flange by rearranging the pump's support legs. The TPH 330 comes with a six month warranty. We also offer repair services.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
- Inlet: DN 63 CF
- Outlet: DN 16 KF
- Volume flow rate for (l/s): N2 - 50, He - 50, H2 - 43
- Compression ratio for: N2 - 8 x 108 He - 5 x 103 H2 - 5 x 102
- Running (l/m): 90,000
- Standby (l/m): 60,000
- Cooling Standard: convection
- Weight: 6kg
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer Balzers TPH / TPU 050 Turbomolecular Vacuum Pump - REBUILT PMP01350 / PM P01 350 TPH 050 DN 40 ISO-K
PM033244 / PM 033 244 TPH 050 DN 40 ISO-K
PMP01351 / PM P01 351 TPU 050 DN 63 CF PMP01356 / PM P01 356 TPU 050 DN 63 CF
