Agilent Varian Turbo-V 1001 Rack Controller - NEW

Starting at $6,063
In stock
SKU
NEW_TV1001RC

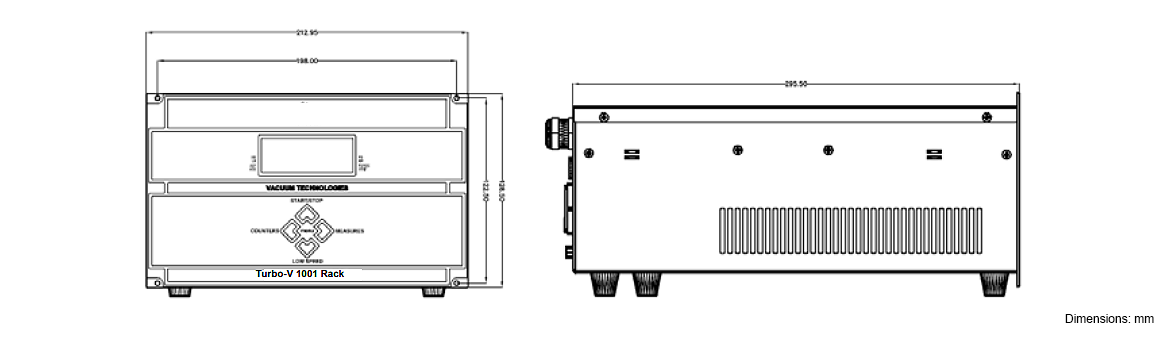

Height 128.5 mm
Width 213 mm
Length 295.50 mm
Weight 13.8 lbs

Agilent Varian Turbo-V 1001 Rack Controller - NEW

The Turbo-V 1001 rack controller is a remote unit designed to operate the TV1001 turbomolecular pump. This 'half-rack' unit can be rack mounted or standalone. The controller drives vent valves and air cooling fans.

Capable of running on worldwide voltage, the Turbo-V 1001 rack controller can be mounted up to 100 m away from the pump, offering data monitoring via its display in addition to analog and serial interfaces.

  • Rack mounting design for an easy integration
  • Pump cable length up to 100 m long for remote controller mounting
  • Ready for Vacuum Link app to gain full control of the pump through your mobile phone
  • RS232/RS485 communication protocols for easy integration
  • Analog I/O provides accurate control of the pump
  • Remote control with A-plus software enables pump operation, control, and recording of system parameters
  • Vent valve and cooling fan driving to get full vacuum system control
  • Universal voltage (100–240 V) enables worldwide operation

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Configuration
  • Remote controller, rack-mounted
For Pump Type
  • Turbo Pump
Maximum Pump Cable Length
  • 100 m
Operating Environment Relative Humidity
  • 90 % maximum non condensing humidity
Operating Environment Temperature
  • 5° C to 45° C
Pump Model Compatibility
  • Turbo-V 1001 Navigator Pump
Standards and Certifications
  • EN 61010-1 (2001)
    EN 61326-1 (2006)
    Emission level : Class B for Residential Application
    Immunity level : for Industrial Application
Weight
  • 6.3 kg

Specs

Type Label Description Download
Agilent Turbo-V 1001 Rack Controller - NEW User Manual Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

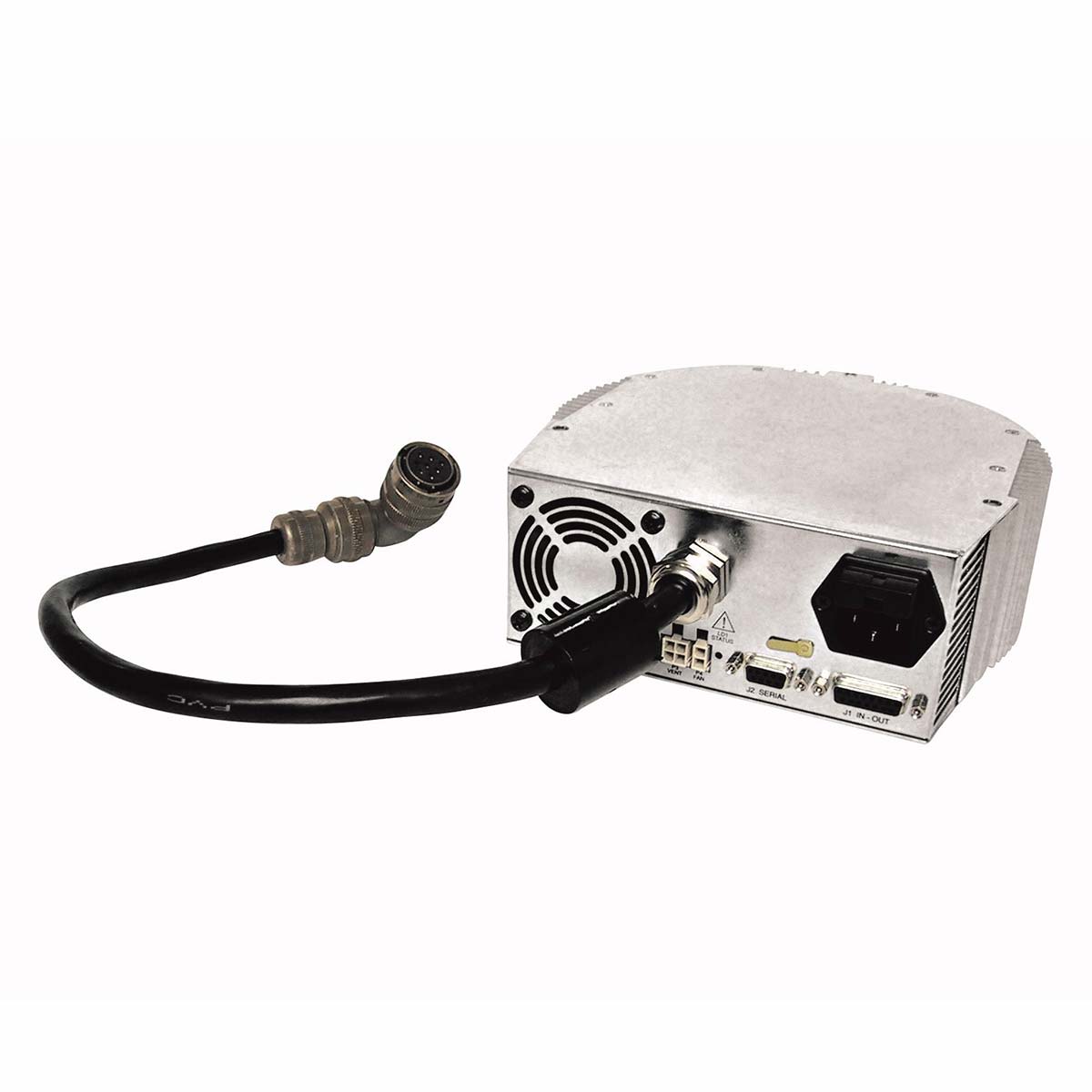

Agilent Turbo-V 1001 Turbomolecular Vacuum Pump Controller - NEW

Rack controller
X350164003 / X3501-64003

Onboard controller
9698978 / 969-8978
