ANEST IWATA ISP-500 - REBUILT

Call for Price

In stock
SKU
REBUILT_ISP500
Weight 84 lbs
Motor Power 0.8 hp
Pumping Speed 21.2 cfm
Ultimate Pressure 7.50 x 10-3 Torr

ANEST IWATA ISP-500 Dry Scroll Vacuum Pump - REBUILT

Rebuilt ANEST IWATA scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Peak speed @ 60 Hz 21.2 cfm
Ultimate pressure 7.5 x 10-3 Torr
Max. inlet pressure 1.0 atmosphere
Max. outlet pressure 1.1 atmosphere
Inlet connection NW 40
Exhaust connection NW 25
Operating temp. 41 to 104°F
Motor hp 0.8 kW
Operating voltages @ 60 Hz
    Single-phase 110/230 VAC
    Three-phase 200/460 VAC
Operating speed @ 60 Hz 1,725 rpm
Cooling system Air-cooled
Weight 84 lbs
Noise level 68 dB(A)

Specifications

Type Label Description Download

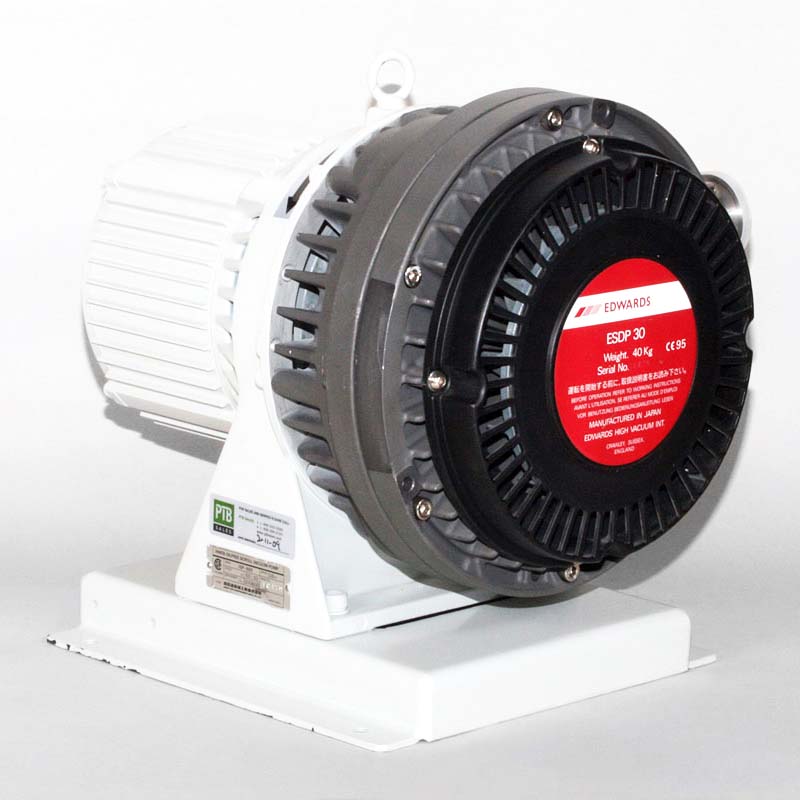

BOC Edwards ESDP12 & ESDP30 - REBUILT Instruction Manual Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

ANEST IWATA ISP-500 Dry Scroll Vacuum Pump - REBUILT

ISP-500A  ISP-500  1-phase
ISP-500A  ISP-500  3-phase
