CTI-Cryogenics AMAT Tower - REBUILT

Call for Price

In stock
SKU
REBUILT_AMAT-Tower
Weight 830 lbs
Power 18 kW

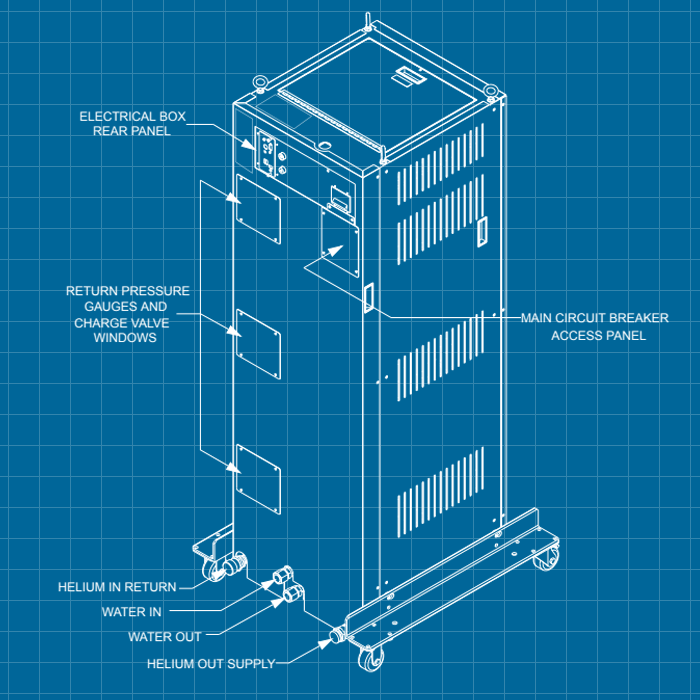

Brooks CTI-Cryogenics AMAT High Capacity Helium Compressor Tower - REBUILT

  • Brooks CTI-Cryogenics compressors, shipped with a one year parts and labor warranty.
  • Φ: A single or three phase compressor is available for the 8200. The larger compressors all are three phase and either low or high voltage (LV/HV) (230 or 460V).
  • New Helium lines and accessories are available.
  • We also offer repair service.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

  LV 2 Modules HV 2 Modules LV 3 Modules HV 3 Modules
Capacity (pump model) 8 On-Board 8F 12 On-Board 8F
Input voltage 180 - 253 VAC 342 - 506 VAC 180 - 253 VAC 342 - 528 VAC
Line frequency 50 / 60 Hz
Phase 3
Nominal input power 12 kW @ 60 Hz
10 kW @ 50 Hz
18 kW @ 60 Hz
15 kW @ 50 Hz
Nominal power factor 0.9 0.85 0.9 0.85
Rated full load / locked rotor current 39 / 170 18 / 83 58 / 255 24 / 125 (480 V 60 Hz, 380 V 50 Hz)
27 / 125 (480 V 50 Hz, 380 V 60 Hz)
Maximum inlet temperature 90°F (32°C)
Minimum inlet temperature 50°F (10°C)
Flow rate 5.50 ± 2.50 gpm (20.8 ± 9.5 lpm) 8.25 ± 3.75 gpm (31.2 ± 14.2 lpm)
Pressure drop (inlet-to-outlet) 10.5 psi (0.72 bar) @ 5.5 gpm (20.8 lpm) 10 psi (0.69 bar) @ 8.25 gpm (31.2 lpm)
Maximum inlet pressure 100 psi (6.9 bars)
Alkalinity 6.0 - 8.0 pH
Calcium carbonate < 75 ppm
Input power cable
(Customer supplied)
Rated 600 VAC
3 conductor cable with ground
Check local electrical codes
Ambient operating temperature range     50 - 100ºF (10 - 38ºC)
Gas supply connector 3/4 in. Aeroquip self-sealing coupling, male thread
Gas return connector 3/4 in. Aeroquip self-sealing coupling, female thread
Adsorber service schedule Replace every 3 years
Weight 640 lbs / 290 kg 650 lbs / 295 kg 820 lbs / 372 kg 830 lbs / 376 kg

Specs

Type Label Description Download
Brooks CTI-Cryogenics High Capacity Helium Compressor - REBUILT Installation, Operation & Maintenance Instructions Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Brooks CTI-Cryogenics AMAT High Capacity Helium Compressor Tower - REBUILT

8128908G001 - 3 modules, low voltage
8128904G003 - 2 modules, low voltage
8128903G003 - 3 modules, low voltage
8128908G002 - 3 modules, high voltage
8128904G004 - 2 modules, high voltage
8128903G004 - 3 modules, high voltage
