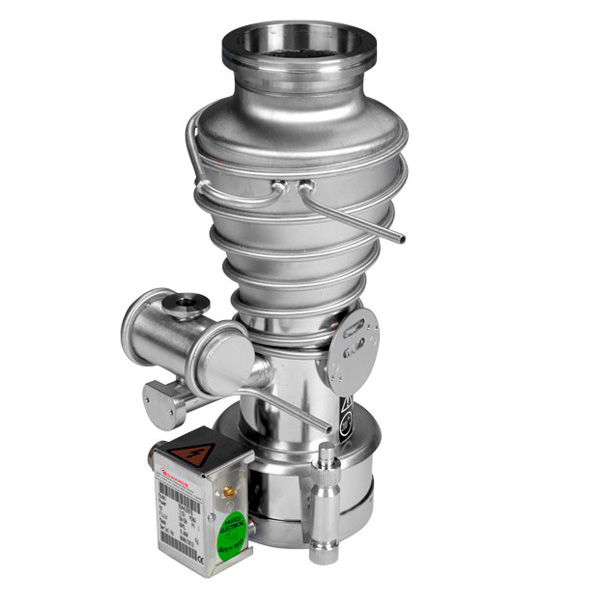

Edwards Diffstak 63/150P - NEW

Call for Price

In stock
SKU
NEW_63/150P
Weight 20 lbs
Pumping Speed 135 l/s-1
Ultimate Pressure 1300 mbar

Edwards Diffstak 63/150P Vapour Diffusion Pump - NEW

The compact water-cooled Diffstak pumps with an integral cooled baffle offer exceptionally clean pumping with very low backstreaming, reduced outgassing, and a reduction in the number of elastomer seals required for installation. The Edwards Diffstak 63 (ISO-63 inlet) design has been proven over many years with thousands of pumps installed. This pump has a pneumatically actuated high vacuum isolation valve and is supplied with: NW-10 elbow, NW-10 centering-ring, NW-10 clamp, water pipe couplings and ferrules, inlet ISO-63 Co-Seal.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Pumping speed
N2 135 l/s
H2 200 l/s
Min. backing pump displacement 5 m3h-1
Recommended backing pumping RV5
Recommended fluid Santovac 5
Fluid charge (dry) 60 ml
Inlet ISO-63
Exhaust NW-10
Cooling water connection 6 mm compression fittings
Heater power 0.45 kW
Minimum cooling-water flow at 20°C 42 l/h
Pneumatic connections 6 mm coupling x ¼” BSP male stud
Pneumatic actuating pressure
Minimum 2.4 bar / 35 psi
Maximum 6.9 bar / 100 psi
Weight 9 kg

Specs

Type Label Description Download
Edwards Diffstak Series - NEW Instruction Manual Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards Diffstak 63/150P Vapour Diffusion Pump - NEW

B34432976 / B344-32-976  110-125V single-phase 50/60Hz
B34432977 / B344-32-977  210-225V 1-phase 50/60Hz
B34432978 / B344-32-978  230-250V 1-phase 50/60Hz
