Edwards iH1000 - REBUILT
Call for Price
| Weight | 948 lbs |
|---|---|
| Pumping Speed | 950 m3/h |
| Ultimate Pressure | 3 x 10-2 mbar |

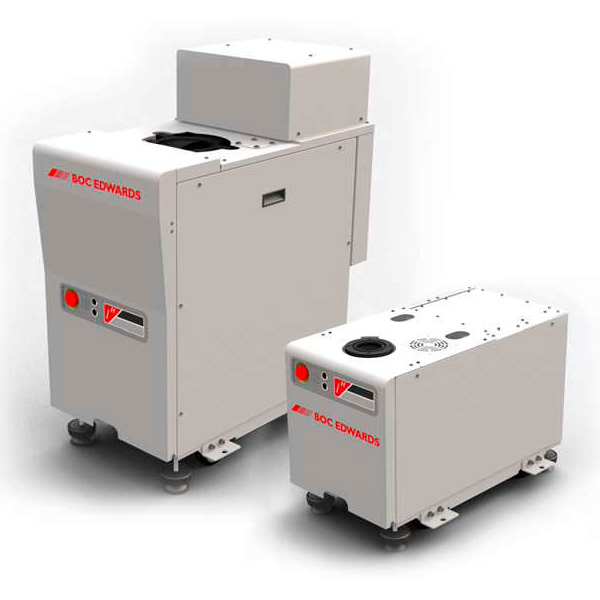

Edwards iH1000 Semiconductor Dry Vacuum Pump - REBUILT
Edwards advanced semiconductor vacuum pumps have been field-proven to perform to the highest operating standards. Reliability and high performance are achieved by extending service life, improving uptime and increasing productivity, while minimizing footprint and cost of ownership. The iH Series offers high reliability for difficult processes, such as PECVD and LPCVD, where particulate, condensable and corrosive by-products are present.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Peak speed | 950 m3h-1 |
| 560 cfm | |
| 16,670 l/min-1 | |
| Ultimate vacuum | 2 x 10-3 mbar |
| 2 x 10-1 Pa | |
| Typical shaft seal nitrogen flow | 4 slm |
| Inlet connection | ISO100 |
| Outlet connection | NW40 |
| Typical cooling water flow at 15 psi pressure drop | 240 l/h-1 |
| 4 l/min-1 | |
| Weight | 430 kg |
| Power input at ultimate | 3.8 kW |
| Rated motor power | 6.1 kW |
| Oil capacity | 1.48 l |
All figures are typical without gas ballast.
| Type | Label | Description | Download |
|---|---|---|---|
|
BOC Edwards iH Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards iH1000 Semiconductor Dry Vacuum Pump - REBUILT A59030908 / A590-30-908 iH1000 460V 60Hz three-phase A59030945 / A590-30-945 iH1000 200/208V 50/60Hz 3-phase A59030946 / A590-30-946 iH1000 380/415V 50Hz 3-phase A59030957 / A590-30-957 iH1000 230V 60Hz 3-phase A53383945 / A533-83-945 iH1000 208V 60Hz A53387945 / A533-87-945 iH1000 Enhanced 208V 60Hz A53342945 / A533-42-945 iH1000 HEAC 208V 60Hz A53352945 / A533-52-945 iH1000 New Look 208V 60Hz NEW LK A59030945 / A590-30-945 iH1000 Mark V 208V 60Hz MK5 A53383946 / A533-83-946 iH1000 380/415V 50Hz A53387946 / A533-87-946 iH1000 Enhanced 380/415V 50Hz A53342946 / A533-42-946 iH1000 HEAC 380/415V 50Hz A53352946 / A533-52-946 iH1000 New Look 380/415V 50Hz NEW LK A59030946 / A590-30-946 iH1000 Mark V 380/415V 50Hz MK5
