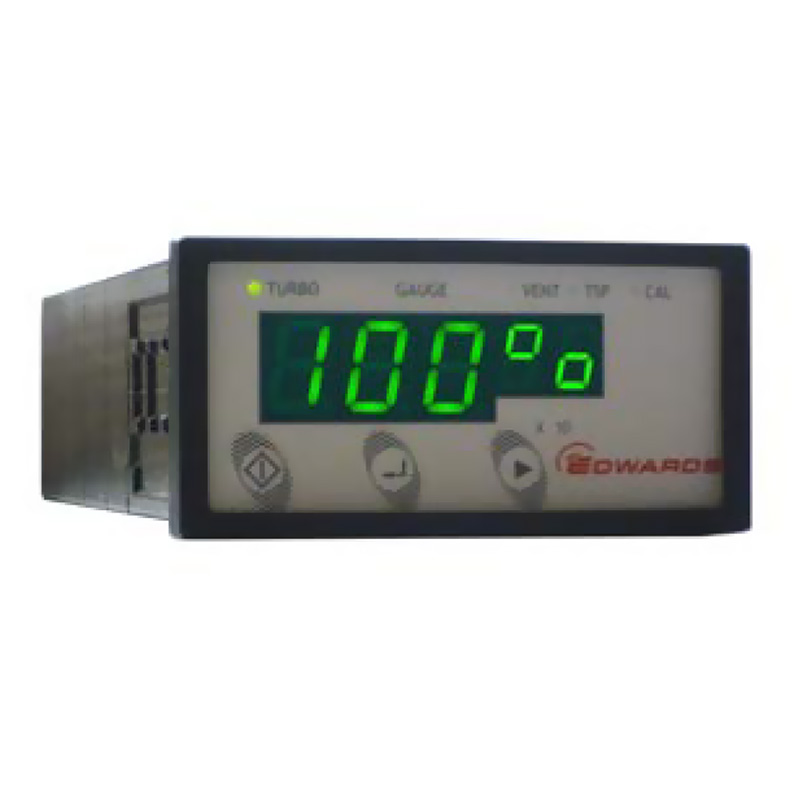

Edwards TIC - NEW
Call for Price
| Height | 110 mm |
|---|---|
| Width | 105 mm |
| Length | 245 mm |
| Weight | 10 lbs |
Edwards TIC Turbomolecular Vacuum Pump Controller, 100/200W RS232 - NEW
A compact turbo controller with a large clear graphical display, an intuitive user interface and serial communications providing full remote control and data logging functions via a new Windows™ based PC program. The controller automatically recognizes and supports one 24 V turbomolecular pump from the EXT / nEXT range. Cooling and vent valve support is provided directly from the controller. Mains backing pumps (up to nXDS20i / RV12) may be controlled via an optional relay box. 2 different power variants are available, 100W or 200W which determines the ramp speed of the turbo pump. In addition 200W models have the ability to power a 24Vdc backing pump such as our XDD1 or nXDS through a 15-way D. Turbo and instrument models add the ability to control up to 3 of our range of Active gauges (excluding IGC & Barocels).
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pump / TIC power | 100W / 200W |
| EXT75DX | Fast / Fast |
| nEXT 80W | Slow / Slow |
| nEXT 160W | Slow / Fast |
| Mains input | |
| Electrical supply | 90 to 264 VAC 47 to 63 Hz |
| Power consumption | 215 VA |
| Peak inrush current | 10.3 A @ 110 VAC / 23 A @ 230 VAC |
| Earth stud | M4 |
| Auxiliary terminals | |
| Air cooling fan | 24 VDC 3 W max, ACX70, ACX75 & ACX250H |
| Vent valve | 24 VDC 2 W max, TAV5 & TAV6 |
| H2 | 6 mbar x l/s |
| Electronics housing | 110 mm high x 105 mm wide x 245 mm deep |
| Front panel | 106 mm wide x 128 mm high |
| Weight | 3.5 kg |
| Operating temp | +0 to +40°C |
| Storage temp | -30 to +70°C |
| Max ambient operating humidity | 90% RH non-condensing at 40°C |
| Max operating altitude | 3,000 m |
| Electronic design | EN 61010-1 |
| Electromagnetic compatibility | EN 61326 Industrial Location, Class B Emissions |
| Enclosure rating | IP20 |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards TIC Turbomolecular Vacuum Pump Controller, 100/200W RS232 - NEW D39711000 / D397-11-000 TIC 100W RS232 D39712000 / D397-12-000 TIC 200W RS232 D39721000 / D397-21-000 TIC 100W RS232 D39722000 / D397-22-000 TIC 200W RS232
