Leybold LEYVAC LV 140 C - REBUILT
Call for Price
| Weight | 1,190 lbs |
|---|---|
| Motor Power | 20 hp |
| Pumping Speed | 650 m3/h |
| Ultimate Pressure | 5 x 10-3 mbar |

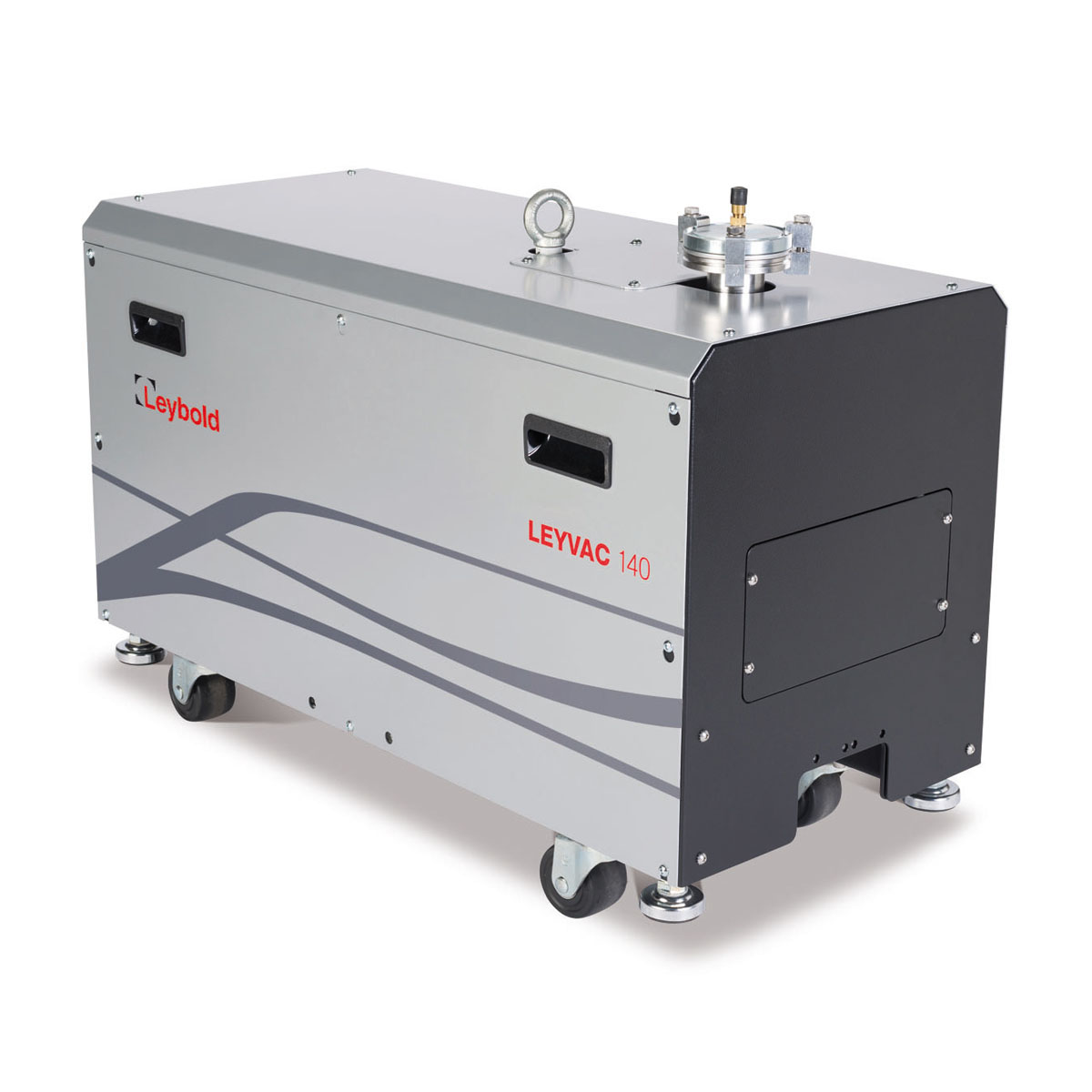

Leybold LEYVAC LV 140 C Semiconductor Dry Vacuum Pump - REBUILT
Members of the LEYVAC vacuum pump family are of the dry compressing single stage screw vacuum pump type. All LV models are positive displacement rotary pumps. During operating, the pump rotors are not in contact to each other; therefore, there is no need of grease for lubricating or for sealing the vacuum chamber. Thus, concerns in respect to oil dust backflows are not applicable.
The pumps are water cooled and they are lubricated with PFPE (LVO 410) or synthetic oil (LVO 210). Their purge gas system is equipped with a 24V-operated magnetic valve for both rotor purge and shaft seal purge, with an additional manually operated valve fitted to the rotor purge line. There are three different model types to be distinguished: The uncovered LEYVACs, the C-type pumps with a cover installed, and the CC-type, equipped with covers and an additional controller box.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold Leyvac LV Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold LEYVAC LV 140 C Semiconductor Dry Vacuum Pump - REBUILT 115140V15 LV 140 115140V30 LV 140 C 115140V40 LV 140 C (LVO 210) 115140V35 LV 140 CC
-
