Pfeiffer DCU - NEW

Call for Price

In stock
SKU
NEW_DCU

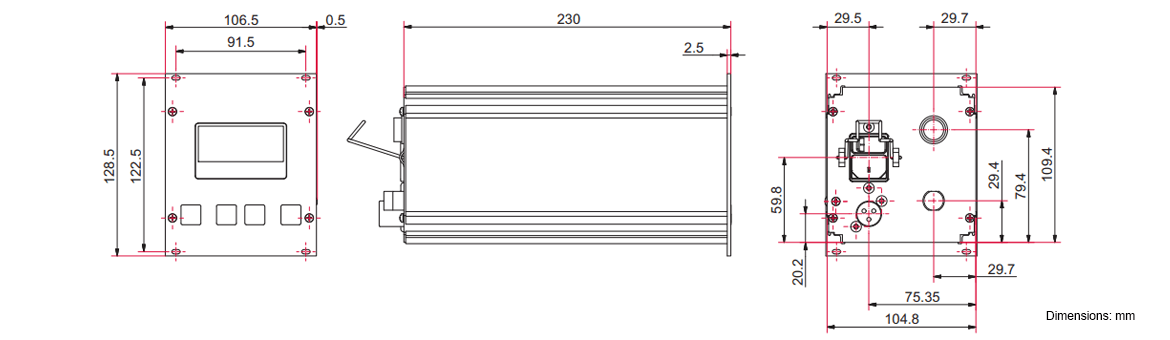

Height 128.5 mm
Width 106 mm
Length 230 mm
Weight 5 lbs

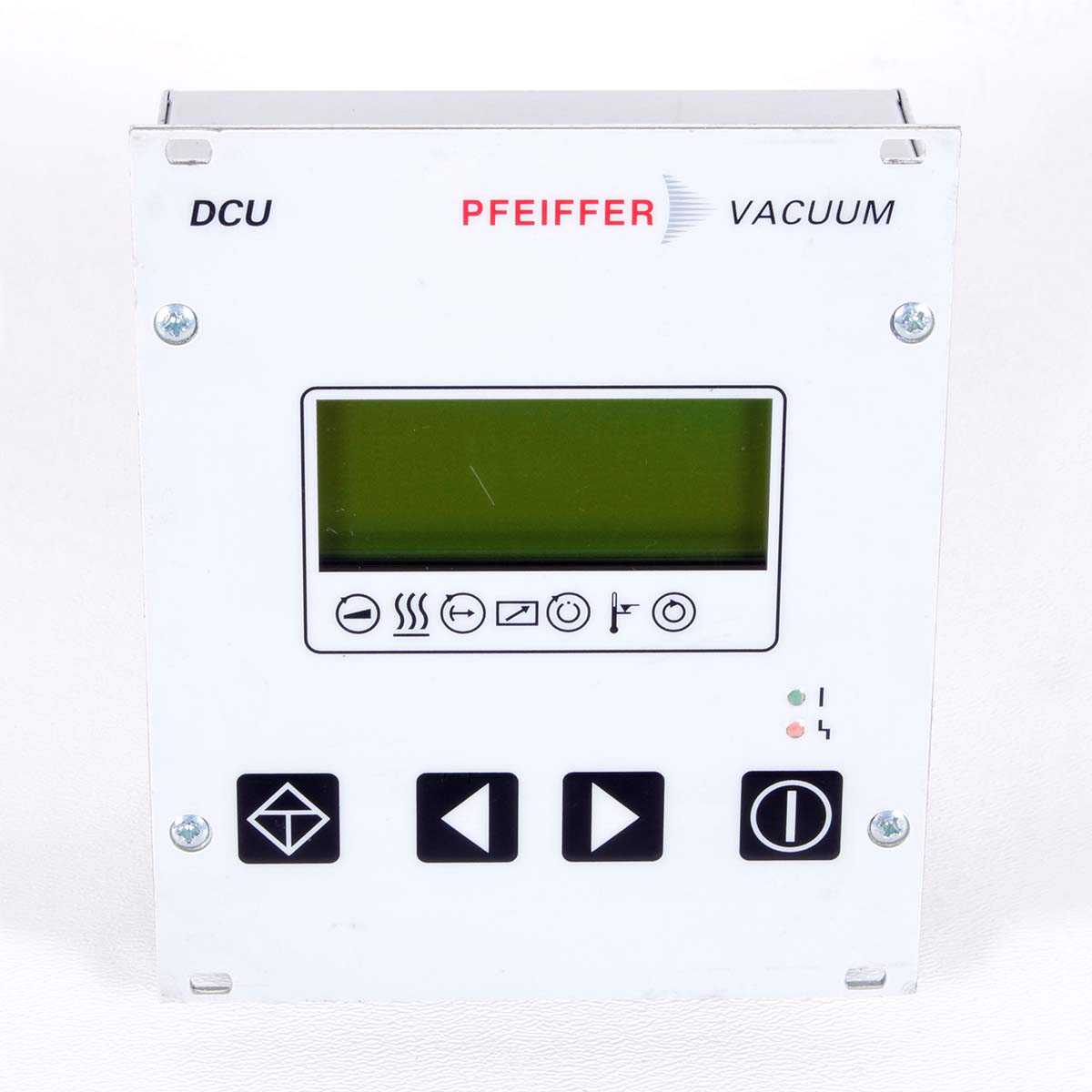

Pfeiffer Vacuum DCU Turbomolecular Pump Controllers - NEW

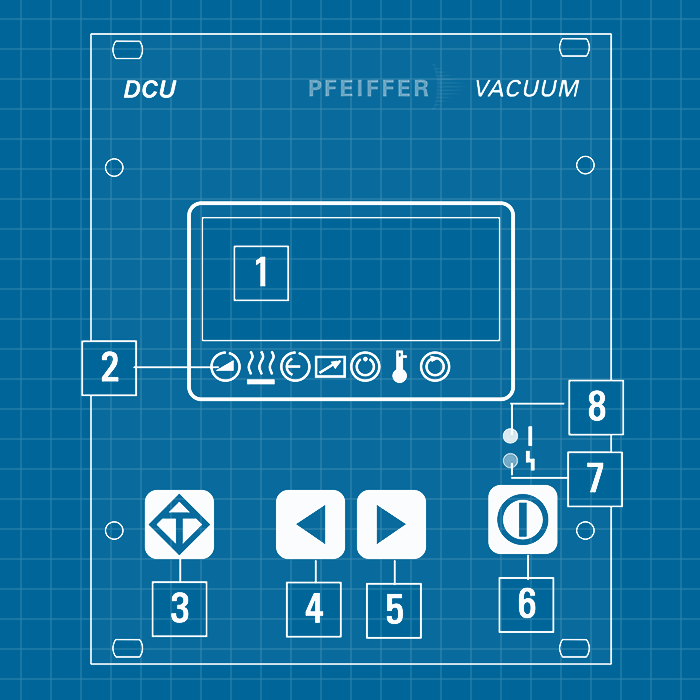

The Display Control Unit DCU is an operating unit for Pfeiffer drive units. It enables control over all the main parameters of the unit. Additionally, the connection of a vacuum gauge is possible.

Display Control Unit (DCU) with integrated power supply for electrical supply, control and operation of respective Pfeiffer vacuum products. 3HU 19" rack module with easy-to-read, backlit display. In compliance with international standards and specifications.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specifications DCU 002 DCU 110 DCU 180 DCU 310 DCU 400
Ambient temperature 5-50°C / 41-122°F / 278-323 K
Mains requirement: Frequency (range) - 50/60 Hz
Mains requirement: power consumption 5 VA 130 VA 210 VA 340 VA 450 VA
Mains requirement: Voltage (range) - 115-230 (-20-+15%) VAC
Output current - 4.6 A 7.5 A 12.5 A 8.4 A
Output voltage - 24 (±2%) VDC 48 (±2%) VDC
Power consumption max. 5 VA 130 VA 210 VA 340 VA 450 VA
Power supply - DCU 110 DCU 180 DCU 310 DCU 400
Protection category IP 20
Weight 0.4 kg / 0.88 lb 1.2 kg / 2.65 lb 1.7 kg / 3.75 lb 1.85 kg / 4.08 lb 2.3 kg / 5.07 lb

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer Vacuum DCU Turbomolecular Pump Controllers - NEW

PM061348AT / PM 061 348 AT  DCU 002  display control unit
PMC01820 / PM C01 820  DCU 110  w/ integrated power supply
PMC01821 / PM C01 821  DCU 180  w/ integrated power supply
PMC01822 / PM C01 822  DCU 310  w/ integrated power supply
PMC01823 / PM C01 823  DCU 400  w/ integrated power supply
