Pfeiffer TSU 521 - REBUILT
Call for Price
In stock
SKU
REBUILT_TSU521
| Weight | 95 lbs |
|---|---|
| Pumping Speed | 210 l/s |
| Ultimate Pressure | 1 x 10-7 mbar |

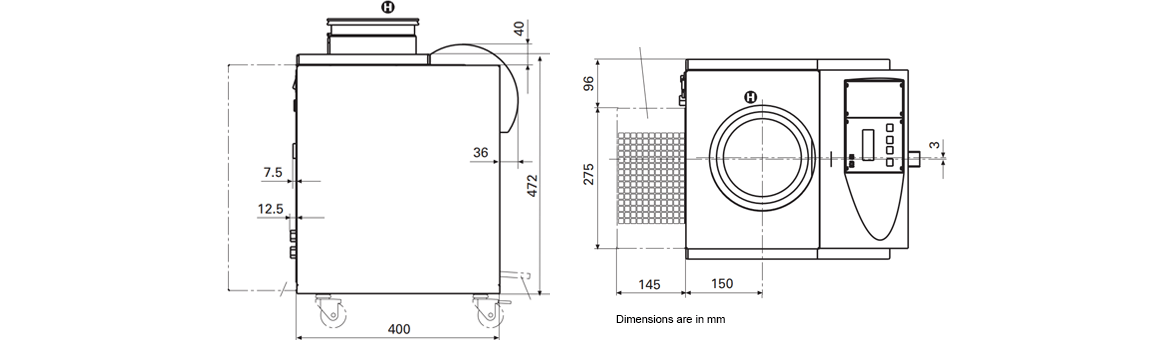

Pfeiffer Vacuum TSU 521 Turbomolecular Pump System
The plug and play type TurboCubeTM pumping stations are fully automatically operating pumping units. If the turbo pump is supplied separately, the venting valve and the cooling unit must be connected to the pump, then the pump is to be connected to the pumping station.
The integrated display and operating unit DCU 001 serves to control and monitor the pumping station and works in conjunction with the electronic drive unit TC 600.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | DN 100 ISO-K | DN 160 ISO-K | DN 100 CF-F | DN 160 CF-F | ||
|---|---|---|---|---|---|---|
| Pumping speed (N2) | 300 l/s | 510 l/s | 300 l/s | 510 l/s | ||
| Final pressure w/ | ||||||
| Rotary vane pumps | < 5 x 10-10 mbar | |||||
| Diaphragm pumps | < 1 x 10-8 mbar | |||||
| Pumping speed, backing pump mains freq. at 50 Hz | ||||||
| MVP 055-3 | 3.3 m3/h | |||||
| DUO 2.5 | 2.5 m3/h | |||||
| Mains connection - power cons. w/ | ||||||
| MVP 055-3 | 500 VA | |||||
| DUO 2.5 | 430 VA | |||||
| Weight w/ | ||||||
| MVP 055-3 | 56 kg | |||||
| DUO 2.5 | 51 kg | |||||
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|

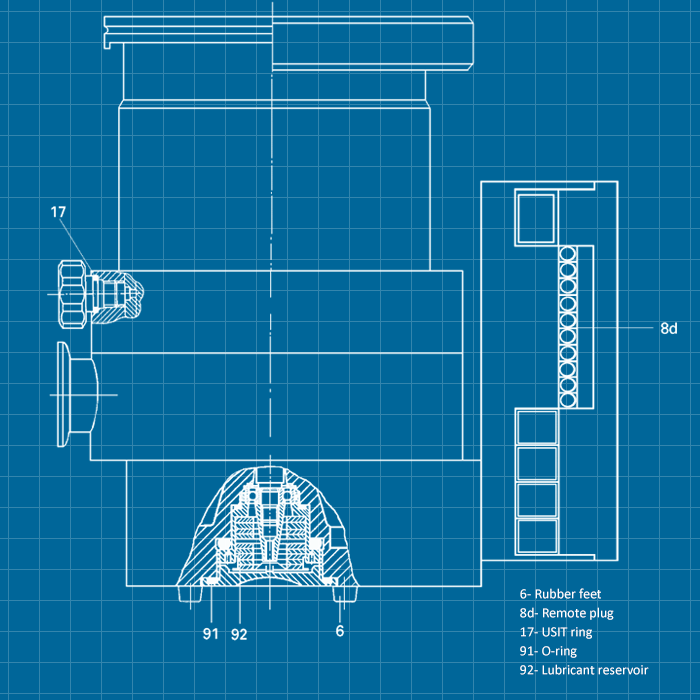

Pfeiffer TMH/TMU 521 P - REBUILT | Operating Instructions | Download |
|
|
Pfeiffer TSH/TSU 071 - 521 - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
